78566 - Toro 48" & 52" E-Z Vac DFS Collection System (SN: 405700000 - 411399999) Bagger Mount Assembly 2 Parts Diagram

48" & 52" E-Z Vac DFS Collection System

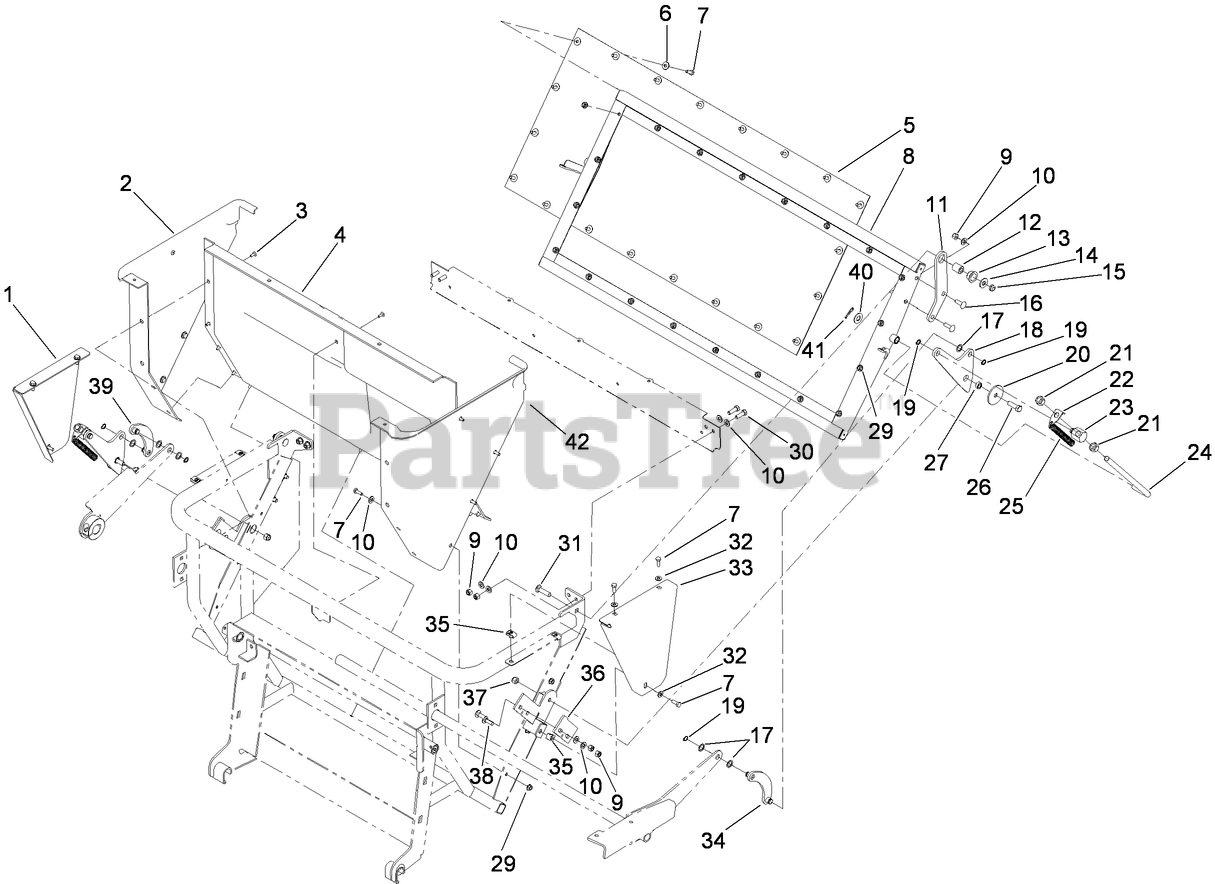

Bagger Mount Assembly 2 Parts Diagram

  • Title

1

Toro 103-4819-03

GUARD-RH

$51.99

$

Usually ships in 3-6 days

0

2

Toro 103-7829

PANEL-BAGGER, RH

$208.99

$

Usually ships in 3-6 days

0

3

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

4

Toro 103-5102

PANEL-BAGGER

$272.99

$

Usually ships in 3-6 days

0

5

Toro 103-4828

SCREEN-DOOR

$

$

Not available

6

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 103-4406-03

DOOR-FRAME

$622.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 103-4820-03

PLATE-HINGE

$68.99

$

Usually ships in 3-6 days

0

12

Toro 103-6294

PIN-PIVOT, HINGE

$28.99

$

Usually ships in 3-6 days

0

13

Toro 103-6295

BEARING

$17.99

$

Usually ships in 3-6 days

0

14

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 4 left!

0

16

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

17

Toro 94-8196

WASHER-NYLON

$7.49

$

Usually ships in 3-6 days

0

18

Toro 103-4424

ARM-LINKAGE, DOOR

$37.99

$

Usually ships in 3-6 days

0

19

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

20

Toro 103-4431

WASHER

$5.99

$

Usually ships in 3-6 days

0

21

Toro 3219-5

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

22

Toro 103-4835

ANCHOR-SPRING

$34.99

$

Usually ships in 3-6 days

0

23

Toro 103-4848

TRUNNION-LINK

$43.99

$

Usually ships in 3-6 days

0

24

Toro 103-4822

LINK-DOOR

$49.99

$

Usually ships in 3-6 days

0

25

Toro 103-4813

SPRING

$7.49

$

In Stock, only 2 left!

0

26

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

27

Toro 103-4415

BEARING-LINKAGE, PIVOT

$28.99

$

Usually ships in 3-6 days

0

29

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

30

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

32

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 103-4437-03

GUARD-LH

$51.99

$

Usually ships in 3-6 days

0

34

Toro 103-5112

LINK-LH

$68.99

$

Usually ships in 3-6 days

0

35

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

36

Toro 103-4408-03

STOP-LINKAGE

$21.99

$

Usually ships in 3-6 days

0

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

38

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

39

Toro 103-5111

LINK-RH

$68.99

$

Usually ships in 3-6 days

0

40

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

42

Toro 103-7828

PANEL-BAGGER, LH

$208.99

$

Usually ships in 3-6 days

0
