78576 - Toro 60" E-Z Vac Blower and Drive Kit (SN: 400000000 - 999999999) Blower and Drive Assembly Parts Diagram

60" E-Z Vac Blower and Drive Kit

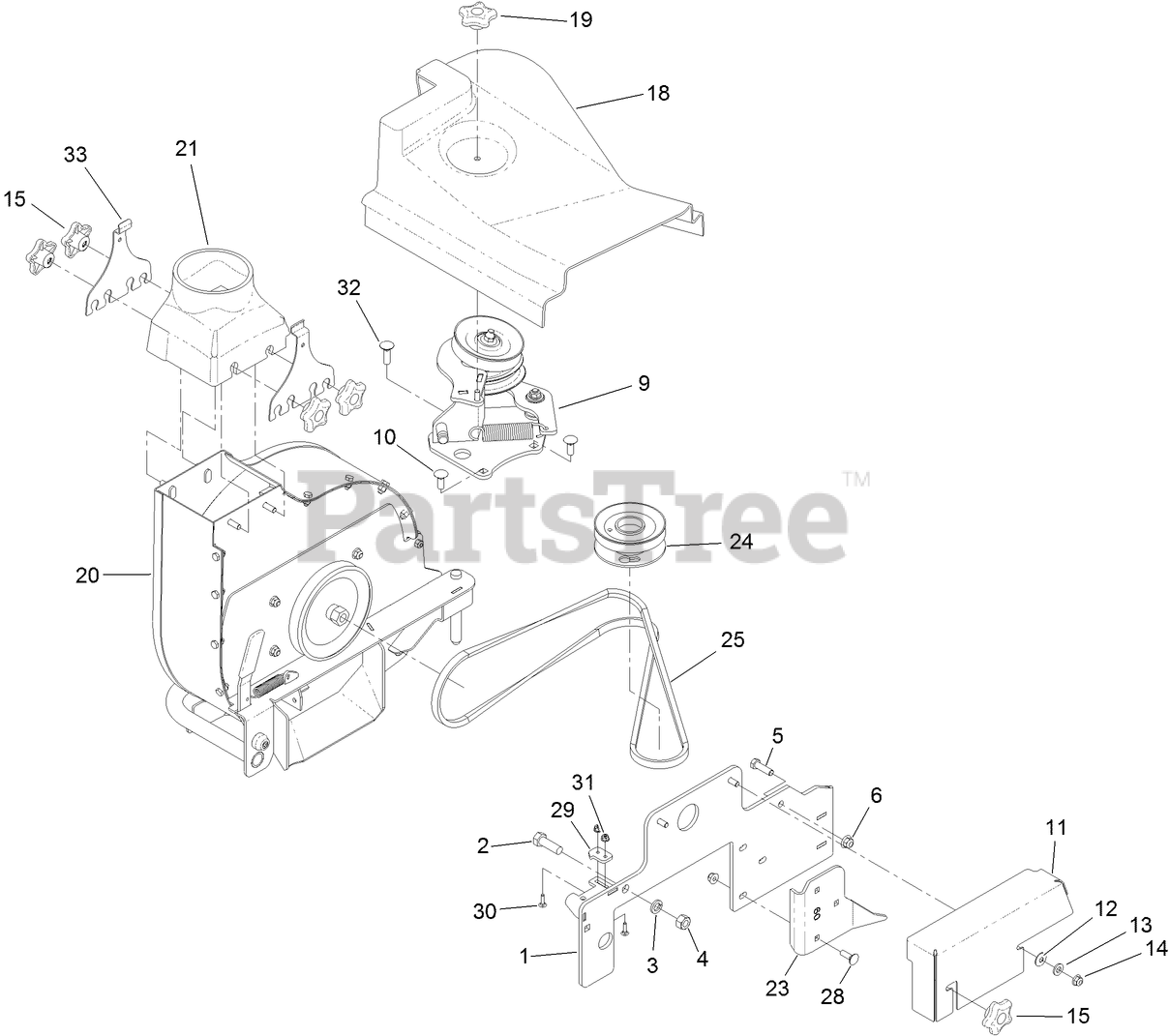

Blower and Drive Assembly Parts Diagram

  • Title

1

Toro 136-0569-03

MOUNT-DECK, BLOWER

$462.99

$

Usually ships in 3-6 days

0

2

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

3

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

4

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 136-0595

IDLER ASM

$844.99

$

Usually ships in 3-6 days

0

10

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 133-8735-03

GUARD-BELT, BLOWER

$40.99

$

Usually ships in 3-6 days

0

12

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 16

0

13

Toro 62-1230

WASHER-RUBBER

$7.49

$

In Stock, Qty 5

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

18

Toro 136-0503

COVER-BELT

$231.99

$

Usually ships in 3-6 days

0

19

Toro 106-4161

KNOB-HANDLE

$5.99

$

In Stock, Qty 20+

0

20

Toro 136-0570

BLOWER ASM

$2821.99

$

Usually ships in 3-6 days

0

21

Toro 133-8682

TRANSITION-BLOWER

$231.99

$

Usually ships in 3-6 days

0

23

Toro 136-4082-03

BAFFLE

$62.99

$

Usually ships in 3-6 days

0

24

Toro 112-8669-03

PULLEY-BLOWER

$155.99

$

Usually ships in 3-6 days

0

25

Toro 136-4108

BELT-V

$85.99

$

Usually ships in 3-6 days

0

28

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

29

Toro 136-4118

PLATE-LATCH

$23.99

$

In Stock, only 2 left!

0

30

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

31

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

32

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

33

Toro 136-5688-03

CLAMP-HOSE

$19.99

$

Usually ships in 3-6 days

0
