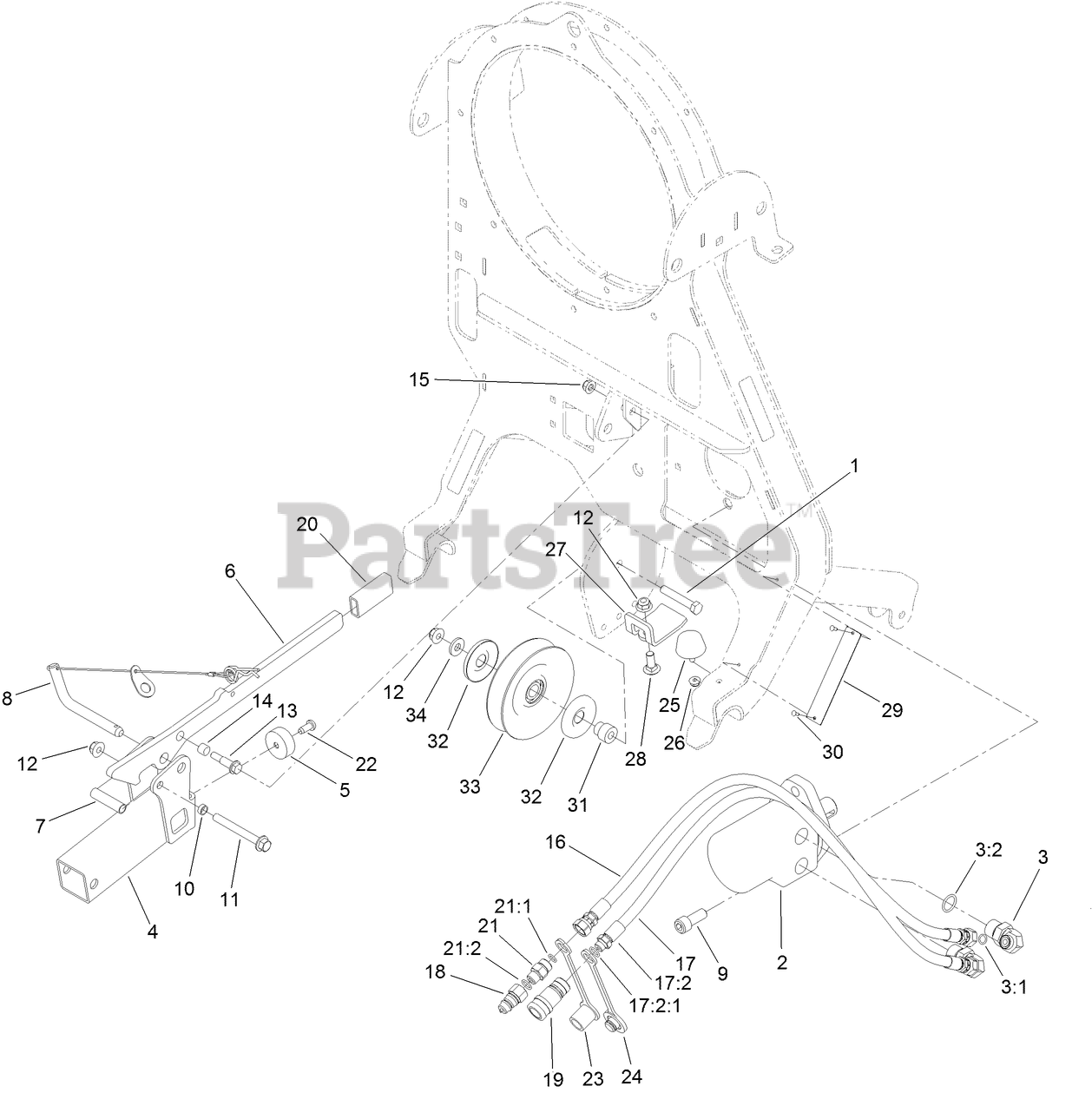

78593 - Toro Blower Kit for GrandStand Multi Force Mower (SN: 402860000 - 403399999) Blower Hitch, Motor and Pulley Assembly Parts Diagram

Blower Kit for GrandStand Multi Force Mower

Blower Hitch, Motor and Pulley Assembly Parts Diagram

  • Title

1

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

2

Toro 99-0156

HYD MOTOR ASM

$1221.99

$

Usually ships in 3-6 days

0

3

Toro 340-130

FITTING-ELBOW 90

$132.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

3:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

4

Toro 137-6385-03

BLOWER HITCH ASM

$103.99

$

Usually ships in 3-6 days

0

5

Toro 133-0308

BUMPER-RUBBER

$7.99

$

Usually ships in 3-6 days

0

6

Toro 137-6386-03

HANDLE-LATCH

$27.99

$

Usually ships in 3-6 days

0

7

Toro 93-2464

SPACER-ROLLER

$12.99

$

Usually ships in 3-6 days

0

8

Toro 119-8970

PIN-ROPS W/ LANYARD

$36.99

$

Usually ships in 3-6 days

0

9

Toro 3274-89

SCREW-HSH

$10.99

$

Usually ships in 3-6 days

0

10

Toro 76-9100

SPACER

$5.49

$

Usually ships in 3-6 days

0

11

Toro 3234-41

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 116-8607

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

14

Toro 131-3951

BUSHING

$2.99

$

Usually ships in 3-6 days

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 137-6396

HOSE ASM

$83.99

$

Usually ships in 3-6 days

0

17

Toro 137-6398

HOSE ASM

$86.99

$

Usually ships in 3-6 days

0

17:2

FITTING-STRAIGHT, RIGID

Note: Not serviced separately

$

$

Not available

17:2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

18

Toro 63-1240

NIPPLE-DISCONNECT, QUICK

$26.99

$

Usually ships in 3-6 days

0

19

Toro 63-1220

COUPLER-DISCONNECT, QUICK

$95.99

$

Usually ships in 3-6 days

0

20

Toro 116-4312

GRIP-FLAT

$3.99

$

Usually ships in 3-6 days

0

21

Toro 114-7783

FITTING-STRAIGHT

$80.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

21:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

22

Toro 613381

SCREW-BHTF

$5.99

$

In Stock, Qty 18

0

23

Toro 353-985

CAP-DUST

$15.99

$

Usually ships in 3-6 days

0

24

Toro 353-984

PLUG-DUST

$14.99

$

Usually ships in 3-6 days

0

25

Toro 131-8834

BUMPER

$12.99

$

Usually ships in 3-6 days

0

26

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 137-6357-01

BRACKET-STOP

$21.99

$

Usually ships in 3-6 days

0

28

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

29

Toro 137-9517

PLATE-SERIAL

$

$

Currently unavailable

30

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

31

Toro 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

32

Toro 126-9195

SHIELD-GUARD, DUST

$3.49

$

In Stock, Qty 8

0

33

Toro 1-603805

PULLEY-IDLER

$67.99

$

In Stock, only 3 left!

0

34

Toro 9202414

WASHER-SPACER

$5.99

$

Usually ships in 3-6 days

0
