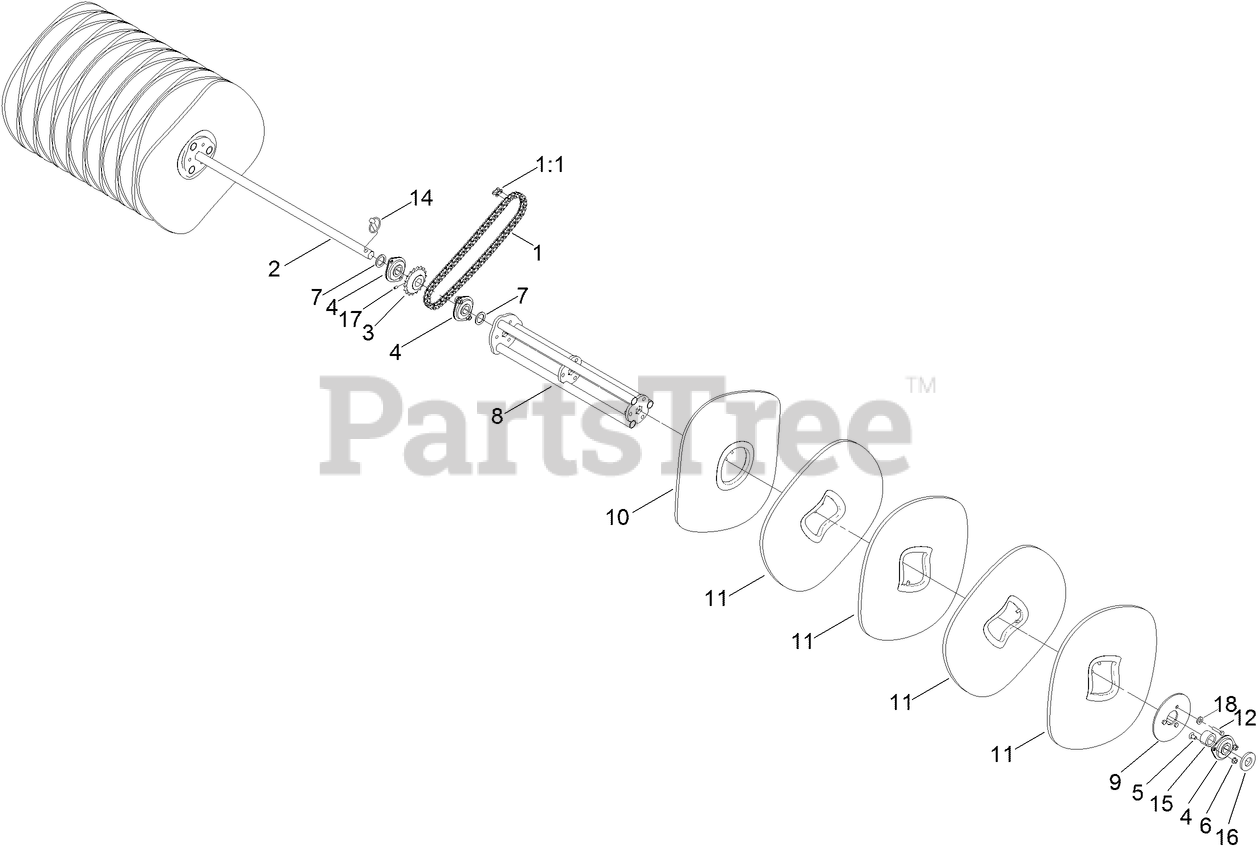

78596 - Toro Broom for GrandStand Multi Force Mower (SN: 400000000 - 999999999) Bristle Assembly Parts Diagram

Broom for GrandStand Multi Force Mower

Bristle Assembly Parts Diagram

  • Title

1

Toro 133-8736

CHAIN-ROLLER

$68.99

$

Usually ships in 3-6 days

0

1:1

Toro ST34104

LINK-CONNECTING, NO. 50

$7.99

$

Usually ships in 3-6 days

0

2

Toro 137-0748

HEX SHAFT

$244.99

$

Usually ships in 3-6 days

0

3

Toro 136-1216

SPROCKET-CHAIN

$168.99

$

Usually ships in 3-6 days

0

4

Toro 137-0741

BEARING-HEX

$86.99

$

Usually ships in 3-6 days

0

5

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0

6

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

7

Toro 137-0787

WASHER-THRUST

$18.99

$

Usually ships in 3-6 days

0

8

Toro 137-0753

BRISTLE-CARRIER

$372.99

$

Usually ships in 3-6 days

0

9

Toro 132-9460-03

PLATE-BRISTLE, CARRIER

$23.99

$

Usually ships in 3-6 days

0

10

Toro 136-8359

BRISTLE-CONE, HYBRID

$53.99

$

Usually ships in 3-6 days

0

11

Toro 132-9440

WAFER-BROOM

$36.99

$

Usually ships in 3-6 days

0

12

Toro 137-3993

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

14

Toro 283-71

PIN-LYNCH

$6.49

$

In Stock, only 4 left!

0

15

Toro 93-1167

SPACER-CASTOR

$40.99

$

Usually ships in 3-6 days

0

16

Toro 137-0788

WASHER

$27.99

$

Usually ships in 3-6 days

0

17

Toro 121-5989

SCREW-SET, HSH

$3.49

$

In Stock, only 2 left!

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
