78598 - Toro 48" Snow Thrower for GrandStand Multi Force Mower (SN: 400000000 - 999999999) Auger Assembly Parts Diagram

48" Snow Thrower for GrandStand Multi Force Mower

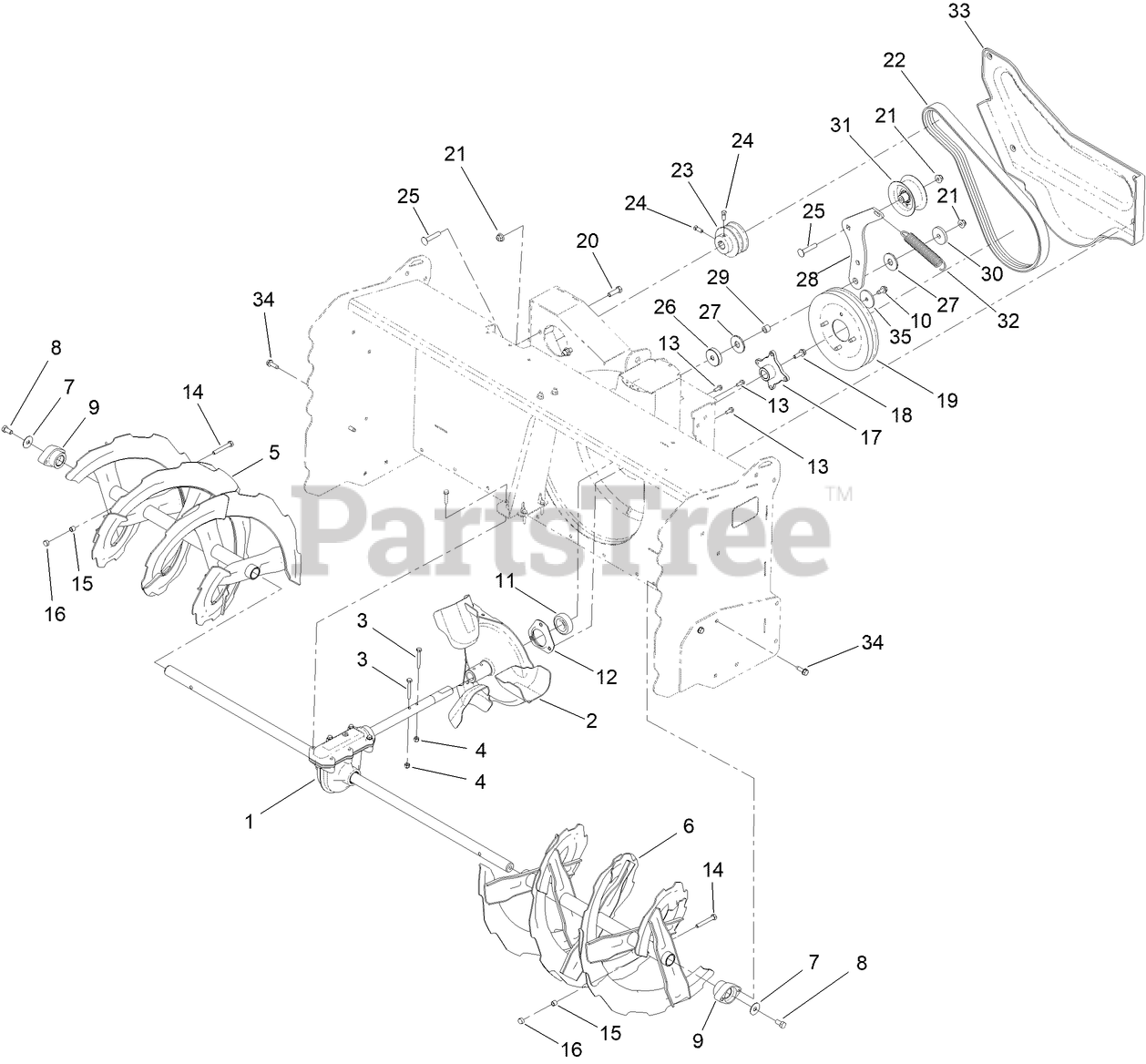

Auger Assembly Parts Diagram

  • Title

1

Toro 140-5439

AUGER GEARCASE ASM, 48N

$778.99

$

Usually ships in 3-6 days

0

2

Toro 136-6570-03

IMPELLER

$159.99

$

Usually ships in 3-6 days

0

3

Toro 137-3032

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

4

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

5

Toro 140-5410-03

AUGER, GS-48 RH [BLACK]

$437.99

$

Usually ships in 3-6 days

0

6

Toro 140-5420-03

AUGER, GS-48 LH [BLACK]

$437.99

$

Usually ships in 3-6 days

0

7

Toro 3-0750

WASHER

$8.99

$

In Stock, only 4 left!

0

8

Toro 137-3066

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

9

Toro 106-4570

BEARING-AUGER

$30.99

$

In Stock, only 4 left!

0

10

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 136-6571

BEARING-BALL

$13.99

$

In Stock, only 2 left!

0

12

Toro 136-6573

RETAINER-BEARING

$6.49

$

Usually ships in 3-6 days

0

13

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

14

Toro 120-9738

SCREW-HH

$1.99

$

In Stock, Qty 18

0

15

Toro 136-7148

SPACER-GROMMET

$1.49

$

In Stock, Qty 6

0

16

Toro 119-4038

NUT-HEX

$3.49

$

In Stock, only 3 left!

0

17

Toro 136-6558

HUB-PULLEY

$14.99

$

Usually ships in 3-6 days

0

18

Toro 115-5142

SCREW-HHF

$10.99

$

In Stock, only 2 left!

0

19

Toro 136-6557

PULLEY-IMPELLER, DOUBLE SHEAVE

$49.99

$

Usually ships in 3-6 days

0

20

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 136-6504

BELT-V

$76.99

$

In Stock, only 2 left!

0

23

Toro 139-7591

PULLEY

$128.99

$

Usually ships in 3-6 days

0

24

Toro 1-803050

SCREW-SET

$2.99

$

In Stock, only 2 left!

0

25

Toro 117-9971

BOLT-CARRIAGE

$3.99

$

Usually ships in 3-6 days

0

26

Toro 140-5478

WASHER

$16.99

$

Usually ships in 3-6 days

0

27

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

28

Toro 140-5476

ARM-IDLER

$20.99

$

Usually ships in 3-6 days

0

29

Toro 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 20+

0

30

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 20+

0

31

Toro 136-6531

PULLEY, IDLER

$38.99

$

Usually ships in 3-6 days

0

32

Toro 140-7708

SPRING

$34.99

$

Usually ships in 3-6 days

0

33

Toro 140-7702

COVER-BELT

$157.99

$

Usually ships in 3-6 days

0

34

Toro 701243

SCREW-THD ROLL, HWH

$3.49

$

In Stock, Qty 20+

0

35

Toro 137-3121

WASHER-PLAIN

$8.49

$

Usually ships in 3-6 days

0
