78598 - Toro 48" Snow Thrower for GrandStand Multi Force Mower (SN: 400000000 - 999999999) Hydraulic Hose Assembly Parts Diagram

48" Snow Thrower for GrandStand Multi Force Mower

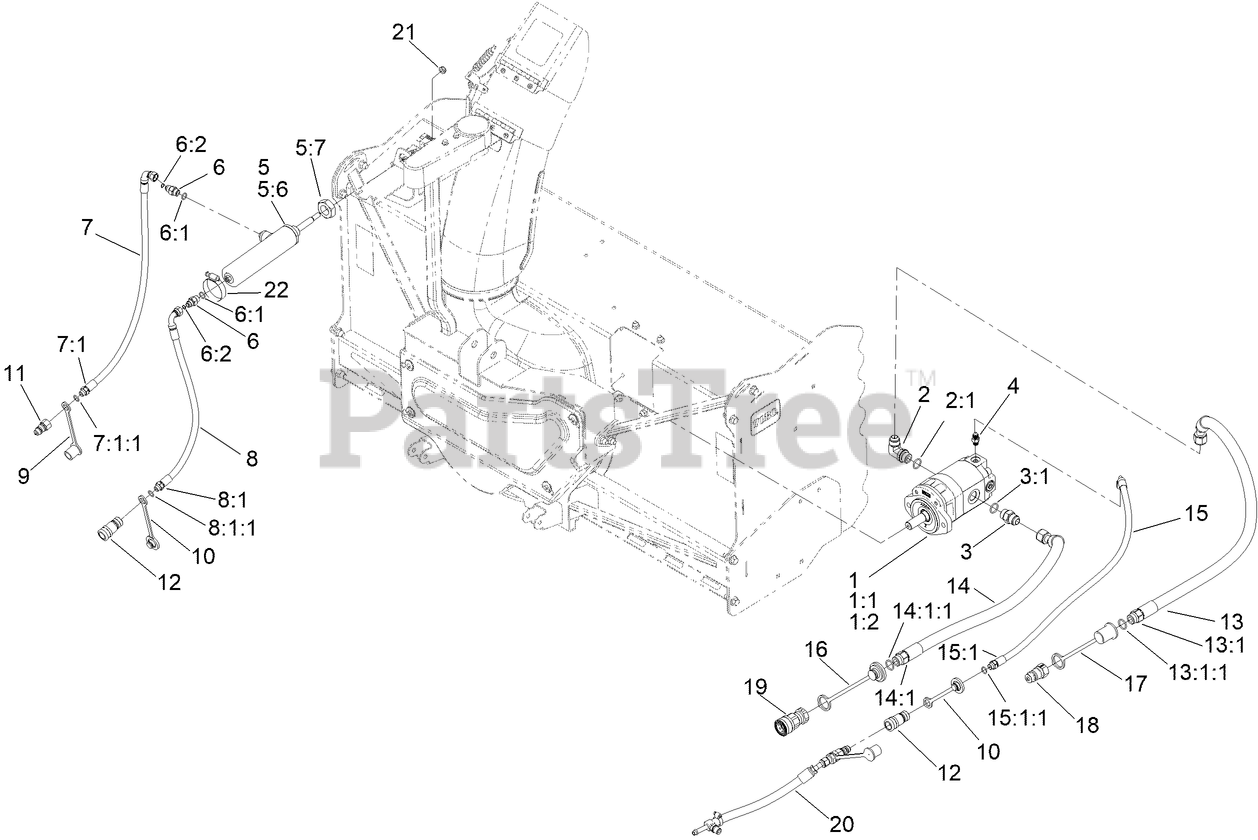

Hydraulic Hose Assembly Parts Diagram

  • Title

1

Toro 139-7577

MOTOR-HYDRAULIC

$1487.99

$

Usually ships in 3-6 days

0

1:1

Toro 140-9502

MOTOR SEAL KIT
(Superseded to 145-2792)

$85.99

$

Usually ships in 3-6 days

0

1:2

Toro 140-9503

RELIEF VALVE- 3335PSI

$262.99

$

Usually ships in 3-6 days

0

2

Toro 353-370

FITTING-ELBOW, 90 DEG

$87.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

3

Toro 353-385

FITTING-STRAIGHT

$28.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

4

Toro 353-545

FITTING-STRAIGHT

$28.99

$

Usually ships in 3-6 days

0

5

Toro 139-7647

CYLINDER

$369.99

$

Usually ships in 3-6 days

0

5:6

Toro 140-9408

KIT-SEAL, CYLINDER

$129.99

$

Usually ships in 3-6 days

0

5:7

Toro 140-9418

NUT-HEX JAM

$24.99

$

Usually ships in 3-6 days

0

5:9

Toro 117-8315

ORIFICE (.025 INCH)

Note: Not illustrated

$

$

Currently unavailable

6

Toro 103-2156

FITTING-STRAIGHT

$46.99

$

In Stock, only 3 left!

0

6:1

Toro 1-603921

See Supercession: 237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

6:2

Toro 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

7

Toro 140-5460

HOSE-HYD

$79.99

$

Usually ships in 3-6 days

0

7:1

FITTING-STRAIGHT, RIGID

Note: Not serviced separately

$

$

Not available

7:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

8

Toro 140-5461

HOSE-HYD

$78.99

$

Usually ships in 3-6 days

0

8:1

FITTING-STRAIGHT, RIGID

Note: Not serviced separately

$

$

Not available

8:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

9

Toro 353-985

CAP-DUST

$15.99

$

Usually ships in 3-6 days

0

10

Toro 353-984

PLUG-DUST

$14.99

$

Usually ships in 3-6 days

0

11

Toro 63-1240

NIPPLE-DISCONNECT, QUICK

$26.99

$

Usually ships in 3-6 days

0

12

Toro 63-1220

COUPLER-DISCONNECT, QUICK

$95.99

$

Usually ships in 3-6 days

0

13

Toro 140-4267

HOSE-HYD

$138.99

$

Usually ships in 3-6 days

0

13:1

FITTING-STRAIGHT

Note: Not serviced separately

$

$

Not available

13:1:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

14

Toro 140-4266

HOSE-HYD

$139.99

$

Usually ships in 3-6 days

0

14:1

FITTING-STRAIGHT

Note: Not serviced separately

$

$

Not available

14:1:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

15

Toro 140-4268

HOSE-HYD

$60.99

$

Usually ships in 3-6 days

0

15:1

FITTING-STRAIGHT, RIGID

Note: Not serviced separately

$

$

Not available

15:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

16

Toro T56152150

PLUG-QUICK CONNECT

$18.99

$

Usually ships in 3-6 days

0

17

Toro T56152152

CAP-CONNECT, QUICK

$15.99

$

Usually ships in 3-6 days

0

18

Toro 136-5711

DISCONNECT-QUICK , MALE

$43.99

$

Usually ships in 3-6 days

0

19

Toro 144-1598

QUICK COUPLER-FEMALE

$140.99

$

Usually ships in 3-6 days

0

20

Toro 136-7436

CASE DRAIN KIT

$166.99

$

Usually ships in 3-6 days

0

21

Toro 3296-5

NUT-HEX

$3.99

$

In Stock, Qty 15

0

22

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0
