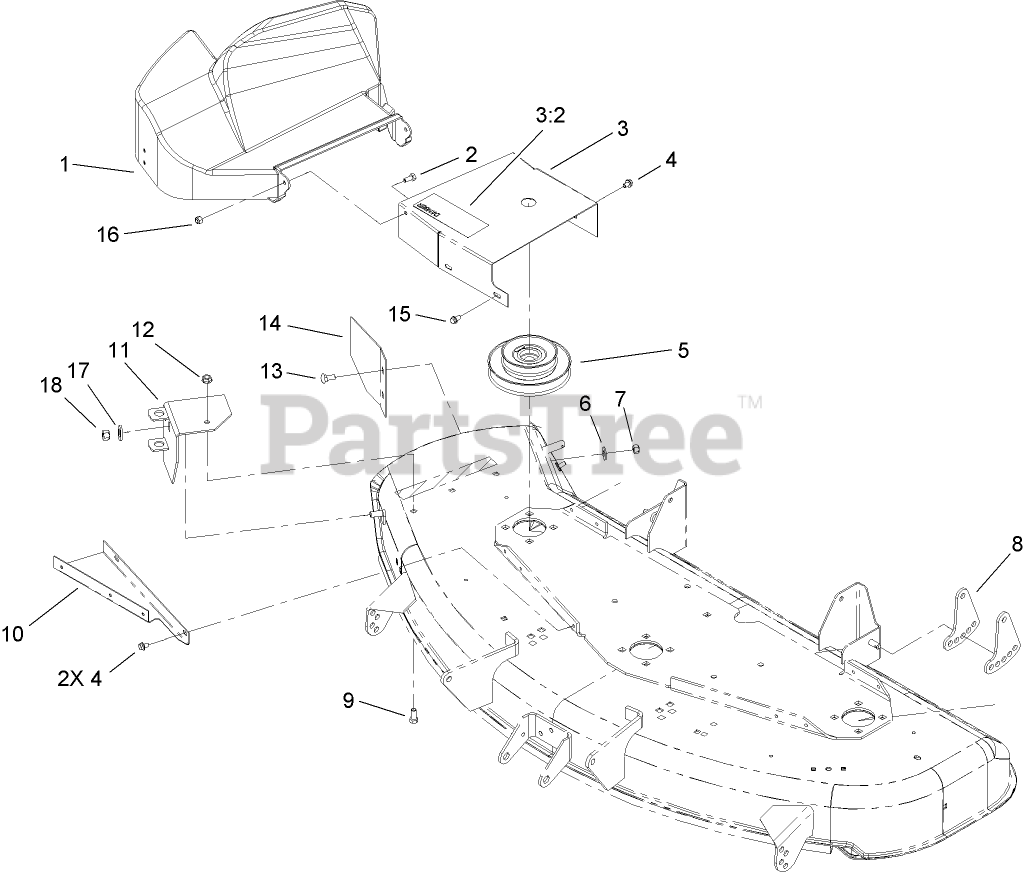

79166 - Toro 48" Vac-Bagger (SN: 250000001 - 250999999) (2005) Blower Deck Mounting Assembly Parts Diagram

48" Vac-Bagger

Blower Deck Mounting Assembly Parts Diagram

  • Title

1

Toro 108-9583

BELT SHIELD ASM

$

$

Not available

2

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 108-9580

COVER ASM

$

$

Not available

3:2

Toro 93-7317

DECAL-DANGER

$

$

Not available

4

Toro 3234-26

SCREW-HHF

$3.99

$

In Stock, Qty 9

0

5

Toro 108-7180

See Supercession: 110-6502
(Superseded to 110-6502)

$197.99

$

Usually ships in 3-6 days

0

6

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 93-9910-03

LINK-ADJUSTING, HOC

$

$

Not available

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 106-8279-03

ADAPTER-SHIELD

$

$

Not available

11

Toro 79-7000-03

PIVOT BRACKET ASM

$135.99

$

Usually ships in 3-6 days

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

14

Toro 108-8563-03

BAFFLE

$

$

Not available

15

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 9152366

NUT-HJ

$3.99

$

Usually ships in 3-6 days

0
