79203 - Toro 42"/48" Vac-Bagger for 260 Series Tractors (SN: 059000001 - 059999999) (1995) Shield Assembly (42" Cutting Unit) Parts Diagram

42"/48" Vac-Bagger for 260 Series Tractors

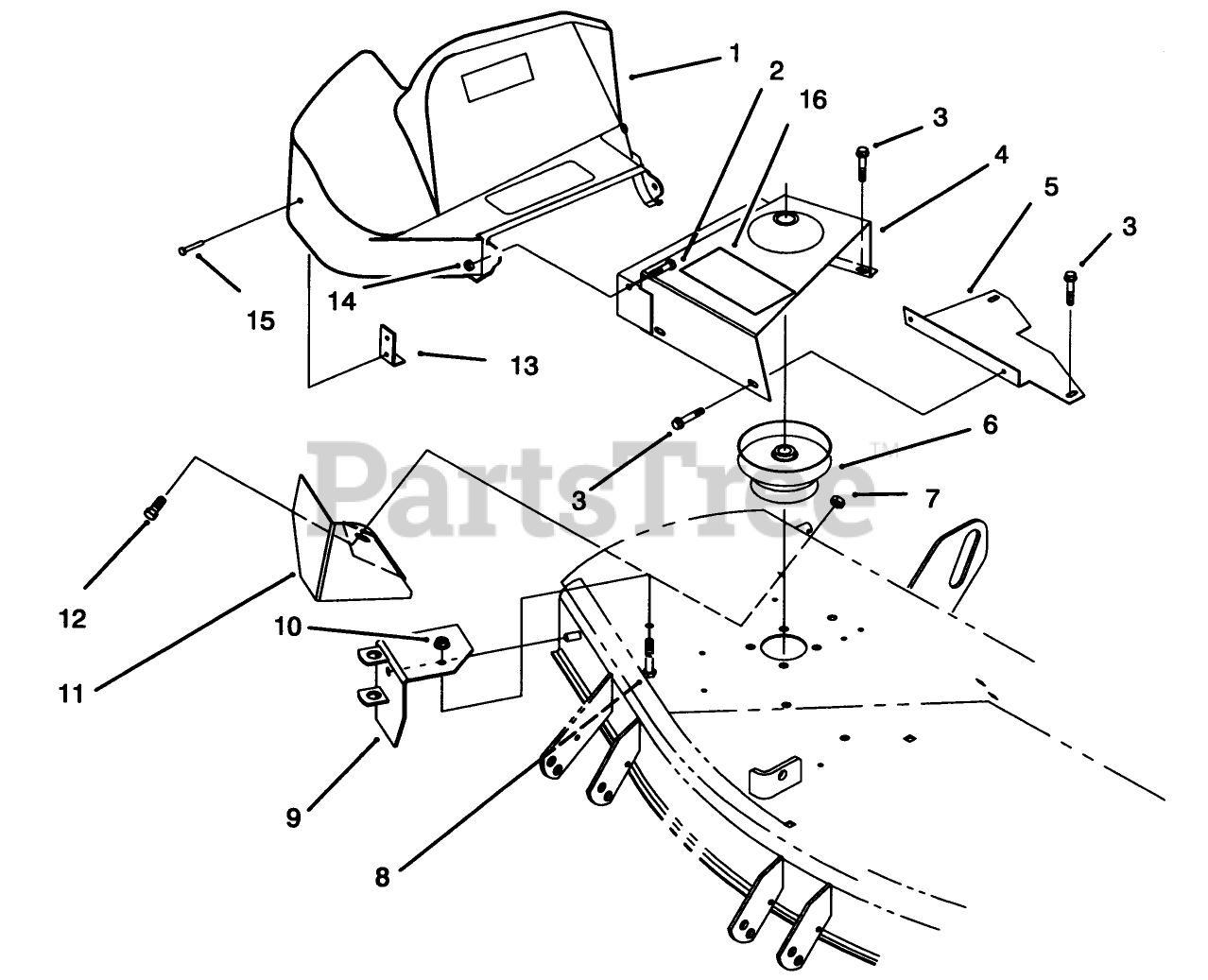

Shield Assembly (42" Cutting Unit) Parts Diagram

  • Title

1

Toro 86-9300

SHIELD-BELT

$

$

Not available

2

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

4

Toro 88-9580

SHIELD/DECAL ASM

$

$

Not available

5

Toro 79-7120

See Supercession: 79-7120-03
(Superseded to 79-7120-03)

$40.99

$

Usually ships in 3-6 days

0

6

Toro 79-7140

PULLEY

$

$

Not available

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 79-7000

See Supercession: 79-7000-03
(Superseded to 79-7000-03)

$135.99

$

Usually ships in 3-6 days

0

10

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 79-7300

See Supercession: 79-7300-03
(Superseded to 79-7300-03)

$87.99

$

Usually ships in 3-6 days

0

12

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$

$

Not available

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 79-0470

RIVET-POP

$

$

Not available

16

Toro 92-7108

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0
