79203 - Toro 42"/48" Vac-Bagger for 260 Series Tractors (SN: 059000001 - 059999999) (1995) Shield Assembly (48" Cutting Unit) Parts Diagram

42"/48" Vac-Bagger for 260 Series Tractors

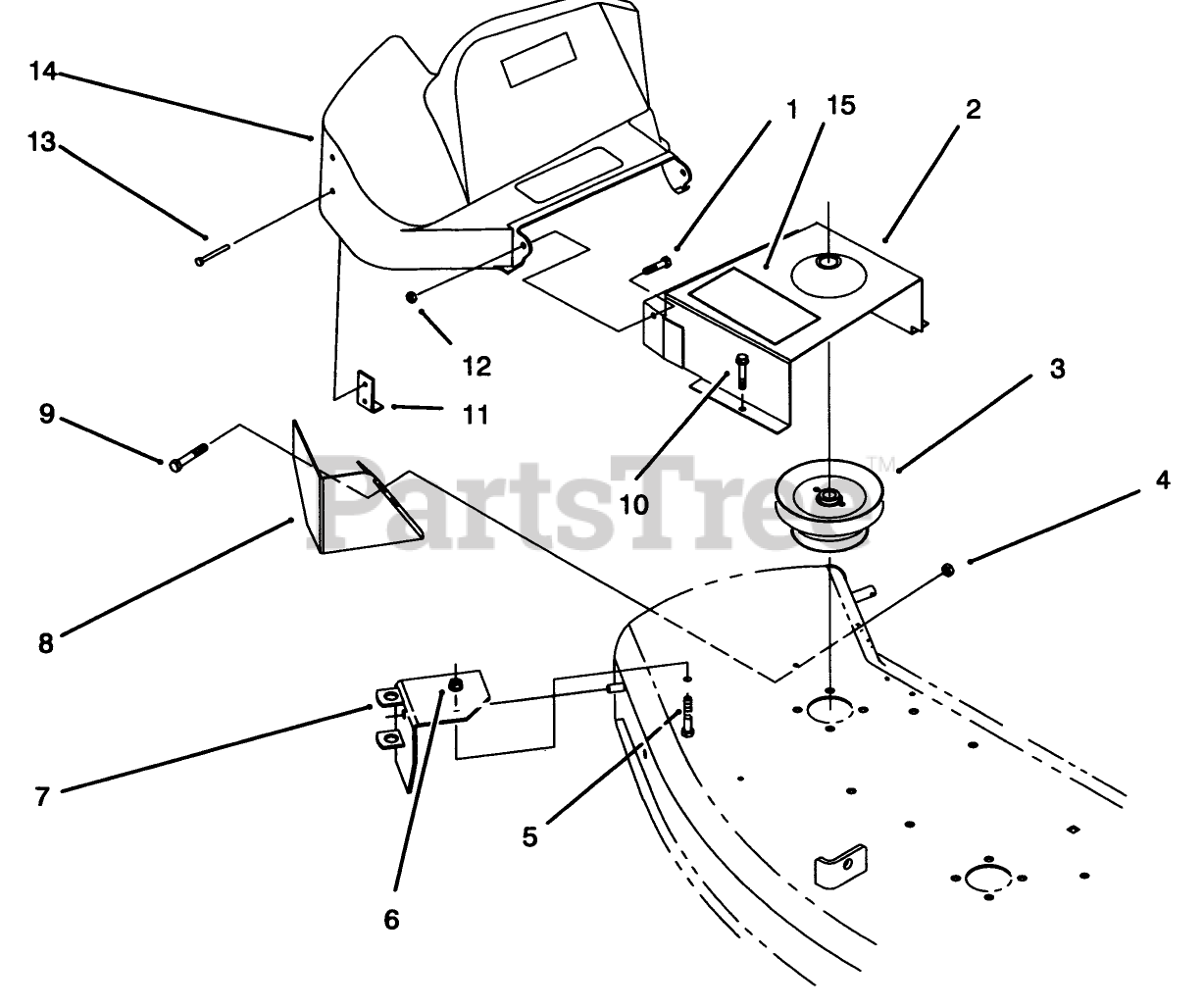

Shield Assembly (48" Cutting Unit) Parts Diagram

  • Title

1

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 88-9590

SHIELD/DECAL ASM

$

$

Not available

3

Toro 79-7320

PULLEY

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Toro 79-7000

See Supercession: 79-7000-03
(Superseded to 79-7000-03)

$135.99

$

Usually ships in 3-6 days

0

8

Toro 79-7290

See Supercession: 79-7290-03
(Superseded to 79-7290-03)

$

$

Not available

9

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

10

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

11

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$

$

Not available

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 79-0470

RIVET-POP

$

$

Not available

14

Toro 86-9300

SHIELD-BELT

$

$

Not available

15

Toro 92-7108

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0
