79216 - Toro 48" Snow Blade for TimeCutter Z Mowers (SN: 230000001 - 230999999) (2003) Blade Assembly Parts Diagram

48" Snow Blade for TimeCutter Z Mowers

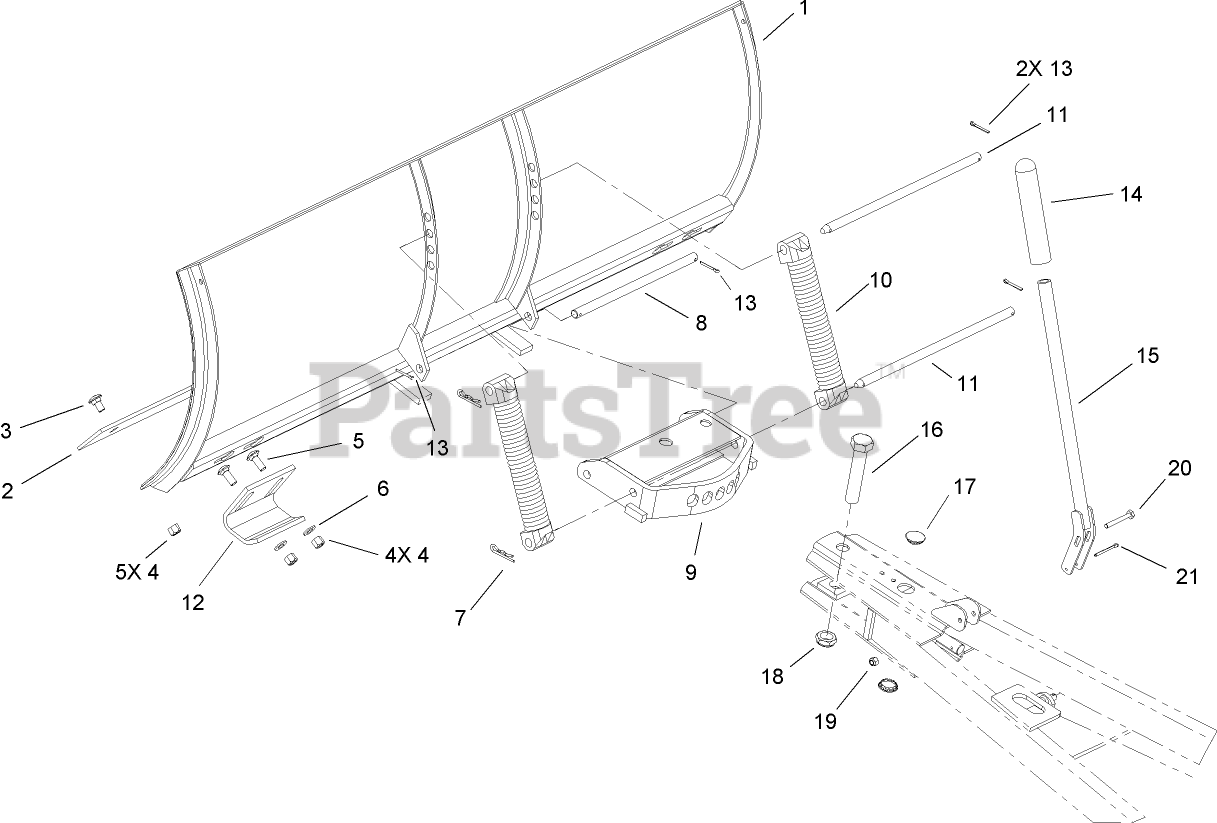

Blade Assembly Parts Diagram

  • Title

1

Toro 78-1330-03

BLADE

$

$

Not available

2

Toro 93-1612-03

PLATE-EDGE, BLADE

$58.99

$

In Stock, only 2 left!

0

3

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 13

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0

8

Toro 4564

ROD-LOWER

$

$

Not available

9

Toro 104-8053-03

QUADRANT

$

$

Not available

10

Toro 105-1386-03

LUG / SPRING ASM

$145.99

$

Usually ships in 3-6 days

0

11

Toro 5120

ROD-PIVOT, BLADE

$

$

Not available

12

Toro 117424-03

SKID

$

$

Not available

13

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

14

Toro 105-1904

GRIP-HANDLE

$10.99

$

Usually ships in 3-6 days

0

15

Toro 99-7787-03

LEVER-INDEX

$

$

Not available

16

Toro 3216-7

SCREW-HH

$23.99

$

Usually ships in 3-6 days

0

17

Toro 4944

PLUG

$9.99

$

Usually ships in 3-6 days

0

18

Toro 9156404

See Supercession: 3296-15
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 6

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 10

0

21

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0
