79252 - Toro 48" Snow Blade for 260 Series Tractors (SN: 059000001 - 059999999) (1995) Snow Blade And Front Mounting Hitch Parts Diagram

48" Snow Blade for 260 Series Tractors

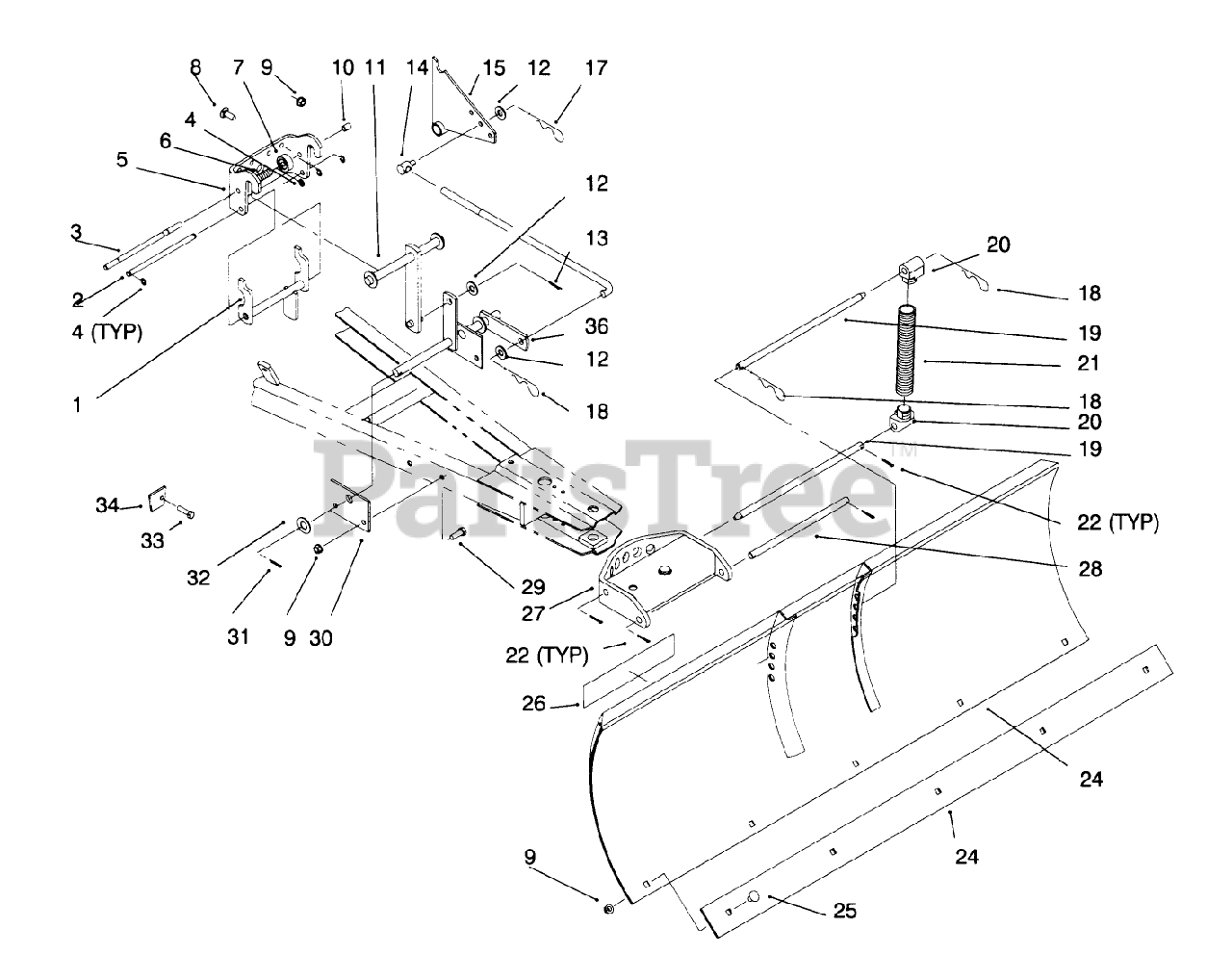

Snow Blade And Front Mounting Hitch Parts Diagram

  • Title

1

Toro 93-1613

LATCH

$

$

Not available

2

Toro 101750

ROD-LATCH PIVOT

$

$

Not available

3

Toro 101751

ROD-LOCK

$

$

Not available

4

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 13

0

5

Toro 78-1720-01

HITCH-FRONT

$125.99

$

Usually ships in 3-6 days

0

6

Toro 8616

SPRING

$4.49

$

Usually ships in 3-6 days

0

7

Toro 101707

LOCK

$

$

Not available

8

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 105316

CAP-ROD, PLUNGER

$1.99

$

In Stock, Qty 20+

0

11

Toro 79-5430-01

See Supercession: 79-5430-03
(Superseded to 79-5430-03)

$

$

Not available

12

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3272-7

PIN-COTTER
(Superseded to 702947)

$65.99

$

Usually ships in 3-6 days

0

14

Toro 7736

STUD-TRUNION

$

$

Not available

15

Toro 79-5510-01

See Supercession: 105-1384-03
(Superseded to 105-1384-03)

$144.99

$

Usually ships in 3-6 days

0

16

Toro 79-5530

ROD

$

$

Not available

17

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

18

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0

19

Toro 5120

ROD-PIVOT, BLADE

$

$

Not available

20

Toro 88-2080-01

See Supercession: 105-1386-03
(Superseded to 105-1386-03)

$145.99

$

Usually ships in 3-6 days

0

21

Toro 93-1611-01

See Supercession: 105-1386-03
(Superseded to 105-1386-03)

$145.99

$

Usually ships in 3-6 days

0

22

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

23

Toro 78-1330-01

BLADE ASM

$510.99

$

Usually ships in 3-6 days

0

24

Toro 93-1612-01

See Supercession: 93-1612-03
(Superseded to 93-1612-03)

$58.99

$

In Stock, only 2 left!

0

25

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 13

0

26

Toro 92-8748

See Supercession: 106-5839
(Superseded to 106-5839)

$

$

Not available

27

Toro 78-8760-01

QUADRANT

$

$

Not available

28

Toro 4564

ROD-LOWER

$

$

Not available

29

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Toro 79-5490-0

Plate

$

$

Currently unavailable

31

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

32

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

33

Toro 9267204

See Supercession: 9264964
(Superseded to 9264964)

$1.99

$

In Stock, only 4 left!

0

34

Toro 79-4770-01

STOP

$

$

Not available

36

Toro 79-5460-01

ARM-LIFT

$

$

Not available
