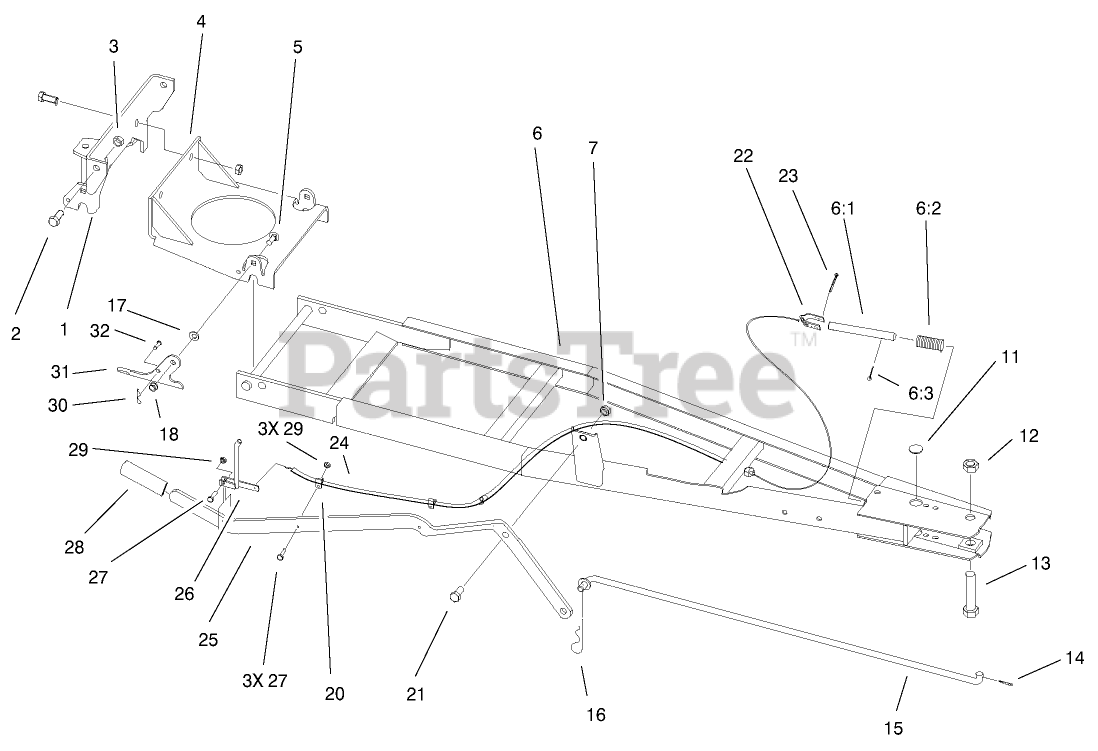

79253 - Toro 48" Snow Blade for 260 Series Tractors (SN: 210000001 - 210999999) (2001) Frame Assembly Parts Diagram

48" Snow Blade for 260 Series Tractors

Frame Assembly Parts Diagram

  • Title

1

Toro 93-1389-03

BRACKET-MOUNTING

$

$

Not available

2

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 100-8707-03

BRACKET-BLADE MOUNT ASM

$

$

Not available

5

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

6

Toro 104-1290-01

See Supercession: 104-1290-03
(Superseded to 104-1290-03)

$959.99

$

Usually ships in 3-6 days

0

6:1

Toro 88-6520

PIN-INDEX

$115.99

$

Usually ships in 3-6 days

0

6:2

Toro 2354

SPRING-COMPRESSION

$

$

Not available

6:3

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

7

Toro 3218-18

NUT-JAM

$0.99

$

Usually ships in 3-6 days

0

11

Toro 4944

PLUG

$9.99

$

Usually ships in 3-6 days

0

12

Toro 9156404

See Supercession: 3296-15
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 6

0

13

Toro 3216-7

SCREW-HH

$23.99

$

Usually ships in 3-6 days

0

14

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

15

Toro 79-4790

ROD

$178.99

$

Usually ships in 3-6 days

0

16

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 2412-32

R-CLAMP

$10.99

$

Usually ships in 3-6 days

0

21

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

22

Toro 94-7782

BRACKET - CABLE END

$

$

Not available

23

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

24

Toro 104-1289

CABLE-TENSION

$

$

Not available

25

Toro 104-5073-01

See Supercession: 104-5073-03
(Superseded to 104-5073-03)

$

$

Not available

26

Toro 92-7036

LEVER-INDEX

$

$

Not available

27

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

28

Toro 5359

GRIP

$

$

Not available

29

Toro 32146-17

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

30

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 5

0

31

Toro 104657

PLATE-LATCHING

$

$

Not available

32

Toro 9321204

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0
