79262 - Toro 42" Snow Thrower for 260 Series Tractors (SN: 059000001 - 059999999) (1995) Auger Parts Diagram

42" Snow Thrower for 260 Series Tractors

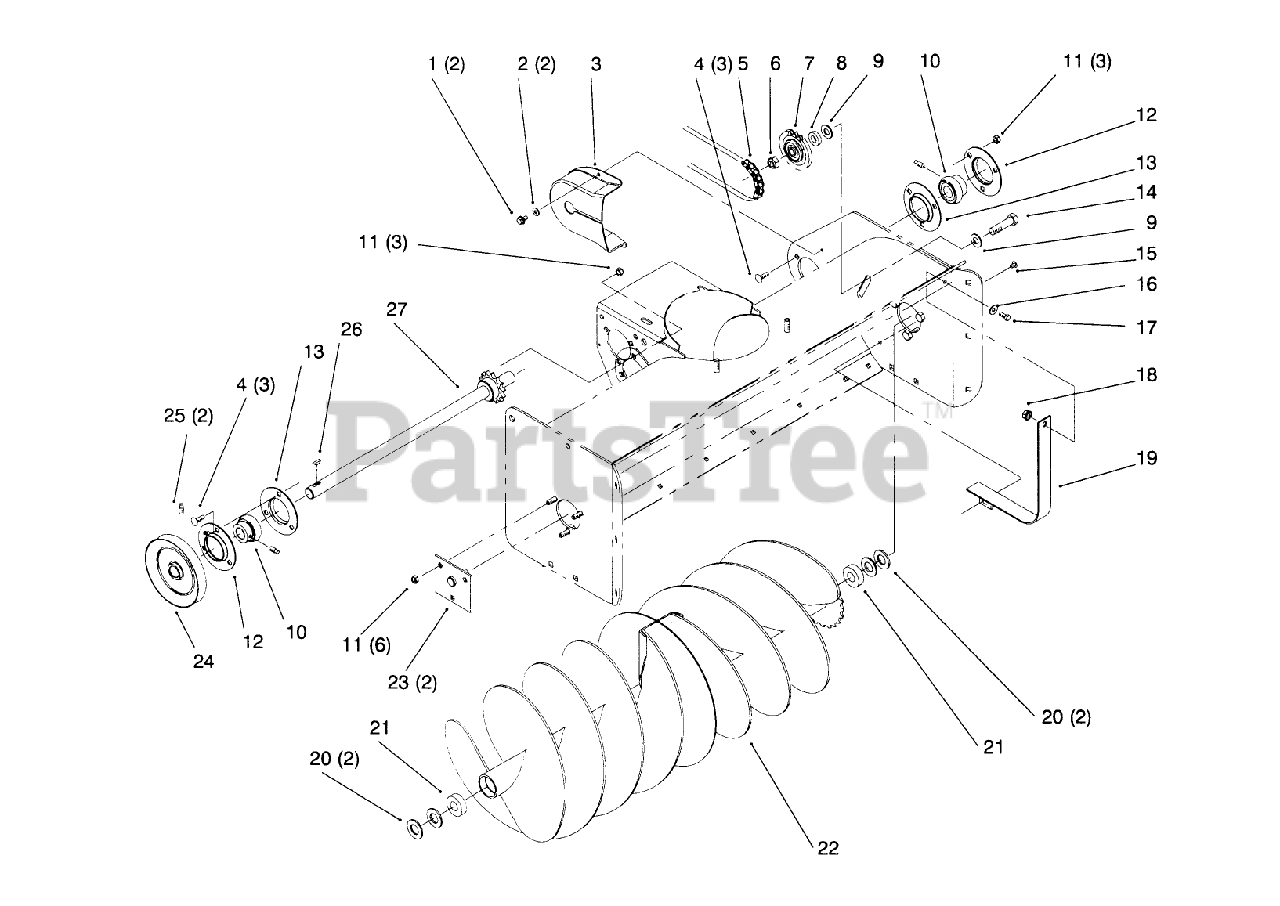

Auger Parts Diagram

  • Title

1

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 79-4000

GUARD-CHAIN

$

$

Not available

4

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

5

Toro 115165

CHAIN-64 PITCHES

$

$

Not available

6

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 93-1614-01

See Supercession: 93-1614
(Superseded to 93-1614)

$

$

Not available

8

Toro 6417

SPACER

$

$

Not available

9

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 110569

BEARING AND COLLAR

$125.99

$

In Stock, only 1 left!

0

11

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 110567

FLANGE-ZERK RELUBE

$27.99

$

In Stock, only 2 left!

0

13

Toro 110568

FLANGE

$21.99

$

In Stock, only 2 left!

0

14

Toro 325-8

SCREW-HH

$5.99

$

In Stock, only 3 left!

0

15

Toro 1391

DISCONTINUED

$

$

Not available

16

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

17

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

19

Toro 93-1619-01

GUARD-INNER

$46.99

$

Usually ships in 3-6 days

0

20

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

21

Toro 101480

BEARING-BALL

$64.99

$

In Stock, only 3 left!

0

22

Toro 93-1615-01

DISCONTINUED
(Superseded to 105-1478)

$

$

Not available

23

Toro 93-1618-01

SUPPORT ASM

$56.99

$

In Stock, only 2 left!

0

24

Toro 113356

PULLEY

$113.99

$

Usually ships in 3-6 days

0

25

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, Qty 5

0

26

Toro 937159

See Supercession: 937225
(Superseded to 937225)

$

$

Not available

27

Toro 79-4840-01

SPROCKET/SHAFT ASM

$566.99

$

Usually ships in 3-6 days

0
