79262 - Toro 42" Snow Thrower for 260 Series Tractors (SN: 059000001 - 059999999) (1995) Mounting Hitch And Idler Support Parts Diagram

42" Snow Thrower for 260 Series Tractors

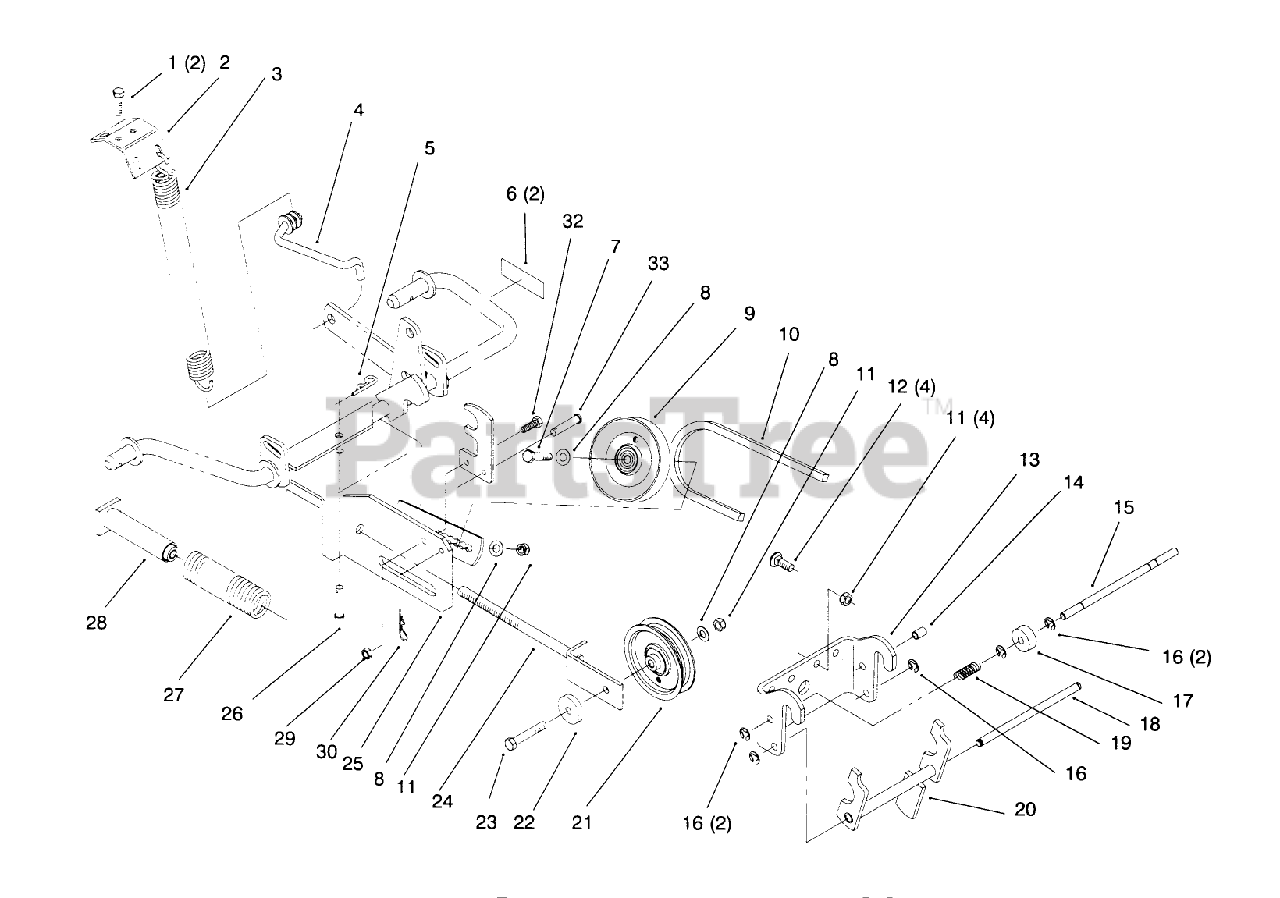

Mounting Hitch And Idler Support Parts Diagram

  • Title

1

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

2

Toro 93-1123-03

BRACKET

$

$

Not available

3

Toro 92-9821

SPRING-EXTENSION

$63.99

$

Usually ships in 3-6 days

0

4

Toro 93-3161

SPRING ROD

$116.99

$

Usually ships in 3-6 days

0

5

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

6

Toro 85-7490

DECAL-WARNING

$

$

Not available

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 92-7099

PULLEY-IDLER

$75.99

$

In Stock, only 4 left!

0

10

Toro 78-6240

See Supercession: 92-6991
(Superseded to 92-6991)

$126.99

$

In Stock, only 2 left!

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 78-1720-01

HITCH-FRONT

$125.99

$

Usually ships in 3-6 days

0

14

Toro 105316

CAP-ROD, PLUNGER

$1.99

$

In Stock, Qty 20+

0

15

Toro 101751

ROD-LOCK

$

$

Not available

16

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 13

0

17

Toro 101707

LOCK

$

$

Not available

18

Toro 101750

ROD-LATCH PIVOT

$

$

Not available

19

Toro 8616

SPRING

$4.49

$

Usually ships in 3-6 days

0

20

Toro 93-1613

LATCH

$

$

Not available

21

Toro 92-7084

PULLEY-IDLER, FLAT

$42.99

$

In Stock, only 2 left!

0

22

Toro 79-3720

BUSHING

$

$

Not available

23

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 79-3230

IDLER-SLIDE W.A. *B

$127.99

$

Usually ships in 3-6 days

0

25

Toro 93-0530-03

BRACKET IDLER W.A.

$382.99

$

Usually ships in 3-6 days

0

26

Toro 9329664

Clevis Pin

$

$

Currently unavailable

27

Toro 93-1621

SPRING-COMPRESSION

$

$

Not available

28

Toro 79-3270-03

SPRING-TENSIONER

$

$

Not available

29

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 5

0

31

Toro 93-0528-03

See Supercession: 93-0528
(Superseded to 93-0528)

$

$

Not available

32

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 9321204

PIN-CLEVIS

$5.49

$

Usually ships in 3-6 days

0
