79271 - Toro 36" Tiller for 260 Series Tractors (SN: 210000001 - 210999999) (2001) Hitch Assembly Parts Diagram

36" Tiller for 260 Series Tractors

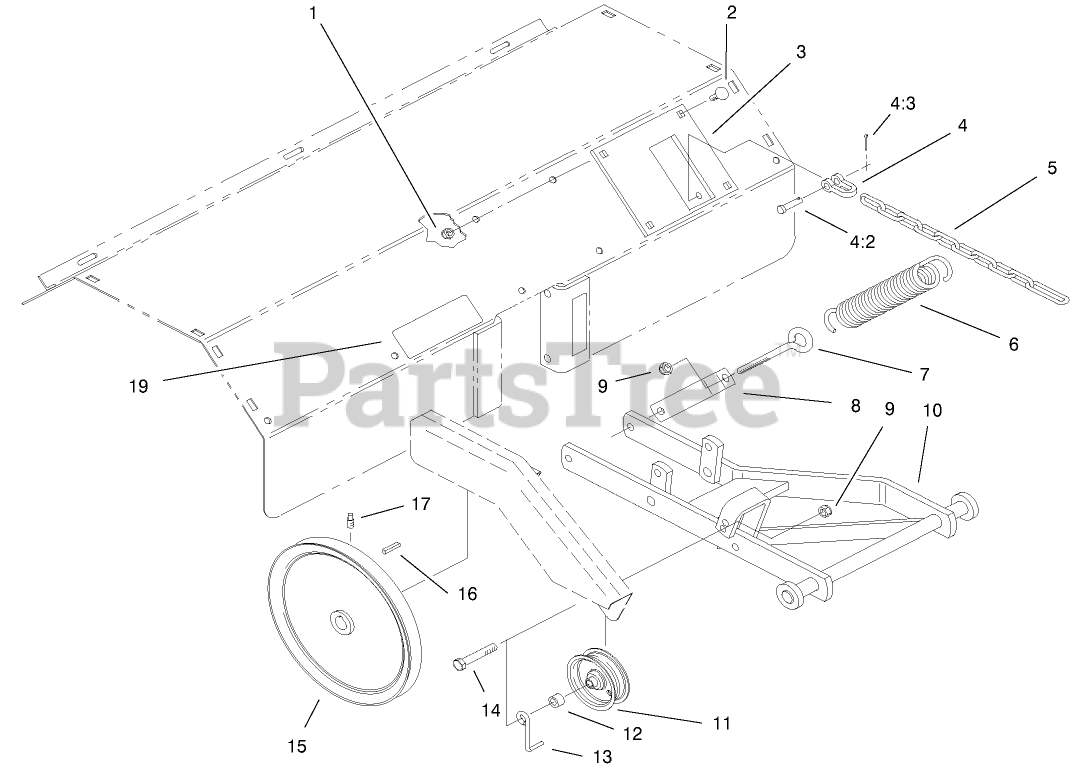

Hitch Assembly Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

3

Toro 93-1608-01

DISCONTINUED
(Superseded to 93-1608-03)

$

$

Not available

4

Toro 79-2280

CLEVIS ASM

$21.99

$

In Stock, only 1 left!

0

4:2

Toro 105821

See Supercession: 9329584
(Superseded to 9329584)

$

$

Not available

4:3

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

5

Toro 92-7074

CHAIN-LIFT

$

$

Not available

6

Toro 4629

SPRING

$

$

Not available

7

Toro 100653

EYEBOLT

$

$

Not available

8

Toro 93-1606-03

BRACKET-SPRING

$54.99

$

Usually ships in 3-6 days

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 93-1607-03

HITCH ASM

$

$

Not available

11

Toro 92-7104

PULLEY-IDLER

$33.99

$

In Stock, only 2 left!

0

12

Toro 93-3658

SPACER

$10.99

$

Usually ships in 3-6 days

0

13

Toro 79-0400

GUIDE-BELT

$

$

Not available

14

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 93-0345

PULLEY

$210.99

$

Usually ships in 3-6 days

0

16

Toro 1005

See Supercession: 5-1077
(Superseded to 5-1077)

$7.49

$

In Stock, only 2 left!

0

17

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, Qty 5

0

19

Toro 93-1628

DECAL-BELT ROUTING

$

$

Not available
