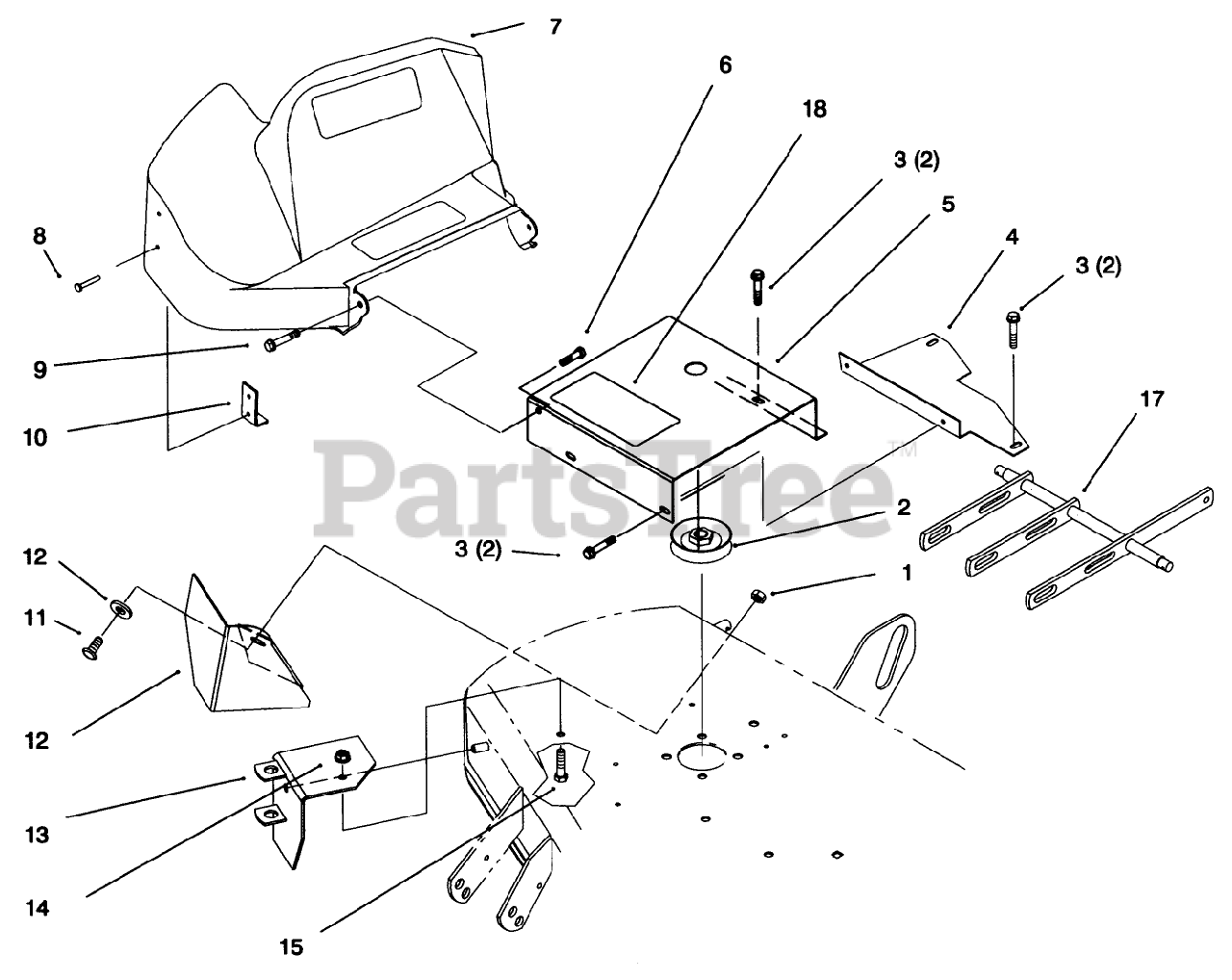

79301 - Toro 42"/48" Vacuum Bagger for 300 Series Tractors (SN: 059000001 - 059999999) (1995) 42" Deck Components Assembly Parts Diagram

42"/48" Vacuum Bagger for 300 Series Tractors

42" Deck Components Assembly Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 79-7310

PULLEY

$82.99

$

Usually ships in 3-6 days

0

3

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 79-7120

See Supercession: 79-7120-03
(Superseded to 79-7120-03)

$40.99

$

Usually ships in 3-6 days

0

5

Toro 92-1161

SHIELD / DECAL ASM

$

$

Not available

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 86-9300

SHIELD-BELT

$

$

Not available

8

Toro 79-0470

RIVET-POP

$

$

Not available

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$

$

Not available

11

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 79-7300

See Supercession: 79-7300-03
(Superseded to 79-7300-03)

$87.99

$

Usually ships in 3-6 days

0

13

Toro 79-7000

See Supercession: 79-7000-03
(Superseded to 79-7000-03)

$135.99

$

Usually ships in 3-6 days

0

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 92-0981

See Supercession: 92-0981-03
(Superseded to 92-0981-03)

$

$

Not available

18

Toro 92-7108

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0
