79301 - Toro 42"/48" Vacuum Bagger for 300 Series Tractors (SN: 059000001 - 059999999) (1995) Drive Components Assembly Parts Diagram

42"/48" Vacuum Bagger for 300 Series Tractors

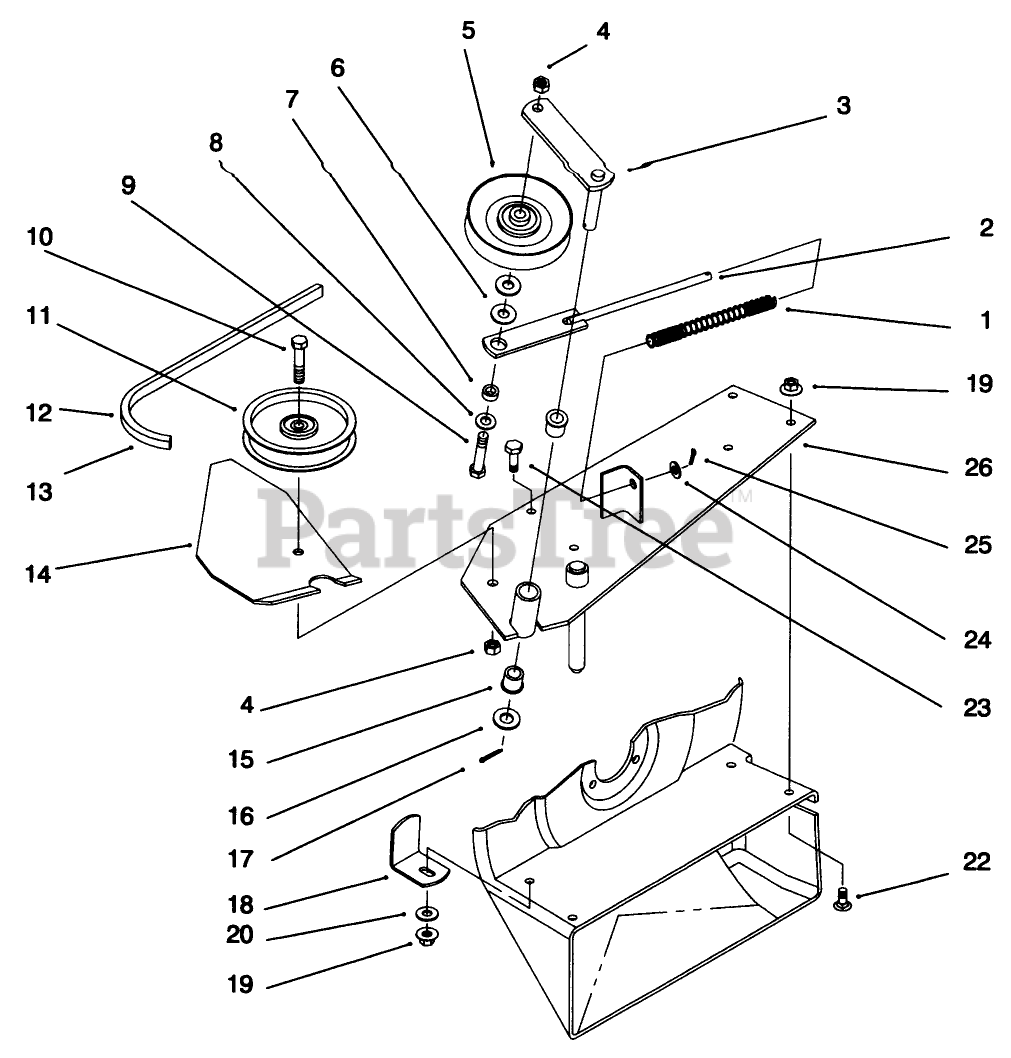

Drive Components Assembly Parts Diagram

  • Title

1

Toro 79-7110

SPRING-COMPRESSION

$

$

Not available

2

Toro 79-2020

SPRING-ROD

$72.99

$

Usually ships in 3-6 days

0

3

Toro 79-1970

IDLER ARM ASM

$

$

Not available

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 92-7099

PULLEY-IDLER

$75.99

$

In Stock, only 4 left!

0

6

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

7

Toro 107213

SPACER

$11.99

$

Usually ships in 3-6 days

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 93-1622

PULLEY-IDLER

$54.99

$

In Stock, Qty 5

0

12

Toro 79-7480

V-BELT

$108.99

$

In Stock, only 1 left!

0

13

Toro 79-7490

V-BELT

$109.99

$

Usually ships in 3-6 days

0

14

Toro 79-7280

See Supercession: 79-7280-03
(Superseded to 79-7280-03)

$

$

Not available

15

Toro 100284

BUSHING

$

$

Not available

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3272-7

PIN-COTTER
(Superseded to 702947)

$65.99

$

Usually ships in 3-6 days

0

18

Toro 79-7440

BRACKET-SUPPORT, HOUSING

$

$

Not available

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, only 4 left!

0

26

Toro 79-1380

See Supercession: 79-1380-03
(Superseded to 79-1380-03)

$287.99

$

Usually ships in 3-6 days

0
