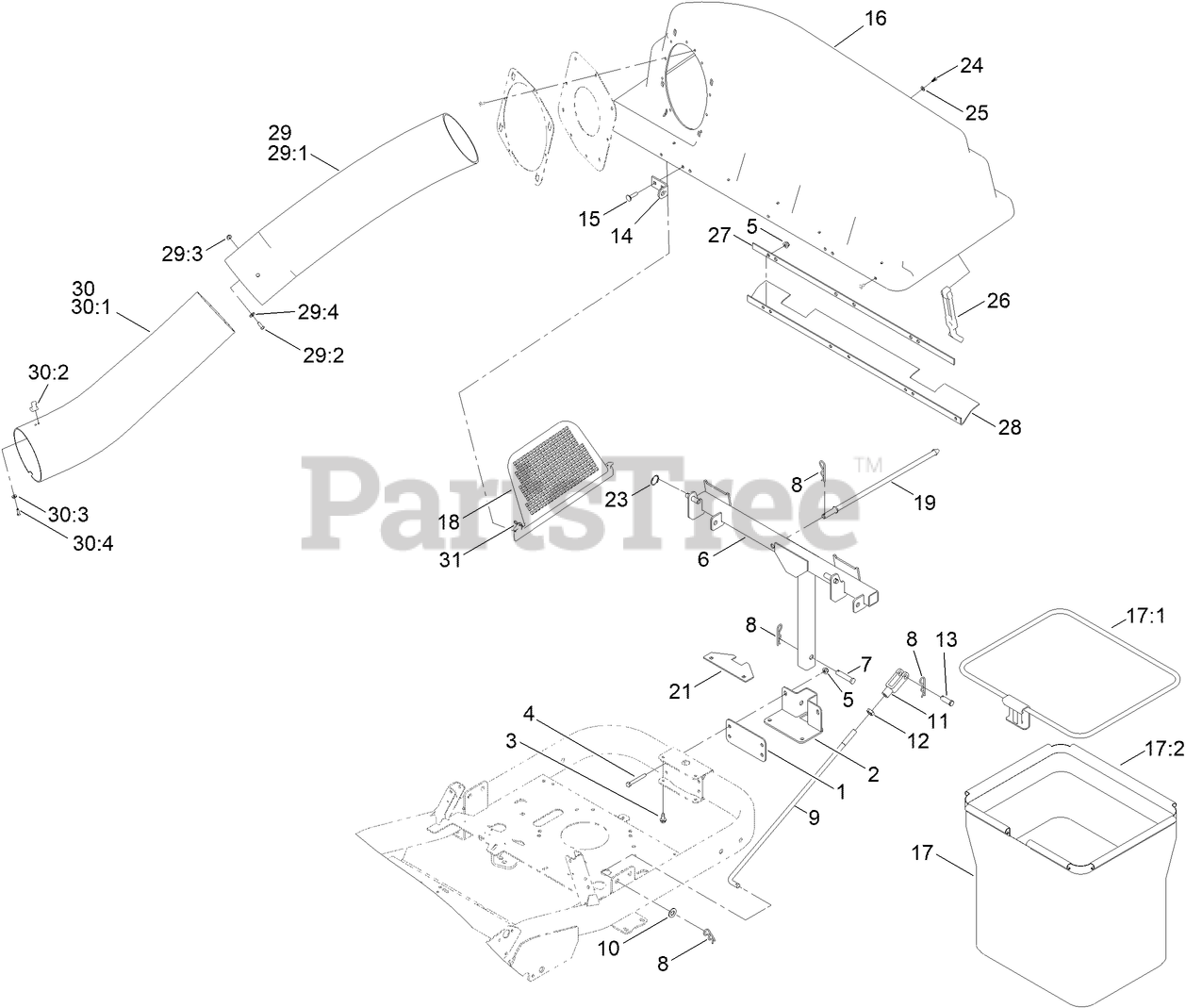

79330 - Toro E-Z Vac Twin Bagger for Titan Mower (SN: 407000000 - 999999999) Twin Bagger and Hood Assembly Parts Diagram

E-Z Vac Twin Bagger for Titan Mower

Twin Bagger and Hood Assembly Parts Diagram

  • Title

1

Toro 117-5355-03

PLATE

$26.99

$

Usually ships in 3-6 days

0

2

Toro 120-7120-03

SUPPORT-BAGGER

$98.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 125-1811-03

PIVOT FRAME ASM

$346.99

$

Usually ships in 3-6 days

0

7

Toro 92-2739

PIN-CLEVIS

$11.99

$

In Stock, only 2 left!

0

8

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

9

Toro 115-2645

ROD-BAGGER

$51.99

$

Usually ships in 3-6 days

0

10

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 100-7338

CLEVIS

$68.99

$

In Stock, only 1 left!

0

12

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

13

Toro 104-3634

PIN-CLEVIS

$22.99

$

In Stock, only 2 left!

0

14

Toro 112-3987

BRACKET-PIVOT, HOPPER

$8.99

$

In Stock, only 2 left!

0

15

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 121-3215

BAGGER HOOD ASM

$609.99

$

Usually ships in 3-6 days

0

17

Toro 147-2888

BAG ASM

$119.99

$

In Stock, only 4 left!

0

17:1

Toro 140-5179-03

FRAME, BAG [BLACK]

$33.99

$

In Stock, only 2 left!

0

17:2

Toro 140-5192

BAG ASM 20IN DEPTH

$96.99

$

In Stock, only 2 left!

0

18

Toro 112-3993

SCREEN-BAGGER

$35.99

$

In Stock, only 2 left!

0

19

Toro 116-6491

ROD-HOLD DOWN, HOOD

$66.99

$

Usually ships in 3-6 days

0

21

Toro 117-5397-03

PLATE-SPACER

$23.99

$

Usually ships in 3-6 days

0

23

Toro 120-7127

PIN-COTTER, CIRCULAR

$1.49

$

Usually ships in 3-6 days

0

24

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 13

0

25

Toro 3256-77

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

26

Toro 127-0101

LATCH-RUBBER

$

$

Not available

27

Toro 116-4127-03

PLATE-BACKING

$26.99

$

Usually ships in 3-6 days

0

28

Toro 116-4126

SEAL

$37.99

$

In Stock, only 2 left!

0

29

Toro 125-5464

UPPER TUBE ASM

$297.99

$

Usually ships in 3-6 days

0

29:1

Toro 125-5568

TUBE-UPPER

$

$

Currently unavailable

29:2

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 17

0

29:3

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

29:4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 116-4128

LOWER TUBE ASM

$299.99

$

Usually ships in 3-6 days

0

30:1

Toro 116-4495

TUBE-LOWER

$148.99

$

Usually ships in 3-6 days

0

30:2

Toro 103-4081

LATCH-KEEPER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$15.99

$

Usually ships in 3-6 days

0

30:3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30:4

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

31

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0
