79345 - Toro Blower and Drive Kit for E-Z Vac Twin Bagger for TimeCutter HD (SN: 400000000 - 405699999) Bagger Assembly Parts Diagram

Blower and Drive Kit for E-Z Vac Twin Bagger for TimeCutter HD

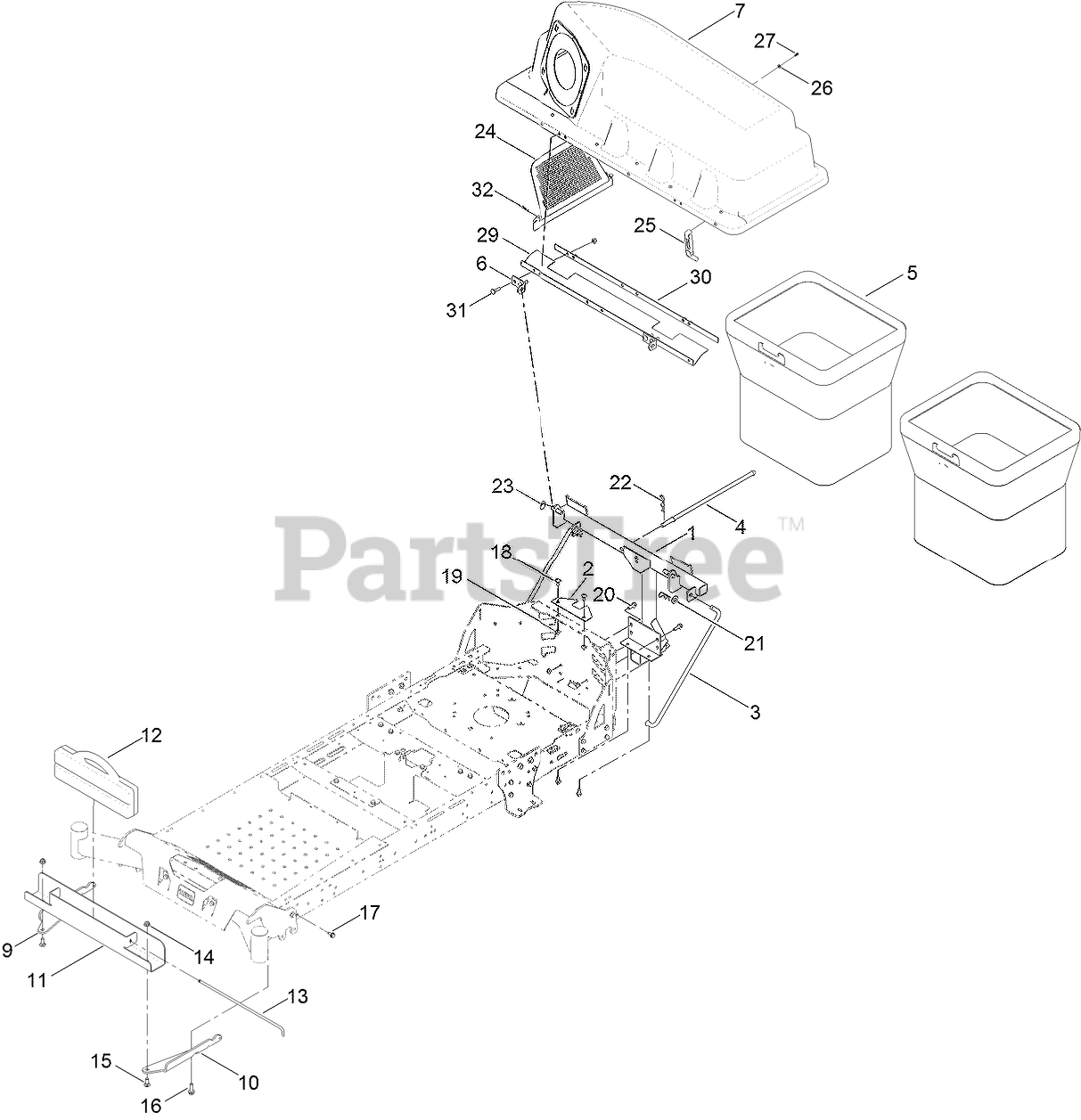

Bagger Assembly Parts Diagram

  • Title

1

Toro 136-4231-03

FRAME-PIVOT

$406.99

$

Usually ships in 3-6 days

0

2

Toro 131-3967-03

BRACKET-STABILIZER

$6.99

$

Usually ships in 3-6 days

0

3

Toro 136-5593

ROD-SUPPORT

$22.99

$

Usually ships in 3-6 days

0

4

Toro 131-4189

ROD-HOOD, DOWN (HOLD)

$27.99

$

In Stock, only 1 left!

0

5

Toro 112-3994

BAG ASM

$198.99

$

In Stock, only 1 left!

0

6

Toro 112-3987

BRACKET-PIVOT, HOPPER

$8.99

$

In Stock, only 2 left!

0

7

Toro 121-3215

BAGGER HOOD ASM

$609.99

$

Usually ships in 3-6 days

0

9

Toro 136-7461-03

BRACKET-WEIGHT, RH

$37.99

$

Usually ships in 3-6 days

0

10

Toro 136-7462-03

BRACKET-WEIGHT, LH

$37.99

$

Usually ships in 3-6 days

0

11

Toro 120-5491-03

CHANNEL-WEIGHT, BAGGER

$116.99

$

Usually ships in 3-6 days

0

12

Toro 109-9742-05

WEIGHT-35 POUND

$505.99

$

Usually ships in 3-6 days

0

13

Toro 109-9759

PIN-WEIGHT

$

$

Not available

14

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 119-4061

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

17

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

21

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

23

Toro 120-7127

PIN-COTTER, CIRCULAR

$1.49

$

Usually ships in 3-6 days

0

24

Toro 112-3993

SCREEN-BAGGER

$35.99

$

In Stock, only 2 left!

0

25

Toro 116-4992

LATCH-RUBBER

$55.99

$

In Stock, only 2 left!

0

26

Toro 3256-77

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

27

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 13

0

29

Toro 116-4126

SEAL

$37.99

$

In Stock, only 2 left!

0

30

Toro 116-4127-03

PLATE-BACKING

$26.99

$

Usually ships in 3-6 days

0

31

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

32

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0
