79348 - Toro Powered Twin Bagger for TITAN Mower (SN: 400000000 - 999999999) Blower and Tube Assembly Parts Diagram

Powered Twin Bagger for TITAN Mower

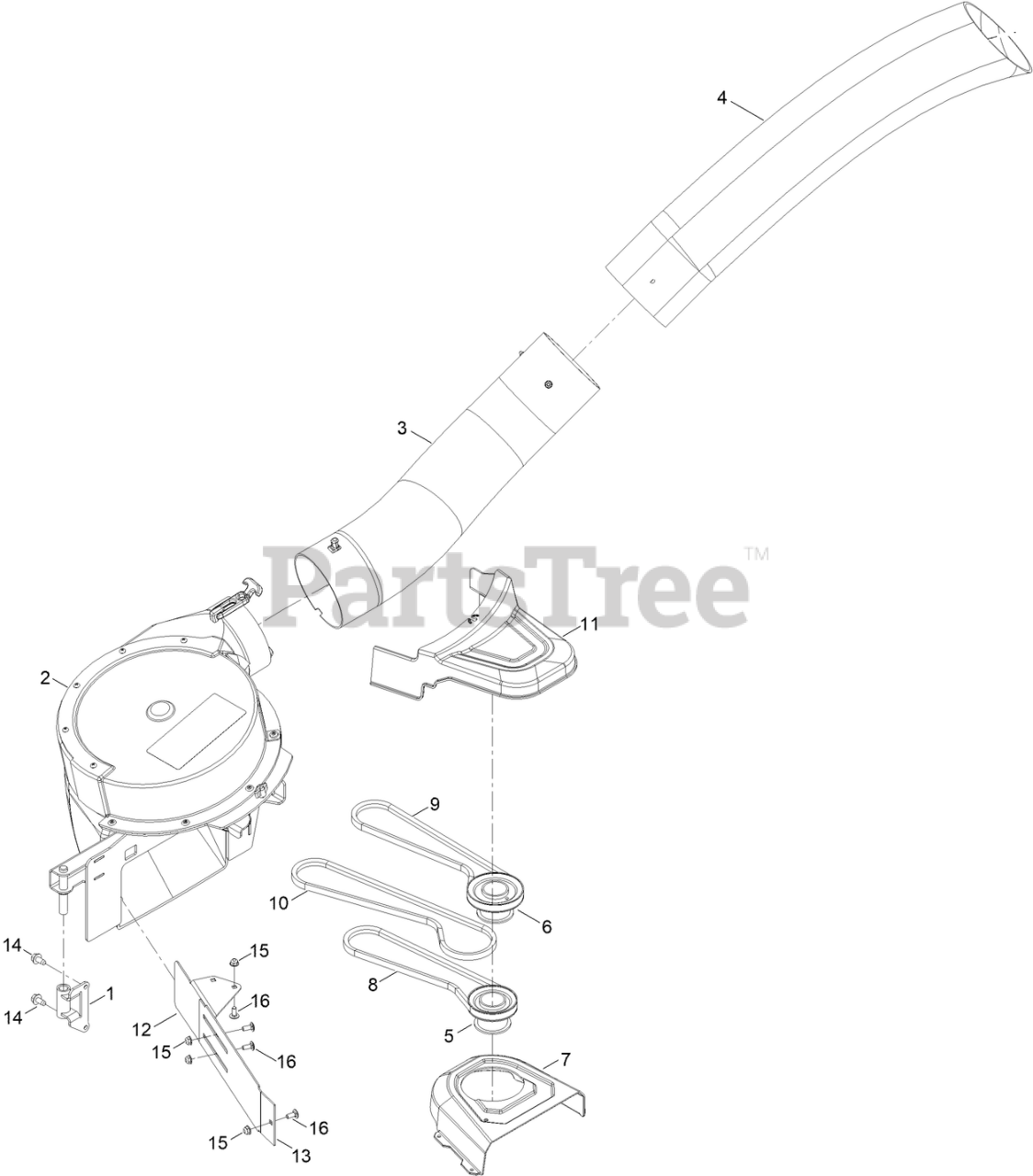

Blower and Tube Assembly Parts Diagram

  • Title

1

Toro 136-4152

PIVOT-BLOWER

$53.99

$

In Stock, only 1 left!

0

2

Toro 140-5032

Blower Housing Assembly

$1590.99

$

Usually ships in 3-6 days

0

3

Toro 140-5030

Lower Tube ASM

$187.99

$

Usually ships in 3-6 days

0

4

Toro 161-6302

TUBE ASM-UPPER

$259.99

$

Usually ships in 3-6 days

0

5

Toro 125-0085

PULLEY-BAGGER

$153.99

$

Usually ships in 3-6 days

0

6

Toro 125-0086

PULLEY-BAGGER

$153.99

$

Usually ships in 3-6 days

0

7

Toro 136-4151

COVER-BELT, RH

$20.99

$

Usually ships in 3-6 days

0

8

Toro 127-0074

BELT-V

$47.99

$

In Stock, only 3 left!

0

9

Toro 127-0075

BELT-V

$49.99

$

In Stock, Qty 5

0

10

Toro 127-0076

BELT-V

$50.99

$

In Stock, only 2 left!

0

11

Toro 136-4172

COVER-BAGGER, POWERED

$34.99

$

Usually ships in 3-6 days

0

12

Toro 133-7022-03

BAFFLE-OUTER

$30.99

$

Usually ships in 3-6 days

0

13

Toro 133-7021-03

BAFFLE-INNER

$30.99

$

Usually ships in 3-6 days

0

14

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, only 2 left!

0

15

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 137-3061

BOLT-CARR

$0.99

$

Usually ships in 3-6 days

0
