79361 - Toro 44" Two-Stage Snow Thrower for 300 Series Tractors (SN: 059000001 - 059999999) (1995) Auger Assembly Parts Diagram

44" Two-Stage Snow Thrower for 300 Series Tractors

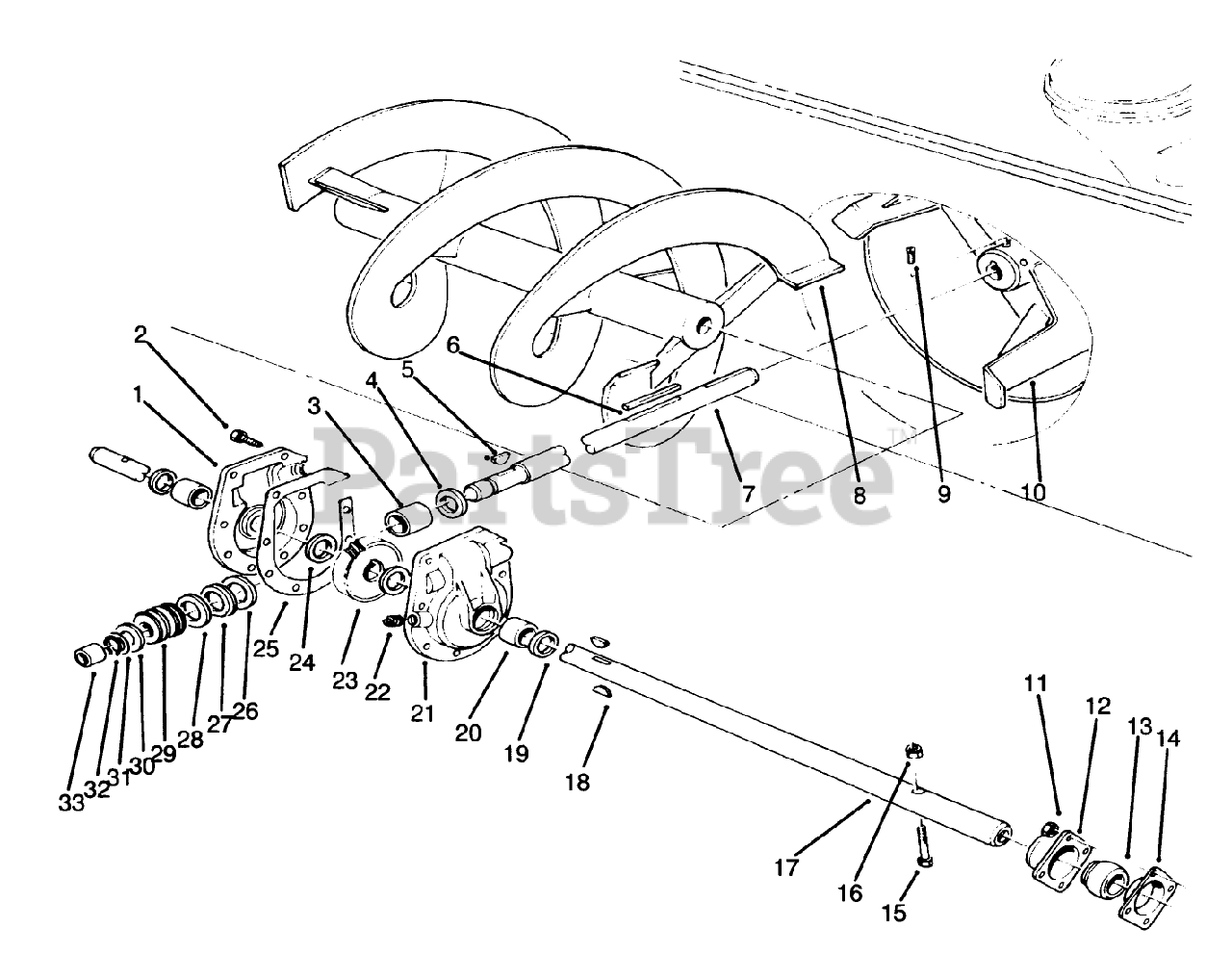

Auger Assembly Parts Diagram

  • Title

1

Toro 14-2449

RH BUSHING CASE ASM

$168.99

$

In Stock, only 2 left!

0

2

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

3

Toro 20-3210

BUSHING-SPECIAL

$13.99

$

In Stock, only 2 left!

0

4

Toro 237-87

RING-QUAD

$7.99

$

In Stock, only 2 left!

0

5

Toro 3257-23

KEY-WOODRUFF

$7.99

$

In Stock, only 2 left!

0

6

Toro 6-8590

KEY

$13.99

$

Usually ships in 3-6 days

0

7

Toro 19-8540

SHAFT-IMPELLER

$409.99

$

Usually ships in 3-6 days

0

8

Toro 57-3300

See Supercession: 57-3300-03
(Superseded to 57-3300-03)

$979.99

$

Usually ships in 3-6 days

0

Toro 57-3370

See Supercession: 57-3370-03
(Superseded to 57-3370-03)

Note: Not illustrated

$

$

Not available

9

Toro 3242-6

SCREW-SET, SQH

$4.99

$

Usually ships in 3-6 days

0

10

Toro 19-8890

See Supercession: 19-8890-03
(Superseded to 19-8890-03)

$775.99

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 20-0990

BEARING-FLANGE, FRONT

$12.99

$

In Stock, only 2 left!

0

13

Toro 20-0980

BEARING

$26.99

$

In Stock, Qty 10

0

14

Toro 20-1000

BEARING-FLANGE, REAR

$12.99

$

In Stock, only 2 left!

0

15

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 57-3500

SHAFT-AUGER

$666.99

$

Usually ships in 3-6 days

0

18

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

19

Toro 7-0045

SEAL-OIL

$21.99

$

In Stock, Qty 12

0

20

Toro 256-237

BUSHING

$17.99

$

In Stock, only 2 left!

0

21

Toro 14-2459

LH BUSHING CASE ASM

$168.99

$

In Stock, only 2 left!

0

22

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

23

Toro 5-7180

GEAR-WORM, 27T

$201.99

$

In Stock, only 2 left!

0

24

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 3 left!

0

25

Toro 92-9839

See Supercession: 105-1404
(Superseded to 105-1404)

$36.99

$

Usually ships in 3-6 days

0

26

Toro 252-78

WASHER-THRUST

$25.99

$

In Stock, only 2 left!

0

27

Toro 252-76

BEARING-THRUST

$25.99

$

In Stock, only 1 left!

0

28

Toro 252-77

THRUST-WASHER

$11.99

$

Usually ships in 3-6 days

0

29

Toro 5-7170

GEAR

$144.99

$

Usually ships in 3-6 days

0

30

Toro 3-8664

WASHER-THRUST

$7.49

$

In Stock, only 2 left!

0

31

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

32

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

$2.99

$

In Stock, Qty 20+

0

33

Toro 256-32

BUSHING

$11.99

$

In Stock, only 2 left!

0
