79361 - Toro 44" Two-Stage Snow Thrower for 300 Series Tractors (SN: 059000001 - 059999999) (1995) Chute Assembly Parts Diagram

44" Two-Stage Snow Thrower for 300 Series Tractors

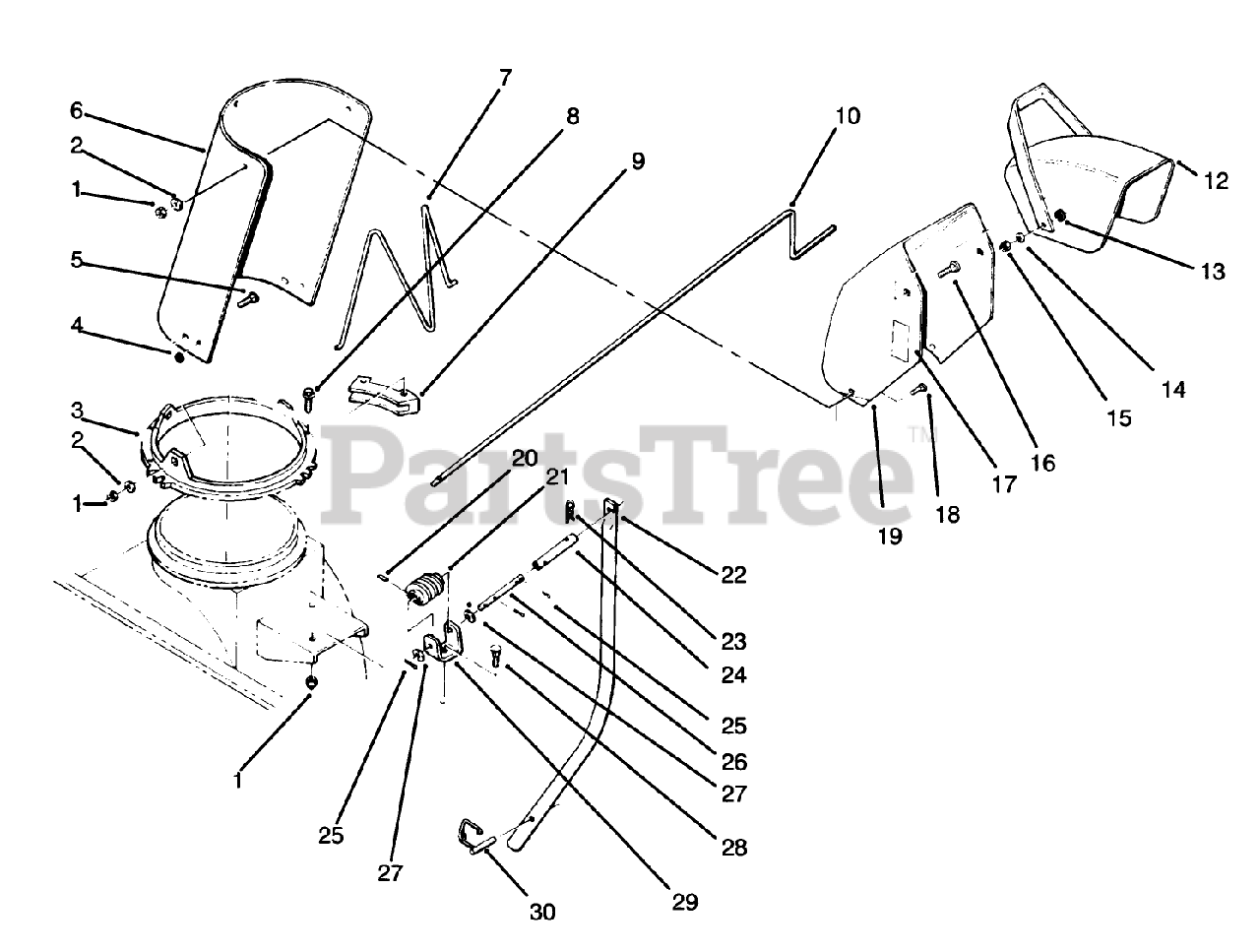

Chute Assembly Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 25-5290

See Supercession: 25-5290-01
(Superseded to 25-5290-01)

$77.99

$

Usually ships in 3-6 days

0

4

Toro 3290-326

NUT-PUSH

$

$

Not available

5

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

6

Toro 26-1110-01

EXTENDER-CHUTE, UPPER

$194.99

$

Usually ships in 3-6 days

0

7

Toro 12-2040

WIRE-CHUTE

$

$

Not available

8

Toro 27-0220

SCREW-SPECIAL

$8.49

$

In Stock, only 2 left!

0

9

Toro 25-5450

RETAINER-CHUTE

$42.99

$

Usually ships in 3-6 days

0

10

Toro 51-2650

ROD-CHUTE CONTROL

$228.99

$

Usually ships in 3-6 days

0

12

Toro 11-9349-01

See Supercession: 11-7120-01
(Superseded to 11-7120-01)

$134.99

$

Usually ships in 3-6 days

0

13

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

14

Toro 3290-340

WASHER-BELLEVILLE

$8.99

$

In Stock, only 4 left!

0

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 63-3740

See Supercession: 94-8079
(Superseded to 94-8079)

$12.99

$

Usually ships in 3-6 days

0

18

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 92-6335-01

DISCHARGE CHUTE/DECAL ASM

$248.99

$

Usually ships in 3-6 days

0

20

Toro 32121-50

PIN-SPRING

$3.99

$

In Stock, only 3 left!

0

21

Toro 8-8600

GEAR-WORM, CHUTE

$151.99

$

Usually ships in 3-6 days

0

22

Toro 119030

TUBE-CRANK SUPPOR *R

$

$

Not available

23

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

24

Toro 117538

COUPLING

$

$

Not available

25

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, only 4 left!

0

26

Toro 117529

ROD-LOWER CHUTE CONT

$

$

Not available

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

29

Toro 49-6720

See Supercession: 49-6720-03
(Superseded to 49-6720-03)

$

$

Not available

30

Toro 111314

LOCKING PIN ASM

$29.99

$

In Stock, only 2 left!

0
