79380 - Toro Front Mount Mower Carrier for 300 Series Tractors (SN: 059000001 - 059999999) (1995) Front Mount Carrier Parts Diagram

Front Mount Mower Carrier for 300 Series Tractors

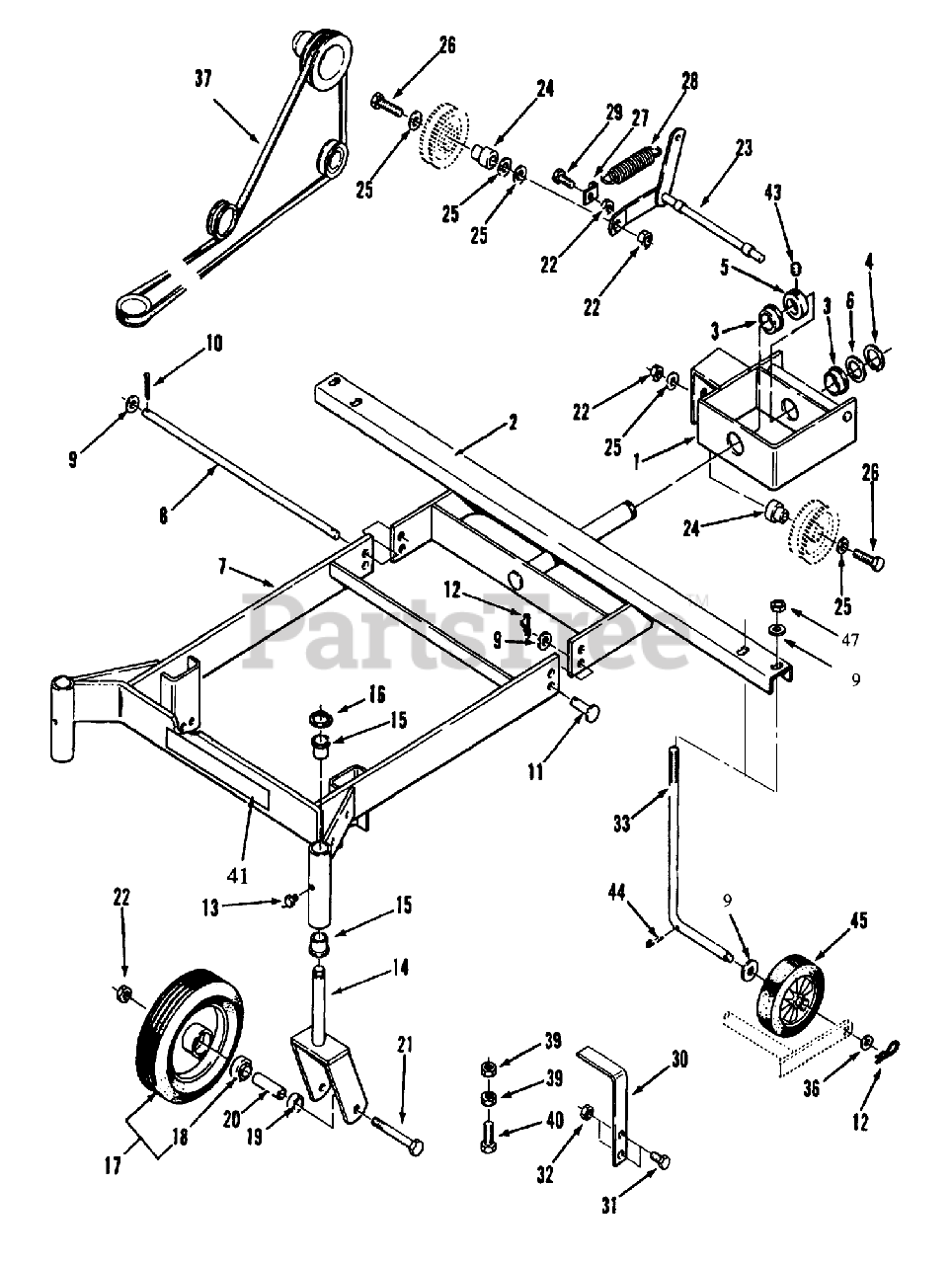

Front Mount Carrier Parts Diagram

  • Title

1

Toro 116283

DISCONTINUED

$

$

Not available

2

Toro 110517

ASSY PIVOT FRAME *R

$

$

Not available

3

Toro 103007

BUSHING

$

$

Not available

4

Toro 32151-36

RING-RETAINING

$5.49

$

In Stock, Qty 20+

0

5

Toro 8192

DISCONTINUED

$

$

Not available

6

Toro 920251

WASHER

$3.49

$

In Stock, only 2 left!

0

7

Toro 109938

ASSY FRAME *R

$

$

Not available

8

Toro 109945

DISCONTINUED

$

$

Not available

9

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

11

Toro 932997

CLEVIS PIN

$

$

Not available

12

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

13

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

14

Toro 109946

DISCONTINUED

$

$

Not available

15

Toro 106872

BUSHING

$63.99

$

Usually ships in 3-6 days

0

16

Toro 32120-72

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

17

Toro 114275

DISCONTINUED

$

$

Not available

18

Toro 114276

DISCONTINUED

$

$

Not available

19

Toro 100686

SPACER

$

$

Not available

20

Toro 109950

SPACER

$

$

Not available

21

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

22

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

23

Toro 109951

DISCONTINUED

$

$

Not available

24

Toro 109785

SPACER

$

$

Not available

25

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

26

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 2534

CLIP - SPRING

$4.99

$

Usually ships in 3-6 days

0

28

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, Qty 9

0

29

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Toro 106380

HANDLE-EXTENSION *R

$

$

Not available

31

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 32146-17

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

33

Toro 110519

ROD HANGER *R

$

$

Not available

36

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 109956

DISCONTINUED

$

$

Not available

39

Toro 109779

NUT-HEX, JAM

$

$

Not available

40

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

41

Toro 76-1330

DECAL - REAR FRAME

$

$

Not available

43

Toro 909531

DISCONTINUED

$

$

Not available

44

Toro 3272-7

PIN-COTTER
(Superseded to 702947)

$65.99

$

Usually ships in 3-6 days

0

45

Toro 109375

WHEEL ASM

$

$

Not available

47

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
