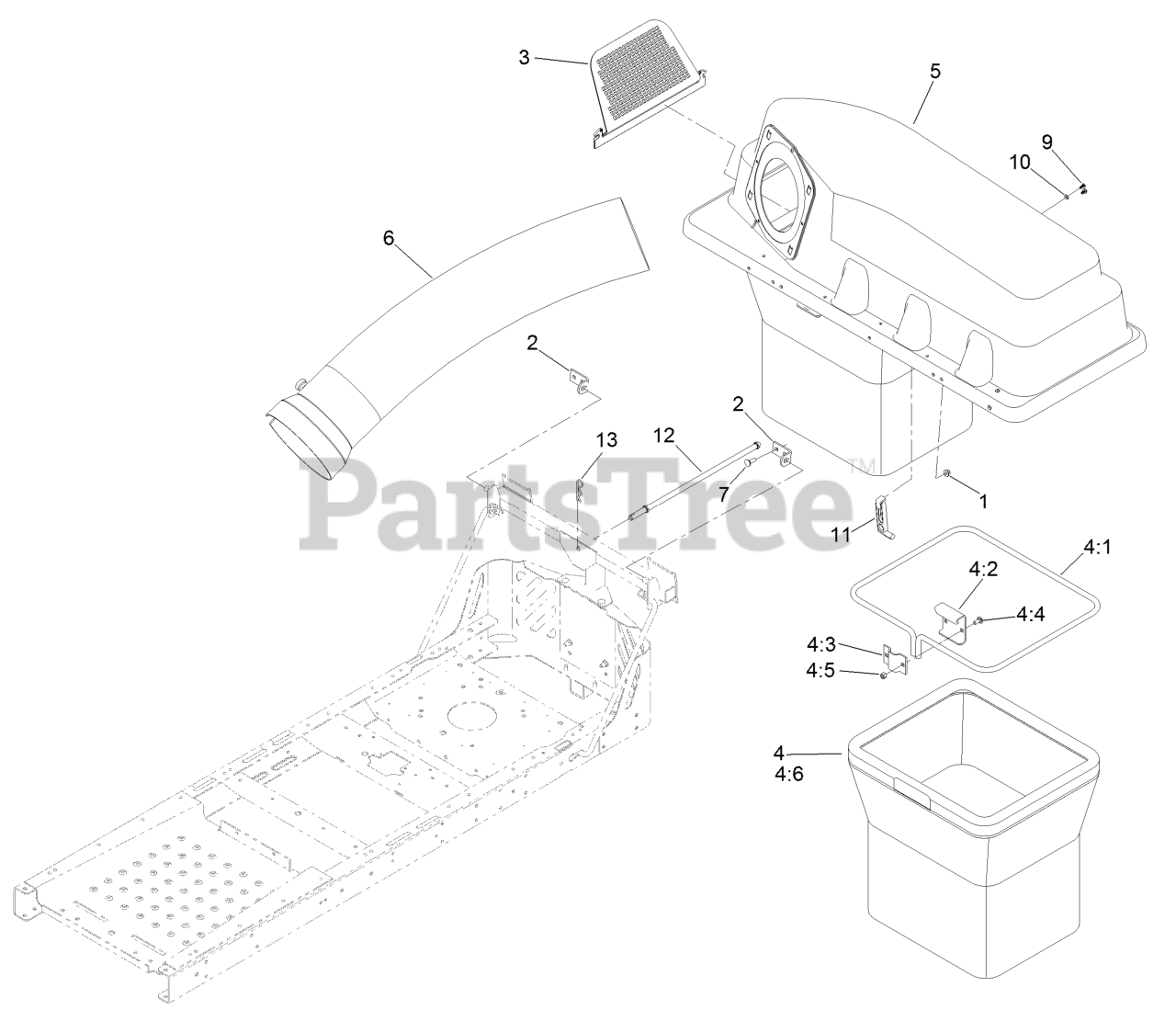

79381 - Exmark Bagger for 42" Quest E-Series Mower (SN: 315000000 - 315999999) (2015) Bagger Top, Chute and Bag Assembly Parts Diagram

Bagger for 42" Quest E-Series Mower

Bagger Top, Chute and Bag Assembly Parts Diagram

  • Title

1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 112-3987

BRACKET-PIVOT, HOPPER

$8.99

$

In Stock, only 2 left!

0

3

Exmark 112-3993

SCREEN-BAGGER

$35.99

$

In Stock, only 2 left!

0

4

Exmark 112-3994

BAG ASM

$198.99

$

In Stock, only 1 left!

0

4:1

Exmark 114972-03

FRAME-BAG

$124.99

$

In Stock, only 2 left!

0

4:2

Exmark 114973-03

HANGER-BAG

$28.99

$

In Stock, only 2 left!

0

4:3

Exmark 114974-03

CLAMP

$15.99

$

In Stock, only 2 left!

0

4:4

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4:5

Exmark 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4:6

Exmark 110-6674

BAG
(Superseded to 140-5192)

$96.99

$

In Stock, only 2 left!

0

5

Exmark 131-8654

BAGGER TOP ASM

$294.99

$

Usually ships in 3-6 days

0

6

Exmark 112-3995

TUBE-BAGGER

$238.99

$

Usually ships in 3-6 days

0

7

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

9

Exmark 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 13

0

10

Exmark 3256-77

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

11

Exmark 116-4992

LATCH-RUBBER

$55.99

$

In Stock, only 2 left!

0

12

Exmark 131-4189

ROD-HOOD, DOWN (HOLD)

$27.99

$

Usually ships in 3-6 days

0

13

Exmark 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0
