79486 - Toro Slope Sensor Kit for Mower Slope Sensor Kit Assembly Parts Diagram

Slope Sensor Kit for Mower

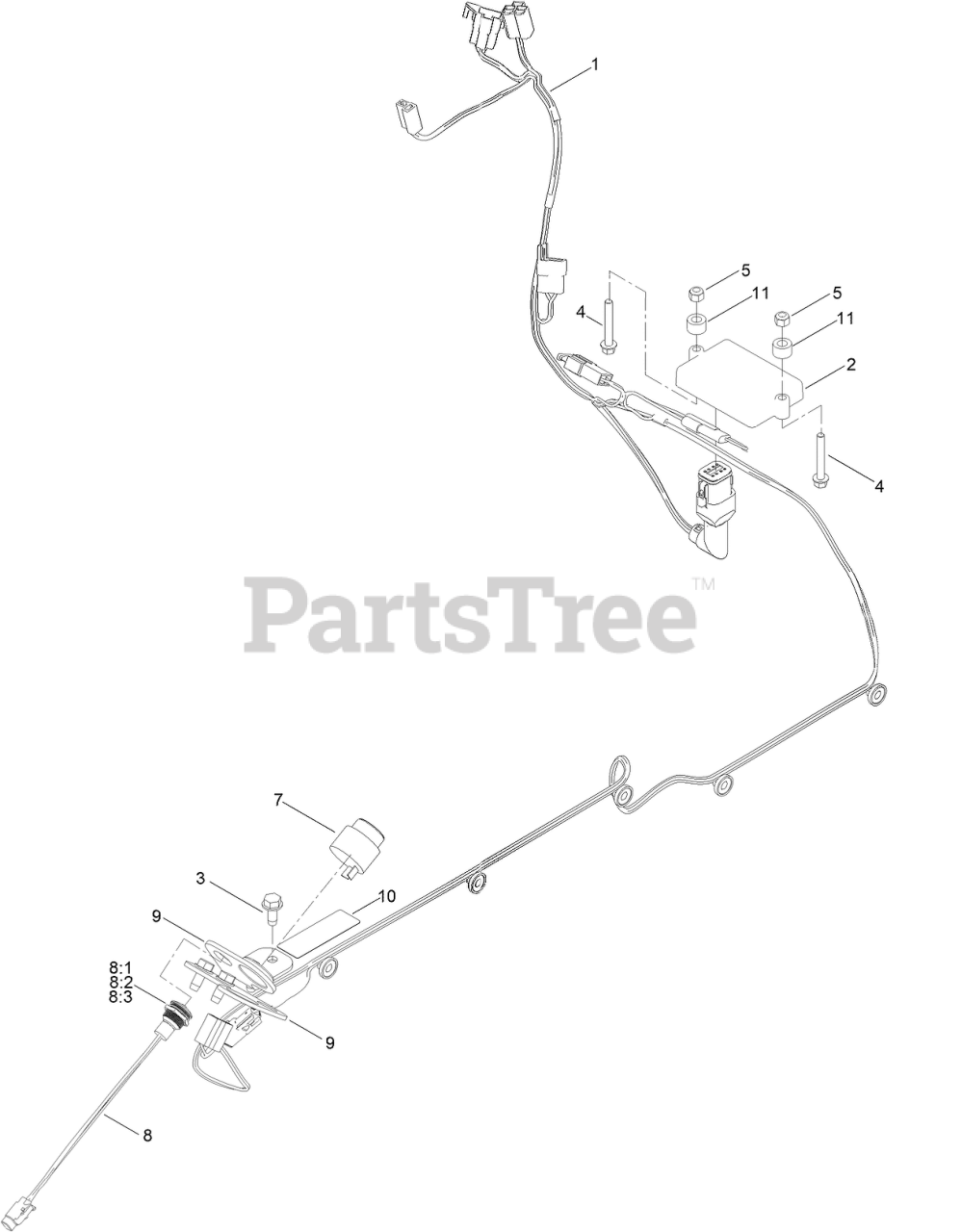

Slope Sensor Kit Assembly Parts Diagram

  • Title

1

Toro 139-6370

HARNESS-WIRE, SLOPE SENSOR

$336.99

$

Usually ships in 3-6 days

0

2

Toro 122-1266

CONTROLLER (FASM-TSM-0802)

$369.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 138-5527

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

5

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

7

Toro 80-9330

AUDIO ALARM ASM

$161.99

$

Usually ships in 3-6 days

0

7:1

Toro 104-5107

NUT-PLASTIC, KNURLED

Note: Not illustrated

$6.49

$

Usually ships in 3-6 days

0

8

Toro 122-0630

RED LED INDICATOR LAMP ASM

$113.99

$

Usually ships in 3-6 days

0

8:1

Toro 122-0634

GASKET-LED

$2.99

$

Usually ships in 3-6 days

0

8:2

Toro 122-0633

WASHER-LOCKING

$1.49

$

Usually ships in 3-6 days

0

8:3

Toro 122-0632

NUT-FIXING

$6.99

$

Usually ships in 3-6 days

0

9

Toro 139-7508-03

BRACKET-LIGHT

$24.99

$

Usually ships in 3-6 days

0

9

Toro 139-7509-03

BRACKET-LIGHT (MYRIDE)

$14.99

$

Usually ships in 3-6 days

0

10

Toro 140-2710

DECAL-SLOPE SENSOR

$12.99

$

Usually ships in 3-6 days

0

11

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0
