79534 - Toro 36" GrandStand Stand-On Mower (SN: 414000000 - 999999999) Fuel Tank Assembly Parts Diagram

36" GrandStand Stand-On Mower

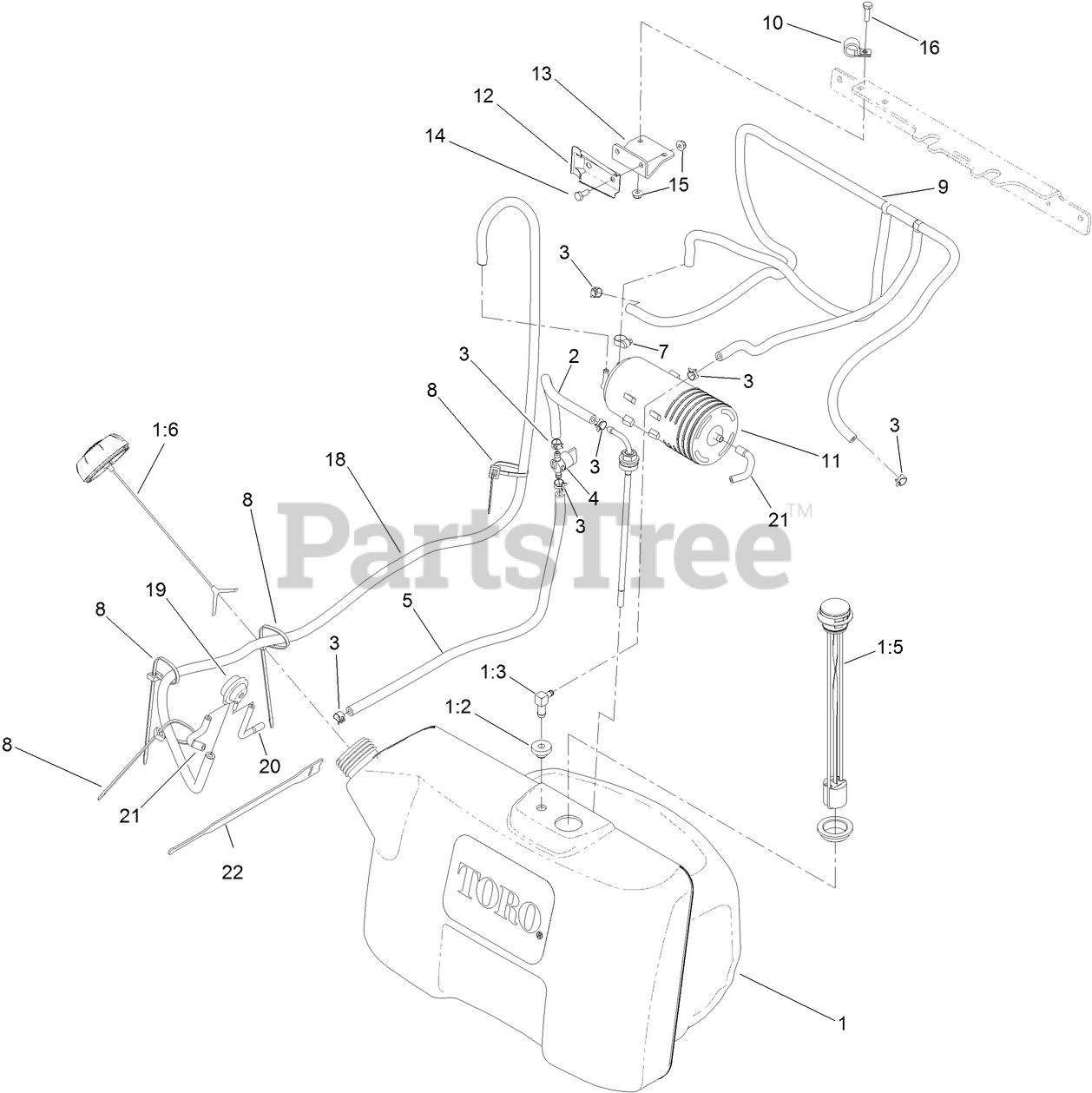

Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 135-0650

TANK ASM

$580.99

$

Usually ships in 3-6 days

0

1:2

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

1:3

Toro 1-643172

ELBOW-90 DEG

$12.99

$

In Stock, Qty 7

0

1:5

Toro 126-1789

CAP-FUEL, RATCHETING

$42.99

$

In Stock, Qty 5

0

1:6

Toro 116-3408

FITTING-FUEL, BULKHEAD

$50.99

$

Usually ships in 3-6 days

0

1:99

Toro 126-6924

FUEL GAGE REPLACEMENT KIT

Note: Not illustrated

$181.99

$

Usually ships in 3-6 days

0

2

Toro 109-0297

HOSE-FUEL

$8.99

$

Usually ships in 3-6 days

0

3

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

4

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

5

Toro 109-0301

HOSE-FUEL

$14.99

$

In Stock, only 1 left!

0

7

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

VENT HOSE ASM

Note: Not serviced separately

$

$

Not available

10

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

11

Toro 117-1221

CANISTER-CARBON, 800CC

$84.99

$

Usually ships in 3-6 days

0

12

Toro 114-0292

BRACKET-CANISTER, CARBON

$13.99

$

Usually ships in 3-6 days

0

13

Toro 119-0207-01

BRACKET-CANISTER

$22.99

$

Usually ships in 3-6 days

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 120-6446

HOSE-FUEL

$38.99

$

Usually ships in 3-6 days

0

19

Toro 116-2232

VALVE-CONTROL, VACUUM

$37.99

$

In Stock, only 2 left!

0

20

Toro 119-8501

HOSE-VENT, FORMED

$7.49

$

Usually ships in 3-6 days

0

21

Toro 119-8502

HOSE-VENT, FORMED

$7.49

$

Usually ships in 3-6 days

0

22

Toro 116-2469

STRAP-VELCRO, CABLE TIE

$19.99

$

Usually ships in 3-6 days

0
