79548 - Toro 48" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010) Control Assembly Parts Diagram

48" GrandStand Stand-On Mower

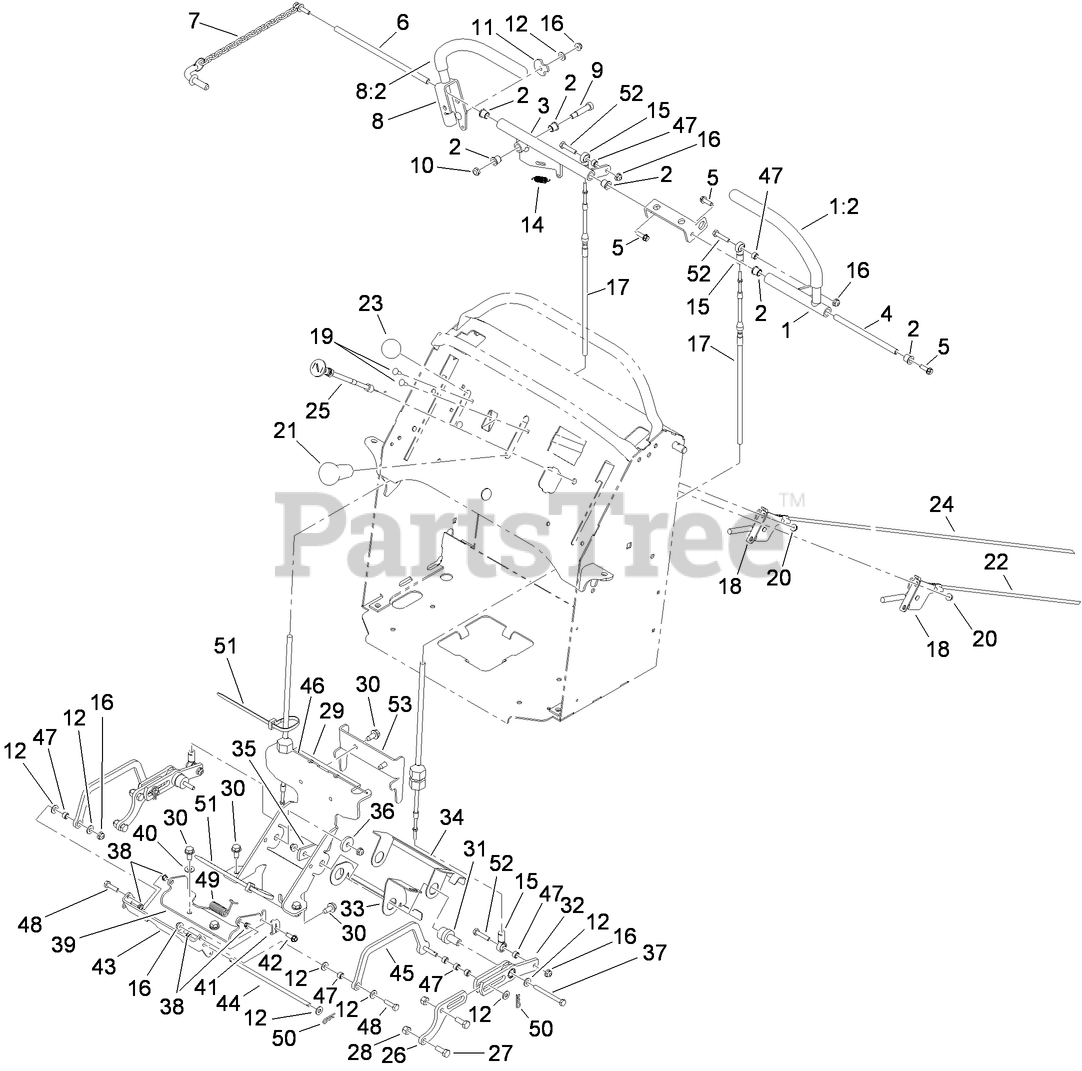

Control Assembly Parts Diagram

  • Title

1

Toro 119-7235

LH LEVER ASM

$

$

Not available

1:2

Toro 119-0222

GRIP

$9.49

$

Usually ships in 3-6 days

0

2

Toro 103-9928

BEARING

$8.49

$

In Stock, Qty 10

0

3

Toro 119-7236

MOTION CONTROL ASM

$

$

Not available

4

Toro 114-0260

SHAFT-PIVOT
(Superseded to 119-1885)

$25.99

$

Usually ships in 3-6 days

0

5

Toro 80-0700

SCREW-HH, TORX

$2.99

$

Usually ships in 3-6 days

0

6

Toro 114-1904

See Supercession: 119-1886
(Superseded to 119-1886)

$26.99

$

Usually ships in 3-6 days

0

7

Toro 114-0409

HOC PIN ASM

$58.99

$

In Stock, only 3 left!

0

8

Toro 119-1887

LEVER-MOTION, RH

$190.99

$

Usually ships in 3-6 days

0

8:2

Toro 119-0222

GRIP

$9.49

$

Usually ships in 3-6 days

0

9

Toro 114-0239

SCREW-HSH

$13.99

$

In Stock, only 1 left!

0

10

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

11

Toro 114-0268

CAM-LEVER

$6.99

$

Usually ships in 3-6 days

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 114-0249

SPRING-EXTENSION

$14.99

$

In Stock, Qty 9

0

15

Toro 117-6222

ROD END-BALL JOINT

$26.99

$

Usually ships in 3-6 days

0

16

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 117-0474

CABLE-CONTROL, TRACTION

$237.99

$

Usually ships in 3-6 days

0

18

Toro 110-5547

LEVER-CONTROL

$44.99

$

In Stock, Qty 5

0

19

Toro 1-807533

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

20

Toro 3290-148

NUT-HF

$0.99

$

In Stock, Qty 7

0

21

Toro 99-7981

KNOB-GRIP, SOFT

$55.99

$

Usually ships in 3-6 days

0

22

Toro 117-9706

CABLE-SPEED

$53.99

$

Usually ships in 3-6 days

0

23

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0

24

Toro 119-6654

CABLE-THROTTLE

$51.99

$

In Stock, only 4 left!

0

25

Toro 119-6655

CONTROL-CHOKE, PUSH/PULL

$62.99

$

In Stock, only 2 left!

0

26

Toro 114-3547

ARM-CONTROL

$24.99

$

Usually ships in 3-6 days

0

27

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

28

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

29

Toro 119-2380-01

MOUNT-LINKAGE, DRIVE

$101.99

$

Usually ships in 3-6 days

0

30

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

31

Toro 119-2381

HUB-SHOULDER

$

$

Not available

32

Toro 119-2409

CONTROL FORK ASM

$

$

Not available

33

Toro 114-1993

LEVER-SWITCH

$

$

Not available

34

Toro 119-2414

LEVER-SWITCH

$

$

Not available

35

Toro 114-5155-03

ARM-SWITCH, STOP

$

$

Not available

36

Toro 65-8270

WASHER

$1.99

$

Usually ships in 3-6 days

0

37

Toro 321-14

SCREW-HH

$5.49

$

In Stock, Qty 7

0

38

Toro 119-2404

BUSHING-FLANGE, SPLIT

$4.99

$

Usually ships in 3-6 days

0

39

Toro 117-2681

BRACKET-SHIFTER

$

$

Not available

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Toro 106-7297

CLAMP-CABLE
(Superseded to 136-7191)

$5.49

$

In Stock, only 2 left!

0

42

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

43

Toro 117-2680

ARM-DUAL, SHIFTER

$

$

Not available

44

Toro 114-1978

PIN-HINGE

$

$

Not available

45

Toro 119-2402

SPEED CONTROL LINKAGE ASM

$129.99

$

Usually ships in 3-6 days

0

46

Toro 114-0433

CLIP-SPRING

$29.99

$

In Stock, only 1 left!

0

47

Toro 119-2408

BUSHING-ROLLER

$3.99

$

Usually ships in 3-6 days

0

48

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

49

Toro 106-2584

SPRING-TORSION

$15.99

$

Usually ships in 3-6 days

0

50

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

51

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

52

Toro 321-8

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

53

Toro 119-8764-01

BRACKET-PROTECT, CABLE

$

$

Not available
