79548 - Toro 48" GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010) Deck Assembly Parts Diagram

48" GrandStand Stand-On Mower

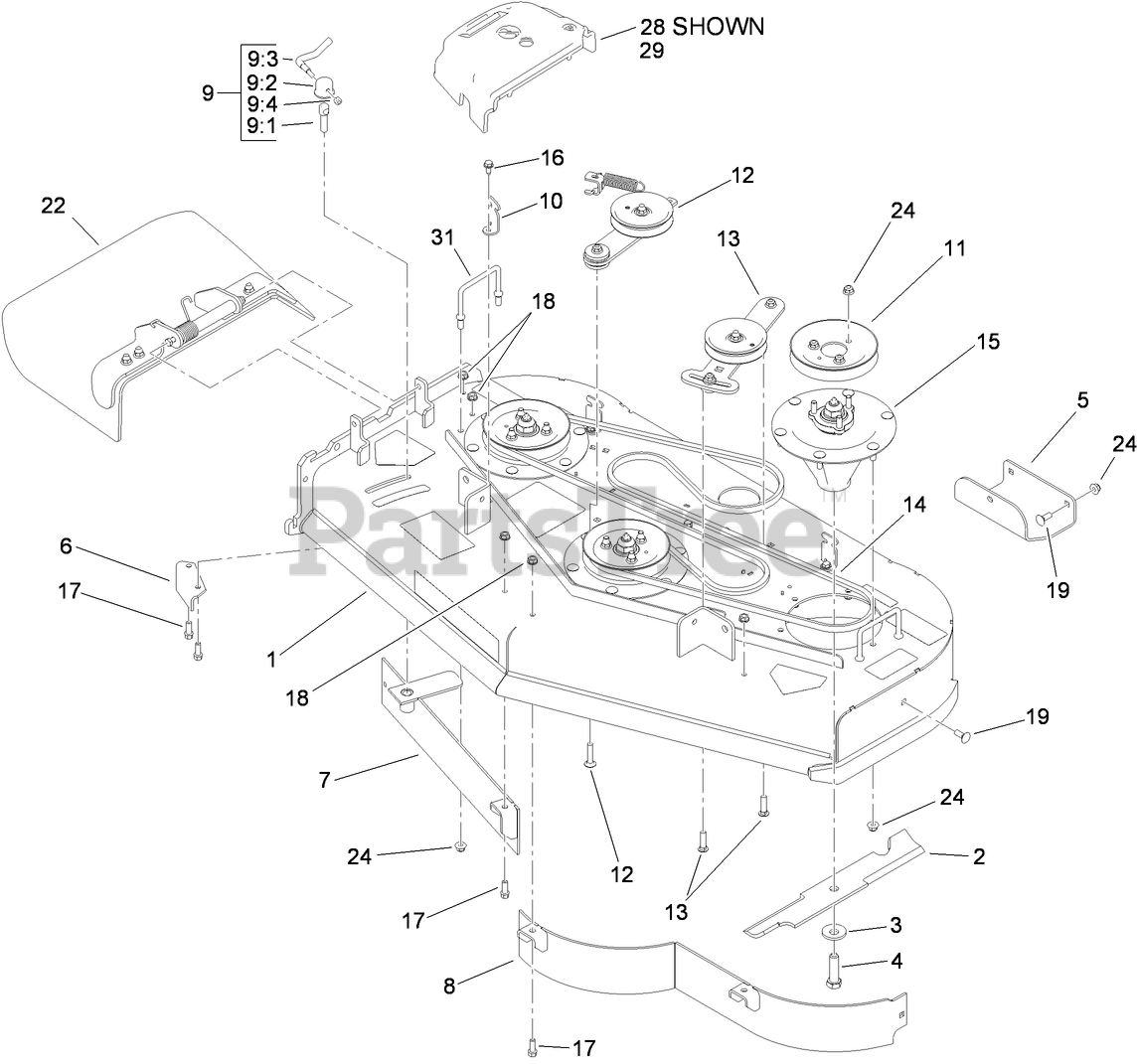

Deck Assembly Parts Diagram

  • Title

1

Toro 117-5764

DECK ASM

$

$

Not available

2

Toro 107-3192-03

BLADE-16.5 INCH (HIGH FLOW)

$34.99

$

In Stock, Qty 20+

0

3

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$6.49

$

In Stock, Qty 20+

0

4

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

5

Toro 114-1908-01

SKID

$93.99

$

Usually ships in 3-6 days

0

6

Toro 107-8541-01

BAFFLE-DISCHARGE

$25.99

$

In Stock, only 1 left!

0

7

Toro 114-1870-01

BAFFLE ASM

$

$

Not available

8

Toro 117-0410-01

48 INCH BAFFLE ASM

$306.99

$

Usually ships in 3-6 days

0

9

Toro 107-1664

LEVER ASM

$84.99

$

In Stock, only 2 left!

0

9:1

Toro 106-3239

SCREW-LOCK

$57.99

$

Usually ships in 3-6 days

0

9:2

Toro 107-1644

CAP-LOCK

$45.99

$

In Stock, only 2 left!

0

9:3

Toro 106-3241

See Supercession: 107-1664
(Superseded to 107-1664)

$84.99

$

In Stock, only 2 left!

0

9:4

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 117-5758-03

BRACKET-COVER

$14.99

$

Usually ships in 3-6 days

0

11

Toro 115-7440

PULLEY

$70.99

$

In Stock, only 2 left!

0

12

Toro 117-0445

SPRING IDLER ASM

$240.99

$

Usually ships in 3-6 days

0

13

Toro 117-0446

IDLER ADJUST ASM

$212.99

$

In Stock, only 1 left!

0

14

Toro 114-0453

BELT-V

$80.99

$

In Stock, only 2 left!

0

15

Toro 117-6158

See Supercession: 119-8560
(Superseded to 119-8560)

$665.99

$

In Stock, Qty 10

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

18

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 114-1910

DEFLECTOR ASM

$306.99

$

Usually ships in 3-6 days

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 109-6935

COVER-BELT, RH

$43.99

$

In Stock, Qty 18

0

29

Toro 109-6936

COVER-BELT, LH

$43.99

$

In Stock, Qty 20+

0

31

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0
