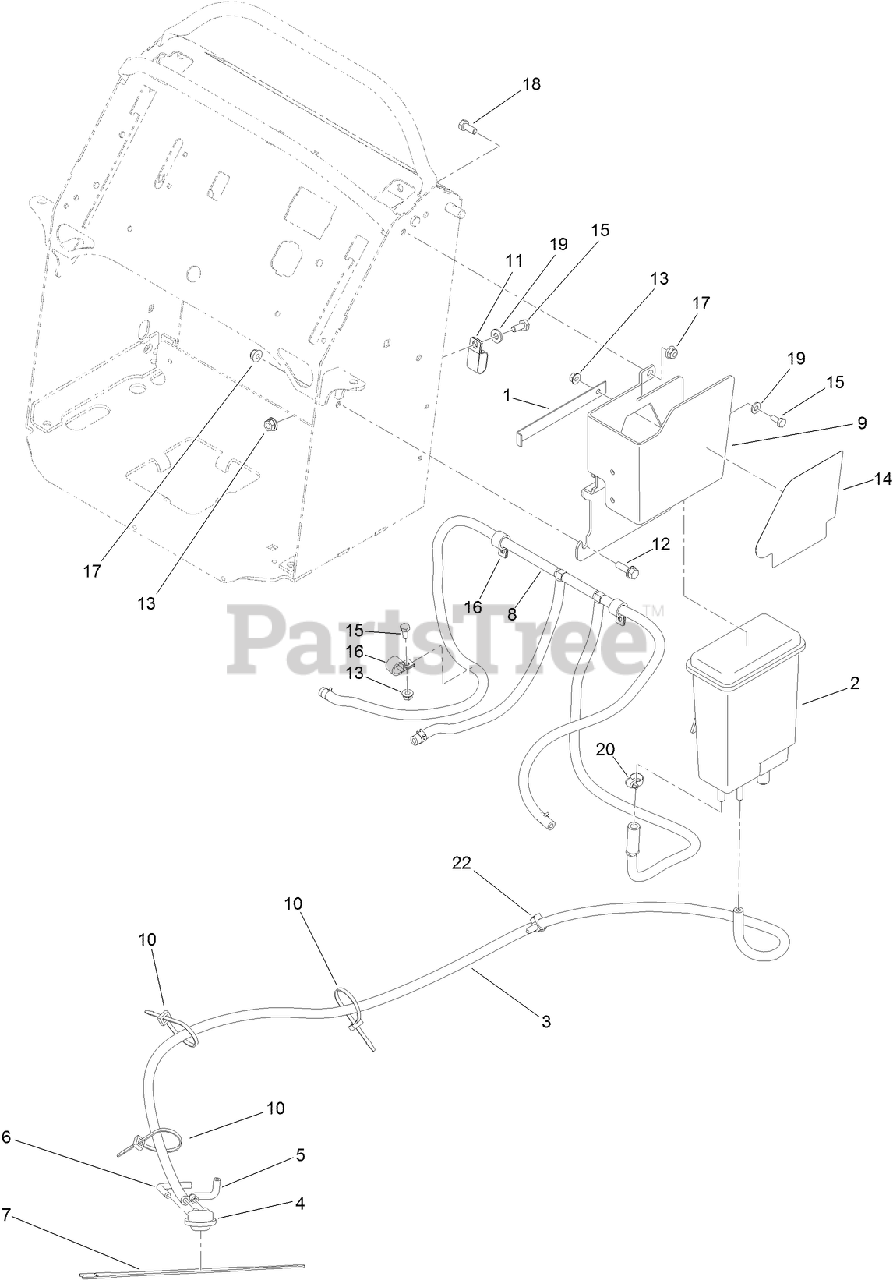

79548 - Toro 48" GrandStand Stand-On Mower (SN: 314000001 - 314999999) (2014) Carbon Canister Assembly Parts Diagram

48" GrandStand Stand-On Mower

Carbon Canister Assembly Parts Diagram

  • Title

1

Toro 120-8307-01

PLATE-LOC

$22.99

$

Usually ships in 3-6 days

0

2

Toro 117-9795

CANISTER-CARBON, 1200CC

$

$

Not available

3

Toro 120-6493

HOSE-FUEL

$38.99

$

Usually ships in 3-6 days

0

4

Toro 116-2232

VALVE-CONTROL, VACUUM

$37.99

$

In Stock, only 2 left!

0

5

Toro 119-8502

HOSE-VENT, FORMED

$7.49

$

Usually ships in 3-6 days

0

6

Toro 119-8501

HOSE-VENT, FORMED

$7.49

$

Usually ships in 3-6 days

0

7

Toro 116-2469

STRAP-VELCRO, CABLE TIE

$19.99

$

Usually ships in 3-6 days

0

8

VENT HOSE ASM

Note: Not serviced separately

$

$

Not available

9

Toro 119-7385-01

PLATE- ADAPTER

$169.99

$

Usually ships in 3-6 days

0

10

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

11

Toro 2412-105

CLAMP-TUBE, DOUBLE

$3.49

$

Usually ships in 3-6 days

0

12

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

13

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

14

Toro 121-5972

DECAL-SERVICE/SPARK ARREST

$

$

Not available

15

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

22

Toro 32180-040

CLIP-HARNESS

$2.99

$

Usually ships in 3-6 days

0
