79558 - Toro 48" GrandStand Stand-On Mower (SN: 290000001 - 290003000) (2009) Fuel Tank Assembly Parts Diagram

48" GrandStand Stand-On Mower

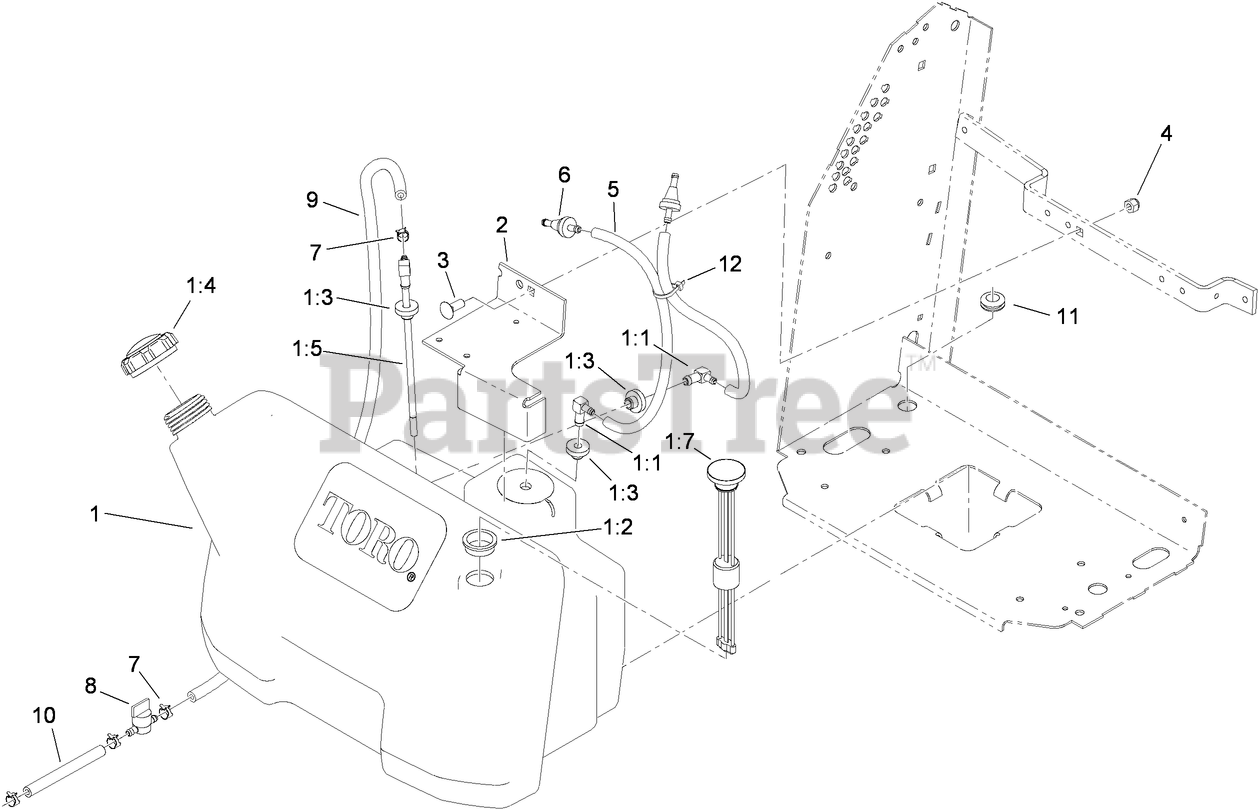

Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 117-9672

TANK ASM

$

$

Not available

1:1

Toro 1-643172

ELBOW-90 DEG

$12.99

$

In Stock, Qty 7

0

1:2

Toro 95-8972

GROMMET

$12.99

$

In Stock, only 4 left!

0

1:3

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

1:4

Toro 109-9619

CAP-FUEL

$77.99

$

Usually ships in 3-6 days

0

1:5

Toro 114-1928

FITTING-FUEL, SCREEN TUBE

$

$

Not available

1:7

Toro 99-7262

GAUGE-FUEL
(Superseded to 145-2298)

$78.99

$

Usually ships in 3-6 days

0

2

Toro 114-1952-01

SUPPORT-TANK

$

$

Not available

3

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 109-0294

HOSE-FUEL

$7.49

$

Usually ships in 3-6 days

0

6

Toro 71-9280

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

7

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

8

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

9

Toro 109-3491

HOSE-FUEL

$29.99

$

Usually ships in 3-6 days

0

10

Toro 109-0678

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

11

Toro 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
