79559 - Toro 52" GrandStand Stand-On Mower (SN: 290005001 - 290999999) (2009) Wheel Assembly Parts Diagram

52" GrandStand Stand-On Mower

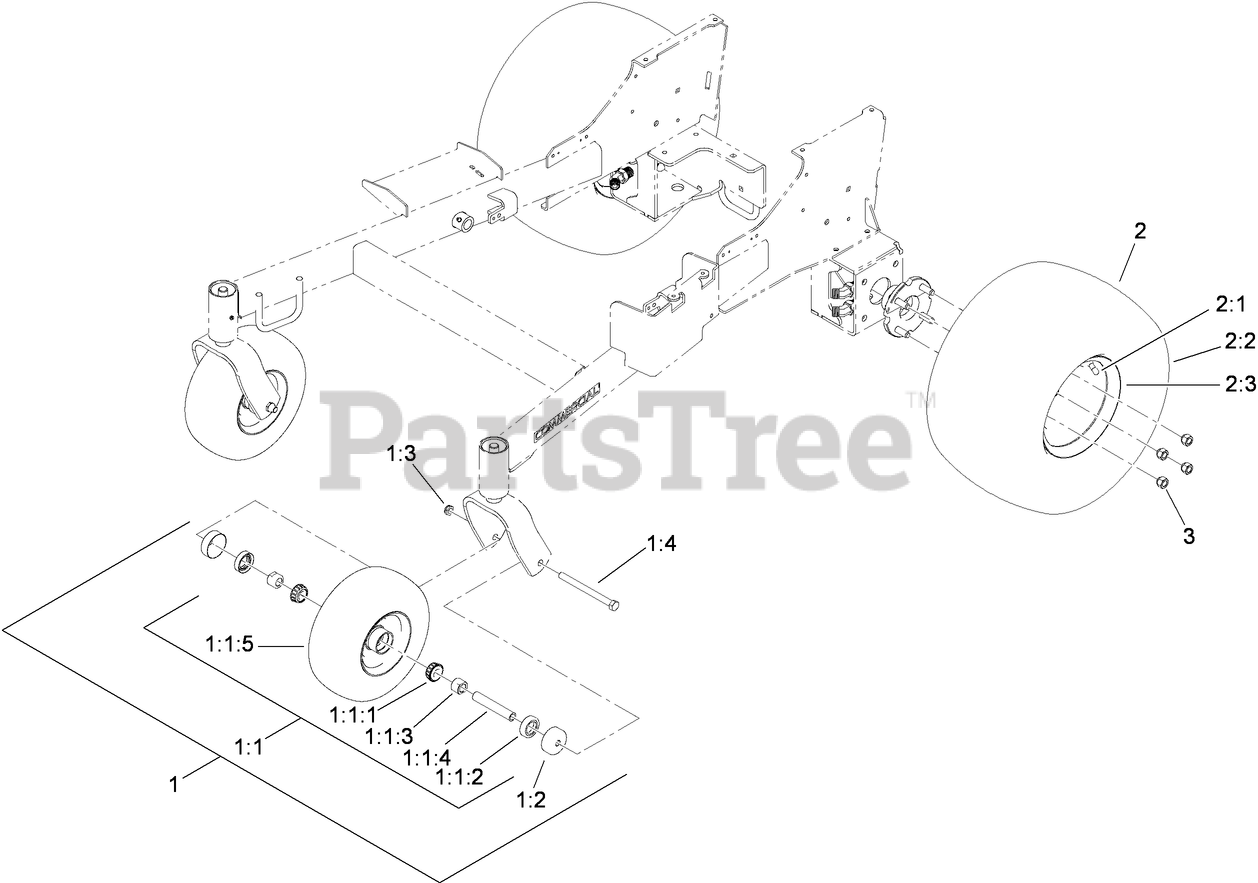

Wheel Assembly Parts Diagram

  • Title

1

Toro 112-3810

WHEEL/TIRE AND BEARING ASM

$235.99

$

In Stock, only 3 left!

0

1:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:1:1

Toro 1-633585

BEARING-CONE, TAPER

$25.99

$

In Stock, Qty 20+

0

1:1:2

Toro 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

1:1:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

1:1:4

Toro 103-3157

See Supercession: 126-5359
(Superseded to 126-5359)

$20.99

$

In Stock, only 2 left!

0

1:1:5

Toro 110-9965

WHEEL AND TIRE ASM

$197.99

$

In Stock, only 3 left!

0

1:2

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

1:3

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

1:4

Toro 325-20

SCREW-HH

$8.49

$

In Stock, Qty 10

0

2

Toro 117-0429

WHEEL ASM

$421.99

$

Usually ships in 3-6 days

0

2:1

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

2:2

Toro 117-0428

TIRE

$323.99

$

Usually ships in 3-6 days

0

2:3

Toro 106-8133

RIM-8 INCH

$

$

Not available

3

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0
