8035 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) HOUSING AND SHROUD GROUP MODELS: 8035 Parts Diagram

Walk-Behind Mower

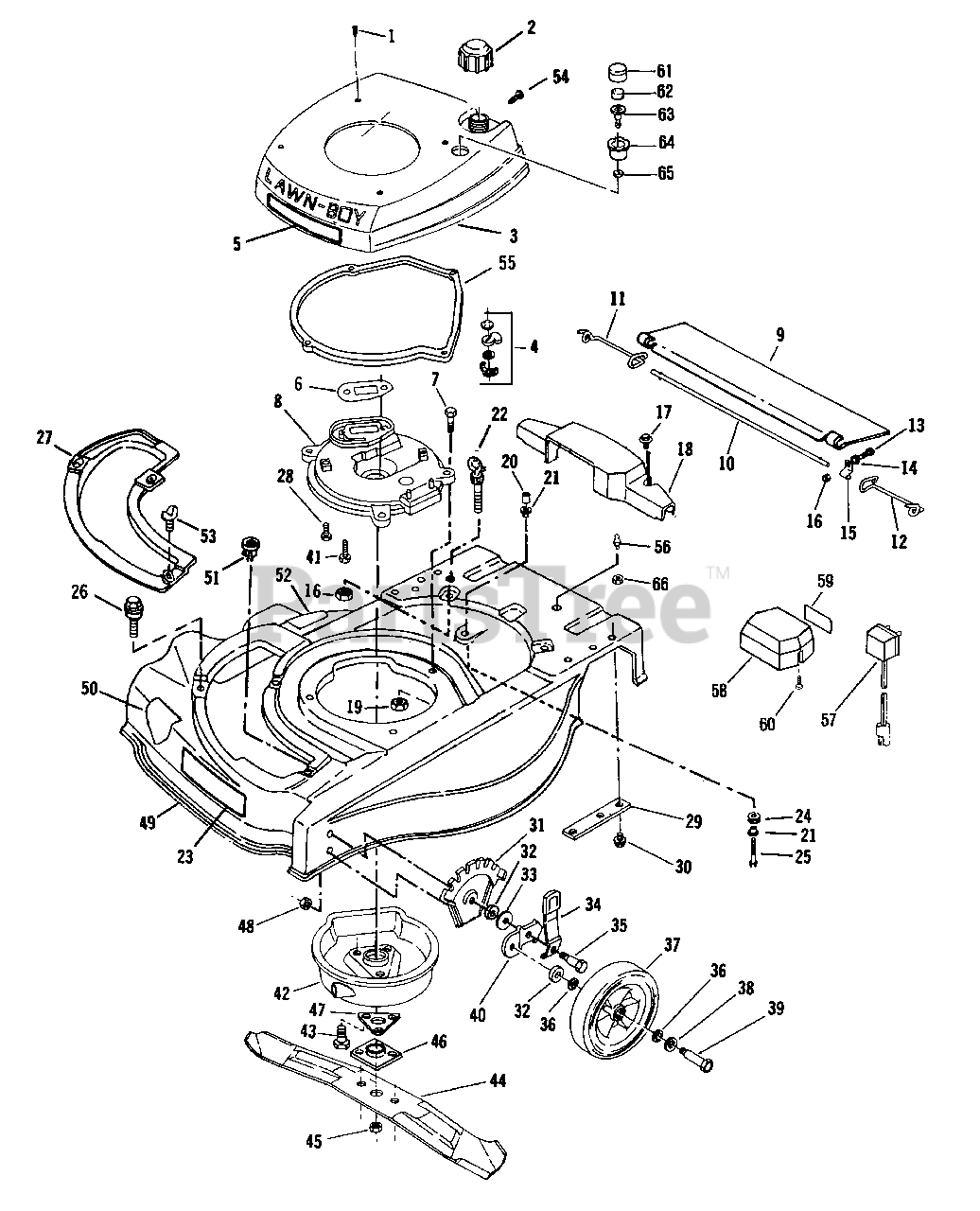

HOUSING AND SHROUD GROUP MODELS: 8035 Parts Diagram

  • Title

1

Lawn-Boy 611381

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 682755

Fuel Cap Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$29.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 683507

Shroud Assembly
(Superseded to 684420)

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Model 8035.

$506.99

$

Usually ships in 3-6 days

0

Lawn-Boy 683505

Shroud Assembly
(Superseded to 684414)

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Model R8035AE.

$431.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 683034

Fuel Shut-Off Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 612044

Decal-Special

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 610367

Gasket
(Superseded to 613755)

Note: Important Note: Replacement parts may not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 611774

Screw-Muffler Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 609989

Plate-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$161.99

$

Usually ships in 3-6 days

0

Lawn-Boy 611305

Plate-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Model R8035AE.

$

$

Not available

9

Lawn-Boy 611264

Shield-Trailing
(Superseded to 611263)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 608160

Rod-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 608497

Spring-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 608498

Spring-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 609891

Screw-Trailing Shield
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 610556

Washer-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

15

Lawn-Boy 608161

Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 602315

Nut-Trail Shield and Eyebolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 606452

Screw-Axle Cover Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611297

Cover-Drive Axle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 608311

Nut-Muffler Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

20

Lawn-Boy 609588

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 607605

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 611243

Eyebolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 611579

Decal-Manual Start

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 610145

Grommet

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611595

Screw-Transmission to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 607809

Screw-Plate and Chute Mtg.
(Superseded to 614677)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 4 left!

0

27

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 609994

Screw-Muffler Plate to Cylinder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 610827

Plate-Handle Brk't. Support

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 607188

Screw-Handle Brk't. to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 610826

Plate-Height Adjust

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 603620

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 608834

Washer-Wheel Mounting Brk't.

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 1 left!

0

34

Lawn-Boy 681903

Knob and Spring Assem.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 4 left!

0

37

Lawn-Boy 678636

Wheel-Front

Note: Important Note: Replacement parts may not always be available in matching colors.

$41.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 605256

Washer-Wheel Bolt Hd.

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

39

Lawn-Boy 603441

Bolt-Wheel-Front

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.49

$

In Stock, Qty 5

0

40

Lawn-Boy 608833

Bracket-Wheel Hgt. Adjust.
(Superseded to 608833-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$31.99

$

In Stock, only 3 left!

0

41

Lawn-Boy 607601

Screw-Muffler Plate to Cylinder

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 10

0

42

Lawn-Boy 682873

Muffler Cover Assem.
(Superseded to 682873-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 609471

Screw-Crankshaft Support

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 13

0

44

Lawn-Boy 682915

Blade-21"
(Superseded to 612543-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$37.99

$

In Stock, Qty 19

0

45

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 5

0

46

Lawn-Boy 677525

Collar and Plate Assem.

Note: Important Note: Replacement parts may not always be available in matching colors.

$56.99

$

In Stock, only 3 left!

0

47

Lawn-Boy 609980

Support-Crankshaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 603773

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

49

Lawn-Boy 683509

Housing Assembly
(Superseded to 684512)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, only 3 left!

0

51

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

52

Lawn-Boy 610860

Decal-Discharge Area

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 606733

Wing Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 2 left!

0

54

Lawn-Boy 608997

Screw-Shroud to C.D. Brk't.

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 1 left!

0

55

Lawn-Boy 611379

Spacer-Shroud to Base

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 609034

Ball Stud

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 681369

Battery Charger Assem.
(Superseded to 131-0848)

Note: Important Note: Replacement parts may not always be available in matching colors.

$86.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 682869

Battery Assem.
(Superseded to 94-1614)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 608649

Decal-Caution

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 609022

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 611072

Primer Bulb

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Model 8035.

$

$

Not available

62

Lawn-Boy 611114

Filter

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Model 8035.

$

$

Not available

63

Lawn-Boy 612401

Base Primer Bulb

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Model 8035.

$4.99

$

Usually ships in 3-6 days

0

64

Lawn-Boy 612402

Cup Primer

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Model 8035.

$

$

Not available

65

Lawn-Boy 612400

Locknut
(Superseded to 78-7170)

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Model 8035.

$1.49

$

Usually ships in 3-6 days

0

66

Lawn-Boy 311505

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
