81-16B801 (C-161) - Toro Lawn Tractor (1978) Head And Tail Lights Parts Diagram

Lawn Tractor

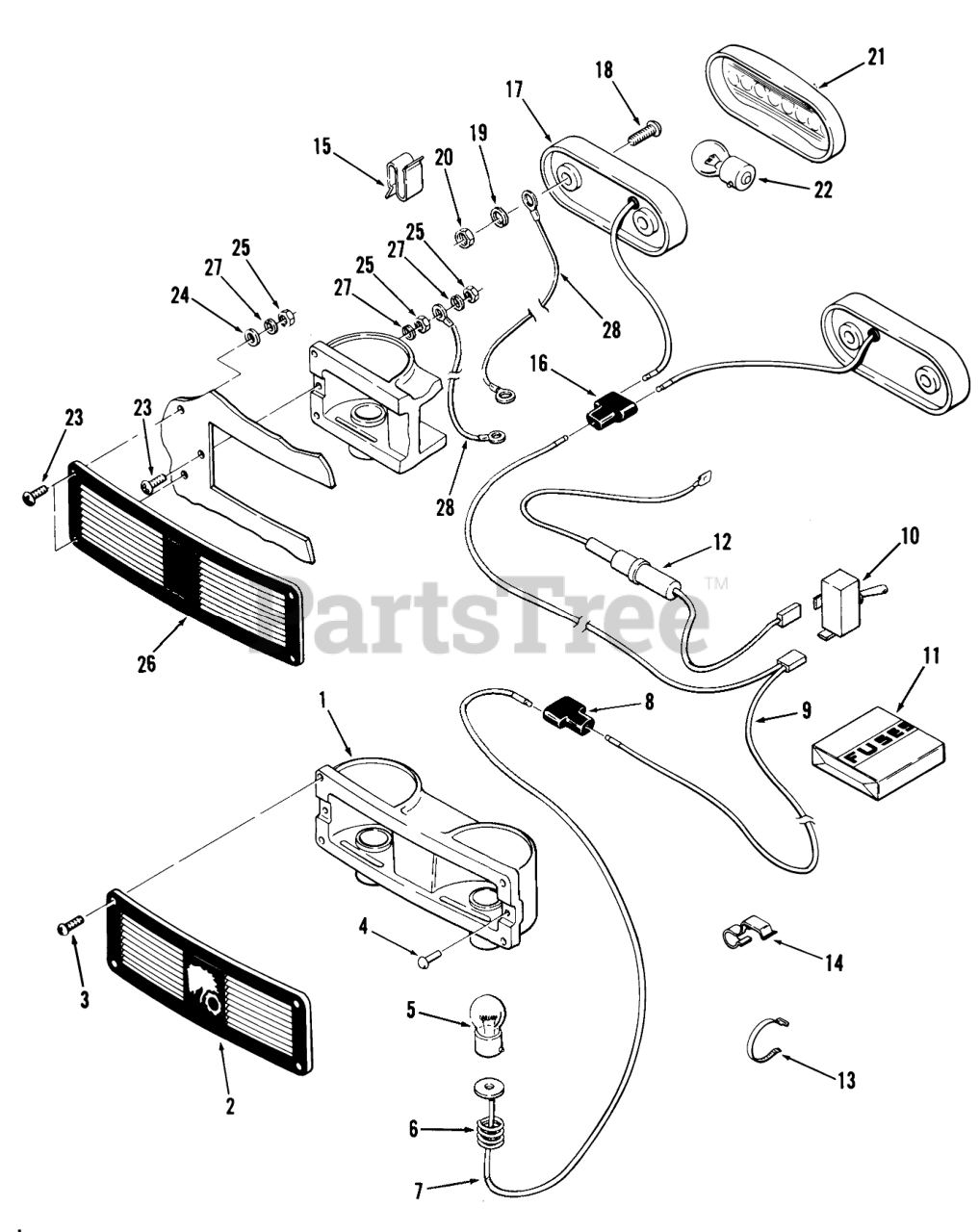

Head And Tail Lights Parts Diagram

  • Title

1

Toro 7223

DISCONTINUED

$

$

Not available

2

Toro 103771

See Supercession: 98-1713
(Superseded to 98-1713)

$99.99

$

In Stock, only 3 left!

0

3

Toro 7229

See Supercession: 88-2120
(Superseded to 88-2120)

$

$

Not available

4

Toro 923784

See Supercession: 3290-54
(Superseded to 3290-54)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 7228

BULB

$27.99

$

Usually ships in 3-6 days

0

6

Toro 7227

SPRING

$

$

Not available

7

Toro 7226

DISCONTINUED

$

$

Not available

8

Toro 7618

DISCONTINUED

$

$

Not available

9

Toro 103137

DISCONTINUED

$

$

Not available

Toro 106558

DISCONTINUED

$

$

Not available

10

Toro 102138

SWITCH-LIGHTS

$43.99

$

Usually ships in 3-6 days

0

11

Toro 101639

FUSE

$

$

Not available

12

Toro 101846

DISCONTINUED

$

$

Not available

13

Toro 100571

DISCONTINUED

$

$

Not available

14

Toro 8519

DISCONTINUED

$

$

Not available

15

Toro 3023

DISCONTINUED

$

$

Not available

16

Toro 7618

DISCONTINUED

$

$

Not available

17

Toro 105202

DISCONTINUED

$

$

Not available

18

Toro 910808

See Supercession: 3250-25
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

19

Toro 920079

See Supercession: 3253-17
(Superseded to 3253-17)

$0.99

$

In Stock, only 4 left!

0

20

Toro 915551

See Supercession: 3219-14
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

21

Toro 102884

See Supercession: 112564
(Superseded to 112564)

$10.99

$

In Stock, only 4 left!

0

22

Toro 8043

Bulb

$

$

Currently unavailable

23

Toro 107272

DISCONTINUED

Note: Later Models Built Using Pop Rivets 923787 To Fasten Light Housing 7223 To Hood 106828, and Pop Rivets 923797 To Fasten Tail Light AND Base 105202 To Fender 107404.

$

$

Not available

24

Toro 920003

DISCONTINUED

Note: Later Models Built Using Pop Rivets 923787 To Fasten Light Housing 7223 To Hood 106828, and Pop Rivets 923797 To Fasten Tail Light AND Base 105202 To Fender 107404.

$

$

Not available

25

Toro 915536

DISCONTINUED

Note: Later Models Built Using Pop Rivets 923787 To Fasten Light Housing 7223 To Hood 106828, and Pop Rivets 923797 To Fasten Tail Light AND Base 105202 To Fender 107404.

$

$

Not available

26

Toro 106829

DISCONTINUED

$

$

Not available

27

Toro 920077

DISCONTINUED

Note: Later Models Built Using Pop Rivets 923787 To Fasten Light Housing 7223 To Hood 106828, and Pop Rivets 923797 To Fasten Tail Light AND Base 105202 To Fender 107404.

$

$

Not available

28

Toro 106797

DISCONTINUED

$

$

Not available

9

Toro 106558

DISCONTINUED

$

$

Not available
