81245 (Z 340 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 260000001 - 260999999) (2006) 42IN DECK ASSEMBLY Parts Diagram

Precision Zero-Turn Mower

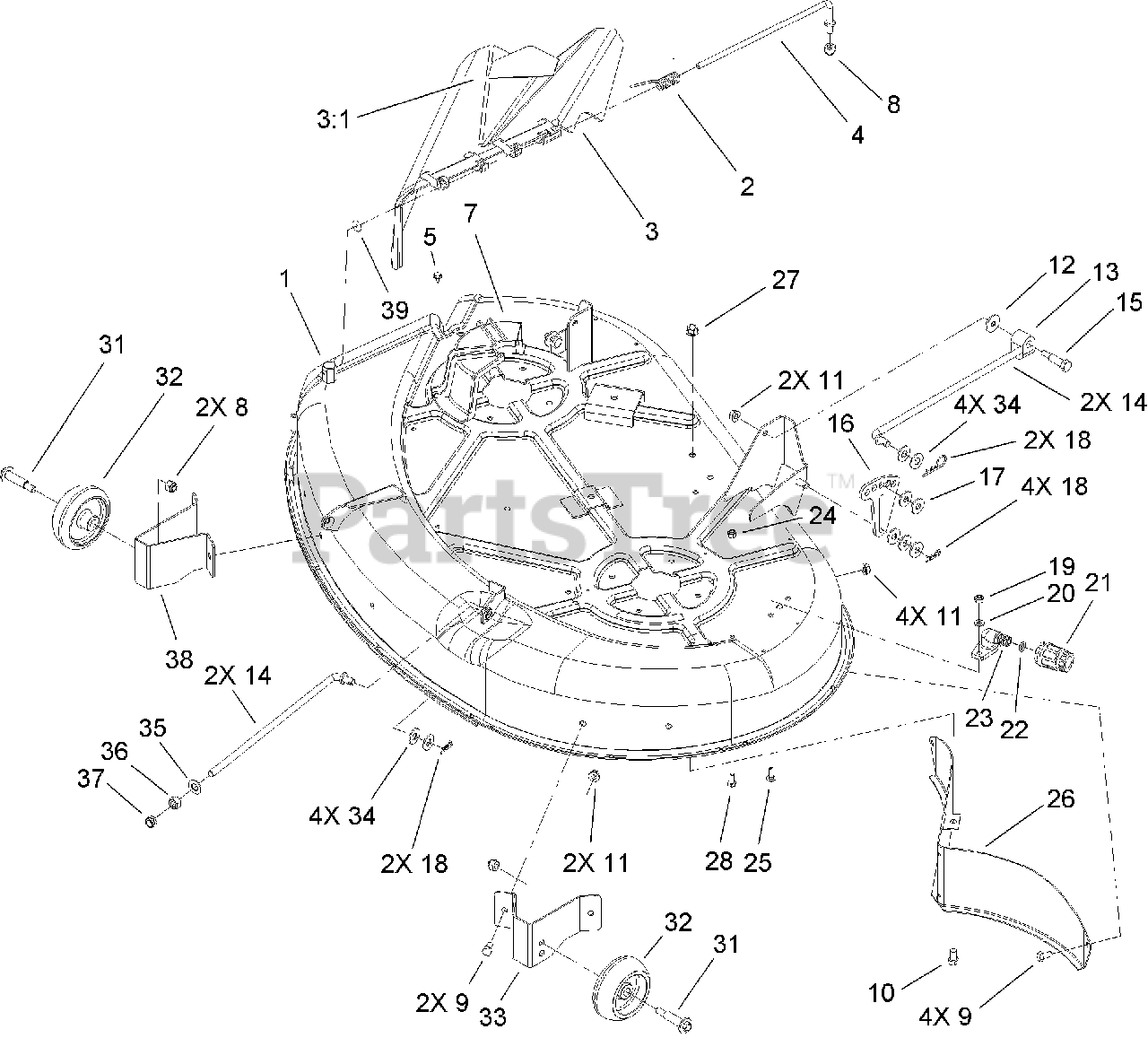

42IN DECK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 110-1897

42 INCH DECK ASM
(Superseded to 132-9332)

$

$

Not available

2

Lawn-Boy 57-6950

SPRING

$30.99

$

In Stock, Qty 6

0

3

Lawn-Boy 93-0317

DEFLECTOR ASM

$94.99

$

In Stock, Qty 7

0

3:1

Lawn-Boy 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 9

0

4

Lawn-Boy 95-1661

ROD-PIVOT

$23.99

$

In Stock, only 3 left!

0

5

Lawn-Boy 32104-76

SCREW

$2.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 88-4030

LH BELT GUIDE-DECK

Note: Not illustrated

$46.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 88-4020

RH BELT GUIDE-DECK

$46.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 323-34

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 32128-25

NUT-HF

$3.99

$

In Stock, Qty 9

0

12

Lawn-Boy 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 88-4230

TRUNNION-HOC

$16.99

$

In Stock, only 4 left!

0

14

Lawn-Boy 105-3437

ROD-HANGER

$36.99

$

In Stock, only 4 left!

0

15

Lawn-Boy 7-0030

BOLT-SHOULDER
(Superseded to 704936)

$

$

Not available

16

Lawn-Boy 88-5570-03

LINK-ADJUSTING, HOC

$16.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 80-6990

WASHER-HARDENED

$6.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 95-3270

CONNECTOR-HOSE

$27.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 46-6290

O-RING

$3.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$7.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 3229-1

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 108-8513-03

BAFFLE-REAR

$222.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 56-6591

BOLT-WHEEL

$9.49

$

In Stock, only 2 left!

0

32

Lawn-Boy 701756

WHEEL-GAGE

$8.99

$

In Stock, Qty 10

0

33

Lawn-Boy 106-8702-03

BRACKET-GAGE WHEEL, FRONT (LH)

$33.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35

Lawn-Boy 3256-25

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

36

Lawn-Boy 3219-4

NUT-HEX

$3.49

$

In Stock, only 2 left!

0

37

Lawn-Boy 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

38

Lawn-Boy 106-8701-03

BRACKET-GAGE WHEEL, FRONT (RH)

$55.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 106-8745

O-RING

$1.99

$

In Stock, only 2 left!

0
