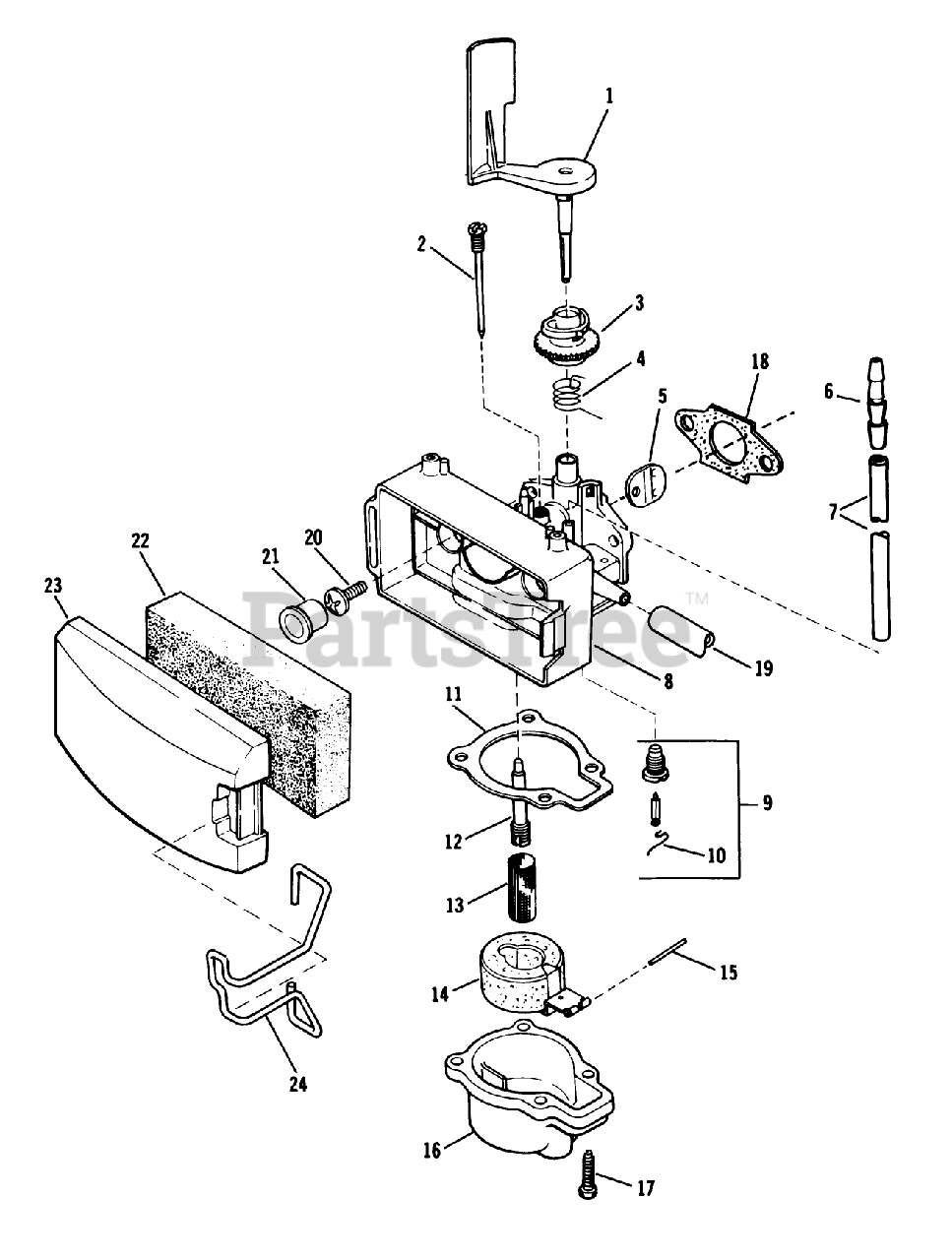

8403 - Lawn-Boy Walk-Behind Mower (SN: D00000001 - D99999999) (1985) Carburetor Group Parts Diagram

Walk-Behind Mower

Carburetor Group Parts Diagram

  • Title

Lawn-Boy 682815

See Supercession: 92-9696
(Superseded to 92-9696)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$318.99

$

Usually ships in 3-6 days

0

1

Lawn-Boy 611405

See Supercession: 104-4430
(Superseded to 104-4430)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$15.99

$

In Stock, Qty 10

0

2

Lawn-Boy 682567

NEEDLE ADJ. AY S

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 610834

COLLAR-ADJUST, AIRVANE

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 13

0

4

Lawn-Boy 610833

SPRING-THRO. S

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 609632

DISC S

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 9

0

6

611419

REDUCER-CONNECTOR

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 611420

TUBING S

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611421

CARB BODY S

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$91.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 681741

See Supercession: 92-9697
(Superseded to 92-9697)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$29.99

$

In Stock, Qty 16

0

10

Lawn-Boy 603145

See Supercession: 92-9697
(Superseded to 92-9697)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$29.99

$

In Stock, Qty 16

0

11

Lawn-Boy 602850

See Supercession: 98-1362
(Superseded to 98-1362)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 605140

See Supercession: 612214
(Superseded to 612214)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$99.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611071

FILTER-FUEL VS

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 678113

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 300096

See Supercession: 92-6389
(Superseded to 92-6389)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 11

0

16

Lawn-Boy 610416

DISCONTINUED
(Superseded to 92-6374)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 608850

SCREW-HH

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 609476

GASKET CARB S

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 611523

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 611523

DISCONTINUED

Note: Models 6262, 6302, and 6211 only

$

$

Not available

19

Lawn-Boy 610633

See Supercession: 112-7048
(Superseded to 112-7048)

Note: Model 8403 only

$7.99

$

In Stock, only 3 left!

0

19

Lawn-Boy 610633

See Supercession: 112-7048
(Superseded to 112-7048)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$7.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 609482

SCREW

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 611545

See Supercession: 93-4320
(Superseded to 93-4320)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 609493

See Supercession: 107-4621
(Superseded to 107-4621)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 611377

See Supercession: 93-1231
(Superseded to 93-1231)

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 610383

RETAINER-COVER, FILTER

Note: Important Note: Painted, plastic, or fiberglass replacement parts may not always be available in matching colors.

$9.99

$

In Stock, Qty 20+

0
