8461 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) CARBURETOR GROUP MODELS: 8461 Parts Diagram

Walk-Behind Mower

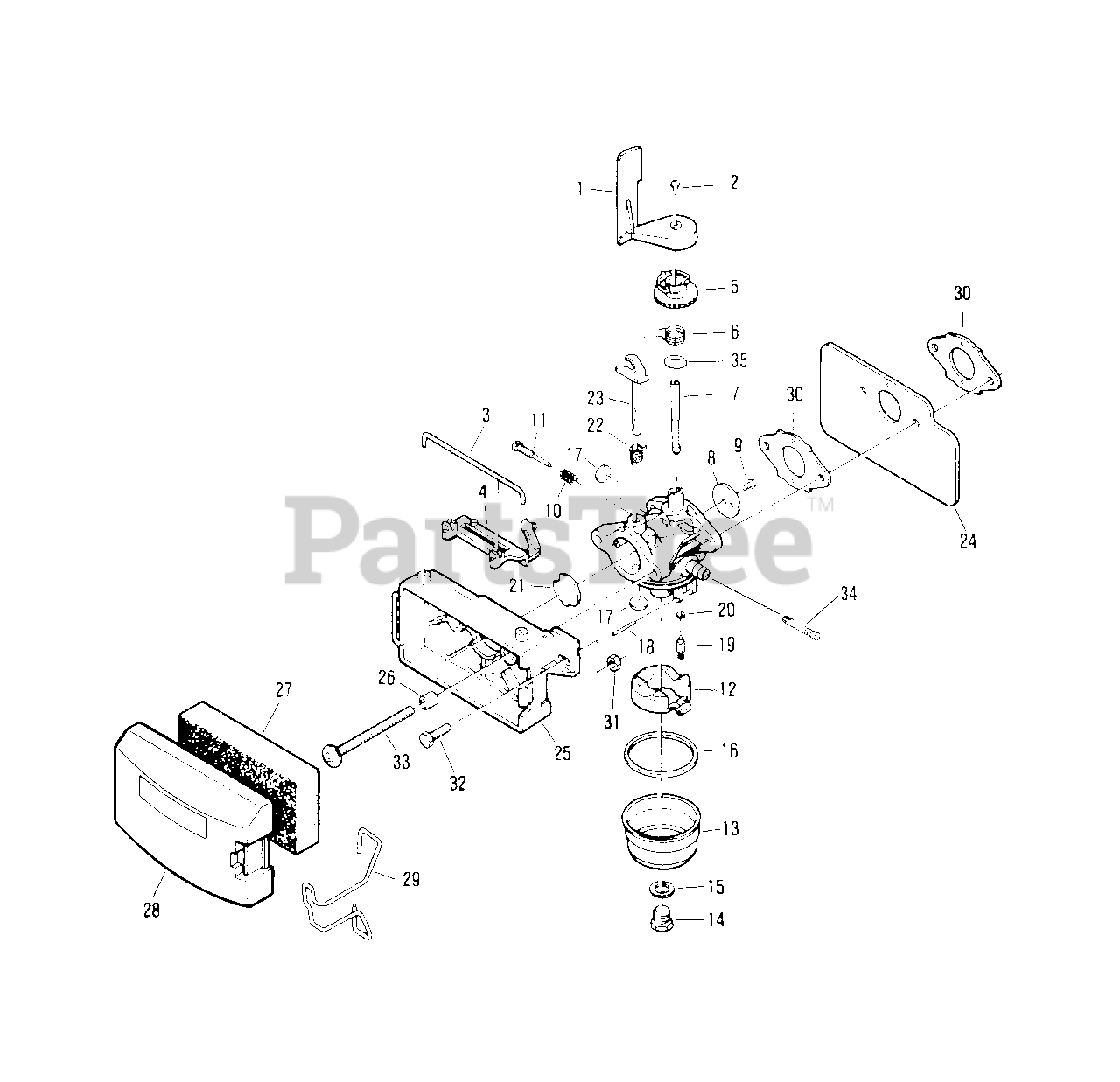

CARBURETOR GROUP MODELS: 8461 Parts Diagram

  • Title

Lawn-Boy 683632

Carburetor and Air Vane Assembly
(Superseded to 684352)

Note: Important Note: Replacement parts may not always be available in matching colors.

$433.99

$

Usually ships in 3-6 days

0

1

Lawn-Boy 612505

Air Vane

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 605522

Screw-Air Vane

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 610165

Retainer-Speed Control Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 13

0

4

Lawn-Boy 612502

Control Lever-Governor

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 612757

Collar

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 8

0

6

Lawn-Boy 613142

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.99

$

In Stock, only 1 left!

0

Lawn-Boy 683780

Kit-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Shaft-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Valve-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Screw-Throttle Valve

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683779

Kit-Idle Neddle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Spring-Idle Needle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Needle-Idle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 683783

Kit-Float Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683782

Kit-Bowl

Note: Important Note: Replacement parts may not always be available in matching colors.

$68.99

$

Usually ships in 3-6 days

0

13

Bowl-Fuel

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Screw-Bowl Retainer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Kit-Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683778

Kit-Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Gasket-Bowl Retainer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Gasket-Fuel Bowl

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683777

Kit-Repair (Overhaul)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Plug-Welch

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Shaft-Float

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Valve-Inlet Needle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Seat-Valve

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683781

Kit-Choke

Note: Important Note: Replacement parts may not always be available in matching colors.

$56.99

$

Usually ships in 3-6 days

0

21

Valve-Choke

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Spring-Choke Return

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Shaft-Choke

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 612790

Heat Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 612504

Base-Air Filter

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 612503

Spacer-Air Filter Base

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 609493

Element-Air Filter
(Superseded to 107-4621)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 611377

Cover-Air Filter
(Superseded to 93-1231)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 610383

Retainer-Air Filter Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 612574

Gasket-Carb. to Crankcase Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 11

0

31

Lawn-Boy 328712

Nut-Hex (Throttle Cable)
(Superseded to 3217-26)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 7

0

32

Lawn-Boy 314576

Screw (Throttle Cable)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 612507

Screw-Carburetor Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 612974

Fuel Filter

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.99

$

In Stock, only 3 left!

0

35

Lawn-Boy 308052

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

Lawn-Boy 612781

Fuel Line (8461)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
