851002 - Ariens 36" Snow Blower for Mammoth 850 (SN: 000101 & Above) Housing - 36" Parts Diagram

36" Snow Blower for Mammoth 850

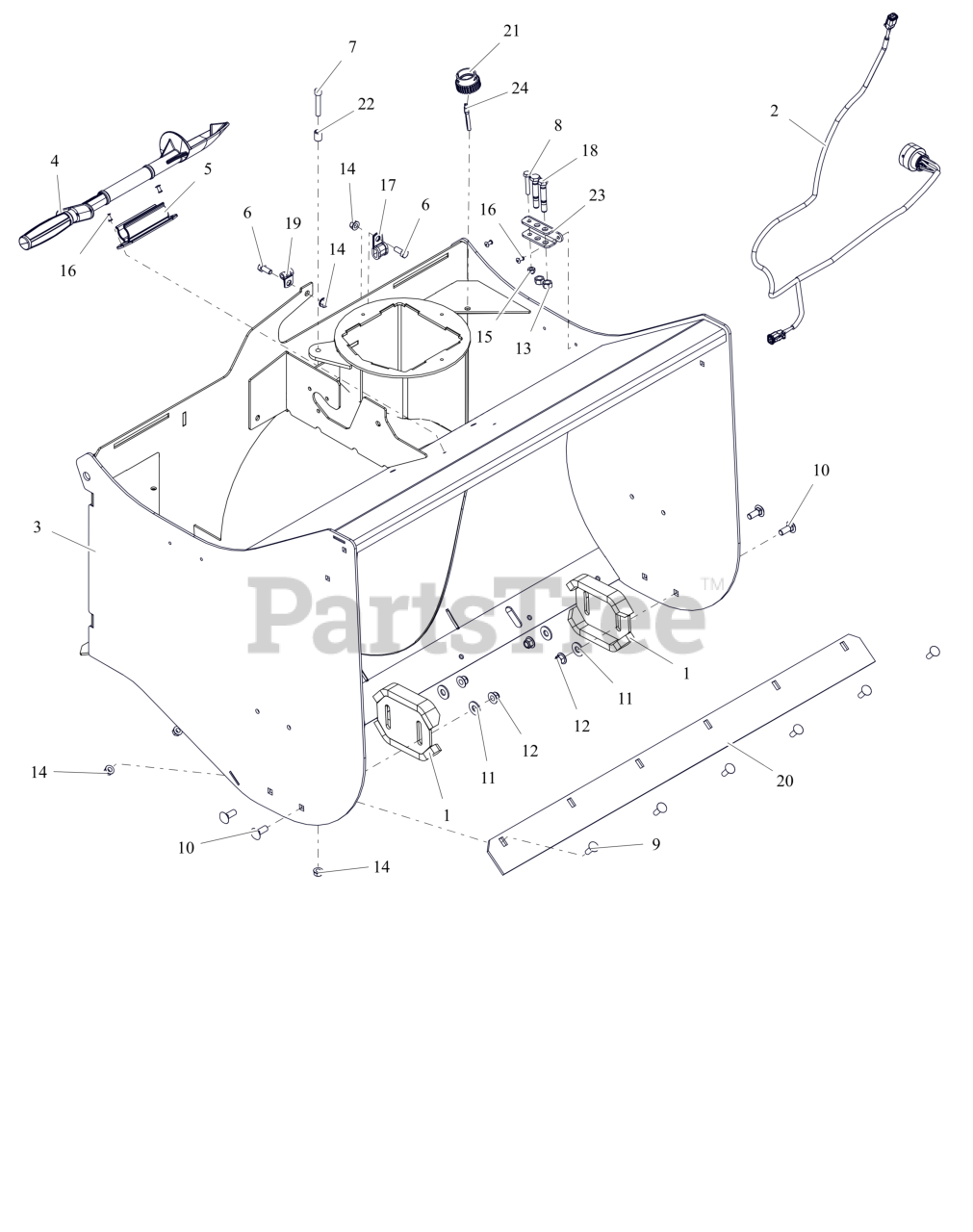

Housing - 36" Parts Diagram

  • Title

1

Ariens 04148900

RUNNER, SKID SHOE

$

$

Currently unavailable

2

Ariens 09445400

HARNESS, BLOWER

$309.99

$

Usually ships in 4-12 days

0

3

Ariens 55101400

WLDMT, HOUSING 36" - W/DECAL

$2262.99

$

Usually ships in 4-12 days

0

4

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$22.99

$

In Stock, only 2 left!

0

5

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

6

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

7

Ariens 05902202

SCR, SKH .312-18X1.750 GR8 ZC120

$

$

Currently unavailable

8

Ariens 05902250

BLT, HEX 0.25-28X1.5 G5 ZCC

$1.99

$

Usually ships in 4-12 days

0

9

Ariens 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

11

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06501021

NUT, NYL .25-28 ZCC

$1.99

$

Usually ships in 4-12 days

0

16

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07002016

CLAMP, DOUBLE 5/16", 3/8" MNT

$

$

Currently unavailable

18

Ariens 07002026

BOLT, SHEAR - .375-16 X 2.220

$20.99

$

Usually ships in 4-12 days

0

19

Ariens 09447900

CLAMP, CABLE .250"

$

$

Currently unavailable

20

Ariens 09452000

EDGE, CUTTING, 36" BLOWER
(Superseded to 09452059)

$94.99

$

Usually ships in 4-12 days

0

21

Ariens 21583700

CAP, CONNECTOR - AHDC04-18

$31.99

$

Usually ships in 4-12 days

0

22

Ariens 30130100

TUBE, ROUND .328 x .500 x .690

$

$

Currently unavailable

23

Ariens 30130200

HOLDER, SHEAR BOLT - MAMMOTH

$21.99

$

Usually ships in 4-12 days

0

24

Not Available thru Ariens

$

$

Not available
