885003 - Gravely 40" Deck for 2-Wheel Tractor (SN: 010000 & Above) Mower Drive Parts Diagram

40" Deck for 2-Wheel Tractor

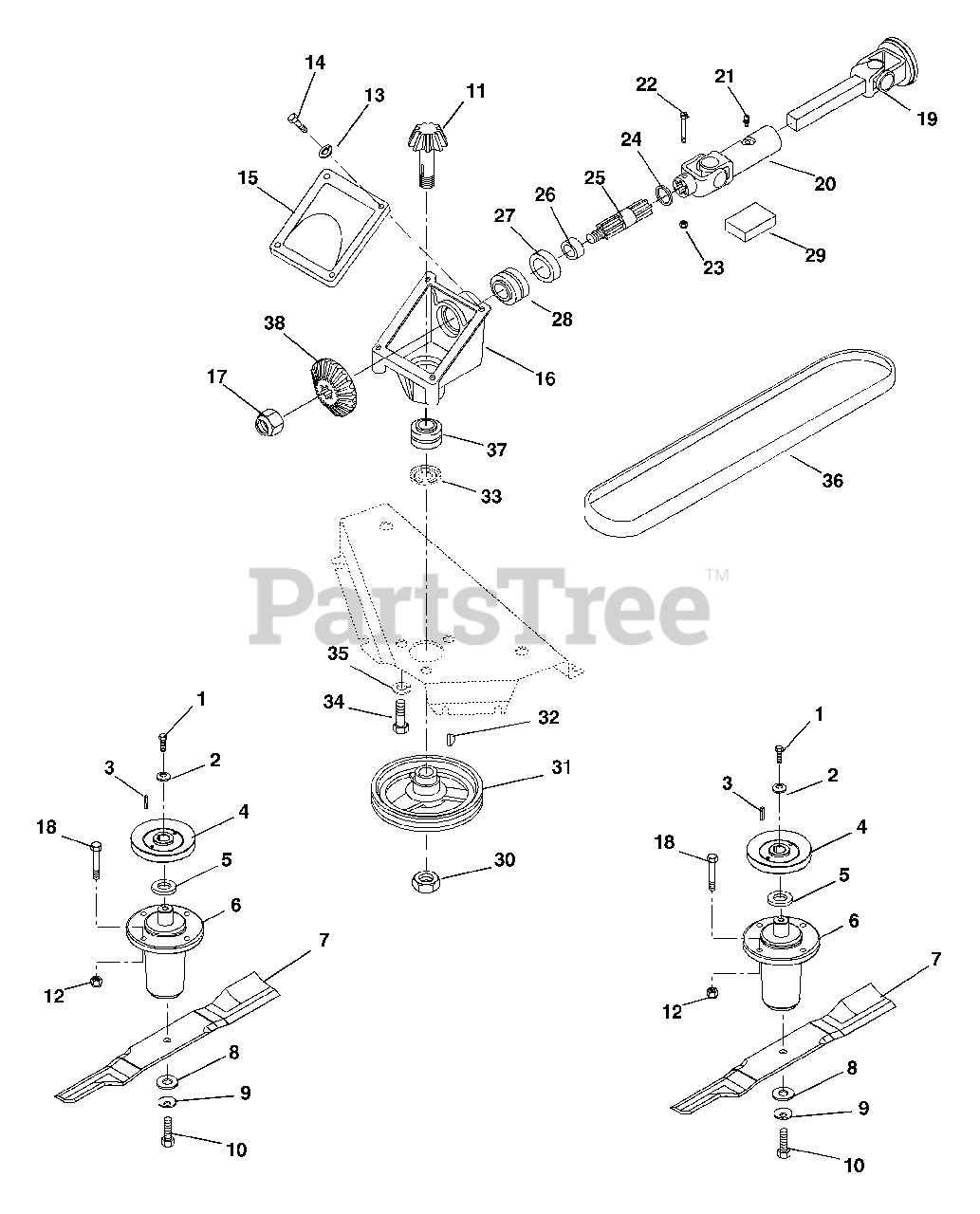

Mower Drive Parts Diagram

  • Title

1

Gravely 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

3

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 10

0

4

Gravely 04906000

SHEAVE, SPINDLE

$116.99

$

Usually ships in 4-12 days

0

5

Gravely 09238200

SLINGER, DUST

$17.99

$

In Stock, only 3 left!

0

6

Gravely 58803600

MAINTENANCE FREE SPINDLE ASSY

$273.99

$

In Stock, Qty 7

0

7

Gravely 08899000

MOWER BLADE TUNGSTEN CARBIDE
(Superseded to 08904600)

$

$

Not available

8

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

10

Gravely 07053400

BLT-HEX .50-13X1.90 GR8 BLADE

$72.99

$

In Stock, only 3 left!

0

11

Gravely 051326

SHFT,PINION GEAR
(Superseded to 08790400)

$

$

Not available

12

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 7

0

14

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 2 left!

0

15

Gravely 010982

CVR,GEAR HOUSING
(Superseded to 08860500)

$45.99

$

Usually ships in 4-12 days

0

16

Gravely 014636

CSTG,GEAR BOX
(Superseded to 08700400)

$305.99

$

Usually ships in 4-12 days

0

17

Gravely 06540800

NUT-LK-NYL .75-10 YWZC

$6.99

$

Usually ships in 4-12 days

0

18

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, only 3 left!

0

19

Gravely 025135

SHFT,PROP SQ BAR
(Superseded to 08532000)

$

$

Not available

20

Gravely 013518

JT,U,FEMALE END
(Superseded to 08700200)

$

$

Not available

21

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

22

Gravely 05967100

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

In Stock, only 3 left!

0

23

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

24

Gravely 014642

RG-RTNG EXT 1.106X.95
(Superseded to 05711600)

$9.99

$

Usually ships in 4-12 days

0

25

Gravely 031412

SHFT,
(Superseded to 08729500)

$

$

Not available

26

Gravely 014641

BUSH F 1.00X1.25X1.25 ST
(Superseded to 08700500)

$24.99

$

In Stock, only 2 left!

0

27

Gravely 014646

SEAL 1.250X1.983X.250
(Superseded to 05613700)

$15.99

$

In Stock, only 1 left!

0

28

Gravely 014640

BRG-ASM 1.000X1.980X1.243
(Superseded to 05419300)

$115.99

$

Usually ships in 4-12 days

0

29

Gravely 039739

JOURNAL CROSS & BEARING ASSEMB
(Superseded to 03155800)

$

$

Not available

30

Gravely 06537700

NUT-JAM .75-10 YWZC

$3.49

$

In Stock, Qty 20+

0

31

Gravely 025131

SHEAVE,DRIVE
(Superseded to 08531800)

$

$

Not available

32

Gravely 431787

KEY-WDRF .19X.63 HRD #61
(Superseded to 06609300)

$3.49

$

In Stock, only 2 left!

0

33

Gravely 014645

SEAL 1.250X1.691X.310
(Superseded to 05613600)

$17.99

$

In Stock, only 3 left!

0

34

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 1 left!

0

35

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 025129

V-BELT, HA-WRAPPED
(Superseded to 07219500)

$42.99

$

Usually ships in 4-12 days

0

37

Gravely 014644

BRG-ASM .75X1.781X1.499
(Superseded to 05419400)

$116.99

$

Usually ships in 4-12 days

0

38

Gravely 051325

GR,BEVEL
(Superseded to 08790300)

$245.99

$

Usually ships in 4-12 days

0
