885015 - Gravely 44" Power Brush for Tractor (SN: 000101 & Above) Controls Parts Diagram

44" Power Brush for Tractor

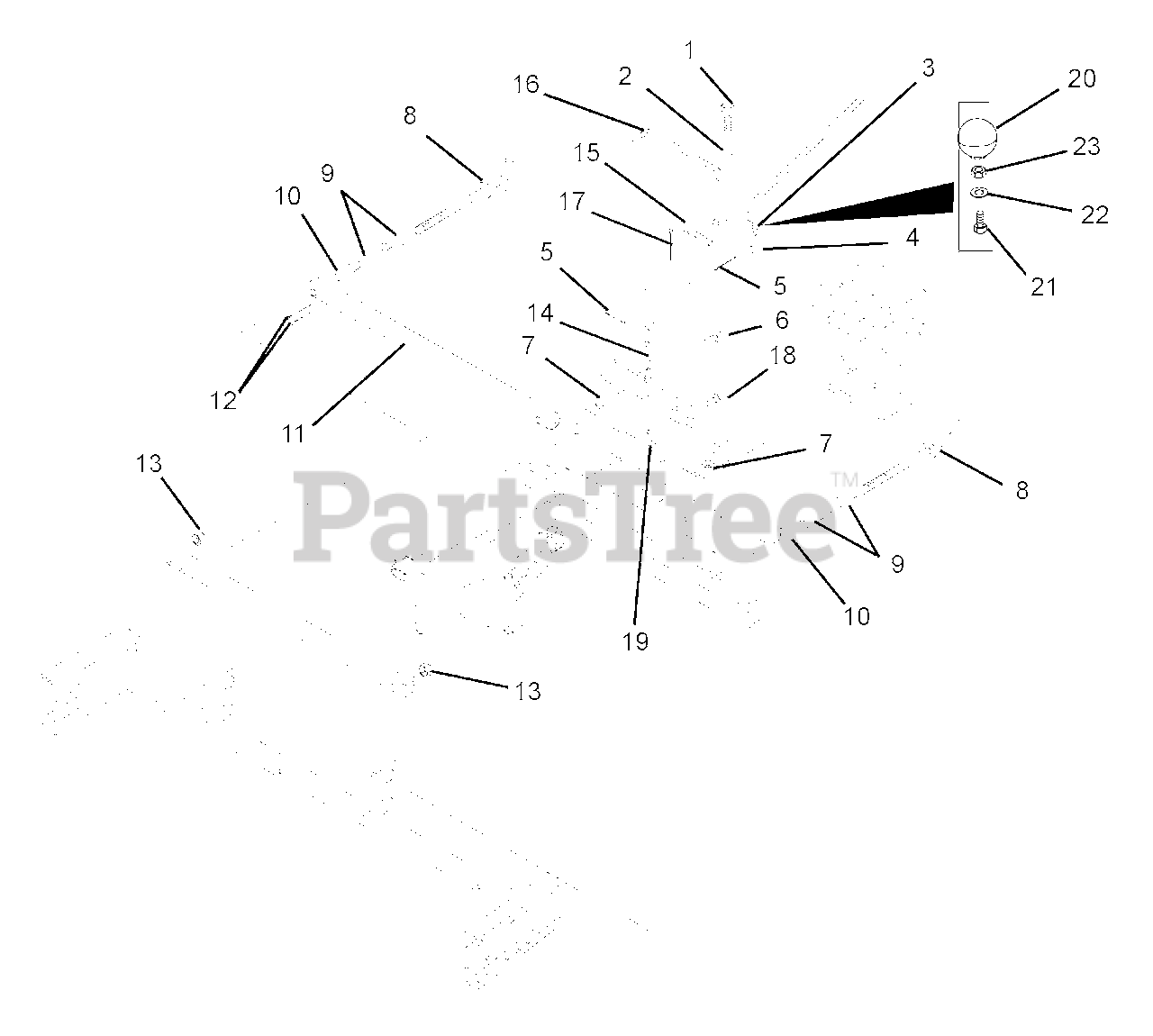

Controls Parts Diagram

  • Title

1

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

2

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 019261

WLDMT,BRKT
(Superseded to 08508300)

$

$

Not available

4

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (Two- & Four-Wheel Tractors Only)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

Note: (Two- & Four-Wheel Tractors Only)

$0.99

$

In Stock, Qty 6

0

6

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 14

0

7

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 019278

WLDMT, ROD THREADED
(Superseded to 08509500)

$157.99

$

Usually ships in 4-12 days

0

9

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

10

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 019276

ANCHOR,ADJMT
(Superseded to 08509300)

$

$

Not available

12

Gravely 06714300

PIN-CTR .12X1.50 EXTPRSQCT YZ

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 06537300

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

In Stock, only 2 left!

0

14

Gravely 019264

PLT,LOCKING
(Superseded to 08508500)

$51.99

$

Usually ships in 4-12 days

0

15

Gravely 015353

SG-TENS .075X.75X2.25 WLD20.7
(Superseded to 08327600)

$17.99

$

In Stock, only 2 left!

0

16

Gravely 019266

ROD,LINKAGE
(Superseded to 08600800)

$43.99

$

Usually ships in 4-12 days

0

17

Gravely 414218

PIN-COTR .375X1.375
(Superseded to 06706400)

$

$

Not available

18

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 5

0

19

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07515900

KNOB, BALL 5/16-18 X 1.5

Note: (Rapid Units Only)

$22.99

$

In Stock, only 1 left!

0

21

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

Note: (Rapid Units Only)

$2.99

$

In Stock, Qty 12

0

22

Gravely 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

Note: (Rapid Units Only)

$1.49

$

Usually ships in 4-12 days

0

23

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

Note: (Rapid Units Only)

$1.99

$

In Stock, Qty 20+

0
