888003 - Gravely 36" Deck for Pro-Walk Mower (SN: 000422 - 009999) MOWER DRIVE Parts Diagram

36" Deck for Pro-Walk Mower

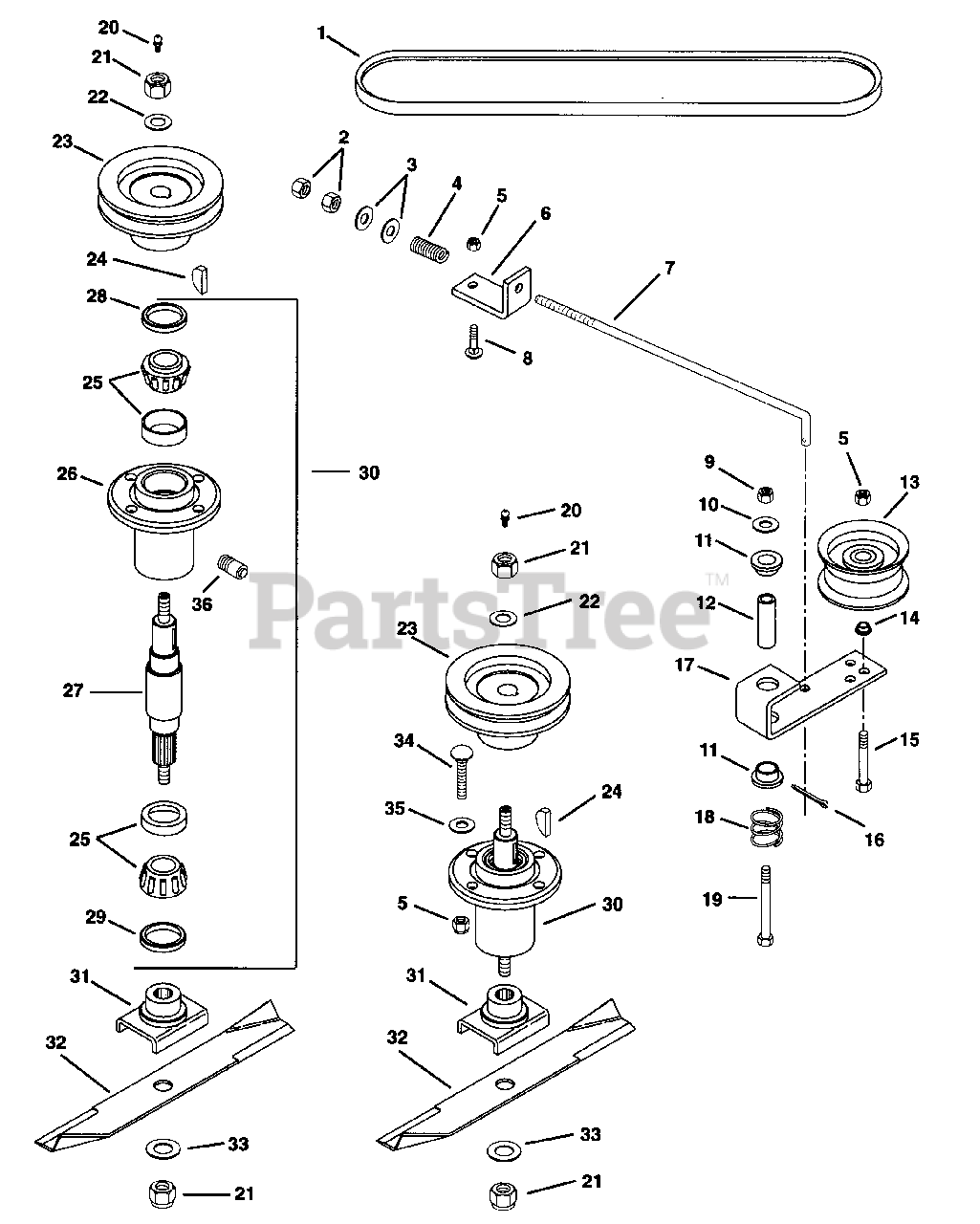

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 07221500

OBSOLETE
(Superseded to 07238200)

$64.99

$

In Stock, Qty 6

0

2

Gravely 06522900

NUT-HEX .375-24 YWZC
(Superseded to 06500940)

$2.99

$

In Stock, only 2 left!

0

3

Gravely 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 08327000

SG-COMP .125X.78X1.00 YWZ

$16.99

$

In Stock, only 3 left!

0

5

Gravely 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 08802700

BRKT,BELT TENSIONER

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 08656800

ROD,IDLER

$65.99

$

Usually ships in 4-12 days

0

8

Gravely 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06525800

NUT-LK .50-13 HEX TYPE N
(Superseded to 06536300)

$4.99

$

In Stock, Qty 16

0

10

Gravely 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.49

$

In Stock, Qty 15

0

12

Gravely 08820500

SPACER .560X.750X2.437 ST

$19.99

$

In Stock, Qty 7

0

13

Gravely 07317700

IDLER-FLAT 4.00X.38 (2.00 W)
(Superseded to 07327800)

$91.99

$

In Stock, Qty 10

0

14

Gravely 05515800

BSHG-FLG .406X.88X.270X.140

$9.99

$

In Stock, Qty 9

0

15

Gravely 05924300

BLT-HEX .38-16X2.25 GR5
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

17

Gravely 08905900

ARM,IDLER PIVOT

$84.99

$

In Stock, only 1 left!

0

18

Gravely 08329100

SG-COMP .085X.80X1.00 WLD36

$14.99

$

In Stock, Qty 5

0

19

Gravely 05924200

BLT-HEX .50-13X3.25 PL GR5
(Superseded to 05901634)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 07012500

FTG,LUBE 1/8

$4.99

$

In Stock, Qty 11

0

21

Gravely 06515800

NUT-LK-NYL .625-11 PL (ND)
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 06427400

WSHR-FL-STL .687X1.312X.15 YWZ

$2.99

$

In Stock, Qty 6

0

23

Gravely 08895000

SHEAVE
(Superseded to 08895500)

$

$

Not available

24

Gravely 06608900

KEY-WDRF .25X1.00 HRD #15

$3.99

$

In Stock, Qty 9

0

25

Gravely 21245800

ASM,BEARING CUP&CONE
(Superseded to 00145555)

$29.99

$

In Stock, Qty 10

0

26

Gravely 08894500

BEARING HOUSING

$

$

Not available

27

Gravely 08910600

SHFT,SPINDLE
(Superseded to 58802900)

$128.99

$

In Stock, Qty 6

0

28

Gravely 05611400

SEAL 1.987 X1.500 X.313

$16.99

$

In Stock, only 3 left!

0

29

Gravely 05613000

SEAL 1.987X1.375X.313

$17.99

$

In Stock, only 2 left!

0

30

Gravely 58801700

SERVICE KIT SPINDLE ASSEMBLY
(Superseded to 58803600)

$273.99

$

In Stock, Qty 7

0

31

Gravely 08798300

WELM'D, BLADE CRADLE

$158.99

$

Usually ships in 4-12 days

0

32

Gravely 08816600

BLD,36"MOWER

$20.99

$

Usually ships in 4-12 days

0

33

Gravely 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.99

$

In Stock, Qty 20+

0

34

Gravely 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.99

$

In Stock, only 3 left!

0

35

Gravely 06428900

WSHR-FL-STL .500X1.250X.083
(Superseded to 06401202)

$3.49

$

In Stock, Qty 7

0

36

Gravely 08896800

RELIEF FITTING-GREASE

$14.99

$

Usually ships in 4-12 days

0
