892043 - Gravely Pro Series, 60", 66" Decks (SN: 000101 & Above) Pro-Series 3 Bag Catcher System Installation 66" Deck Related Parts List Parts Diagram

Pro Series, 60", 66" Decks

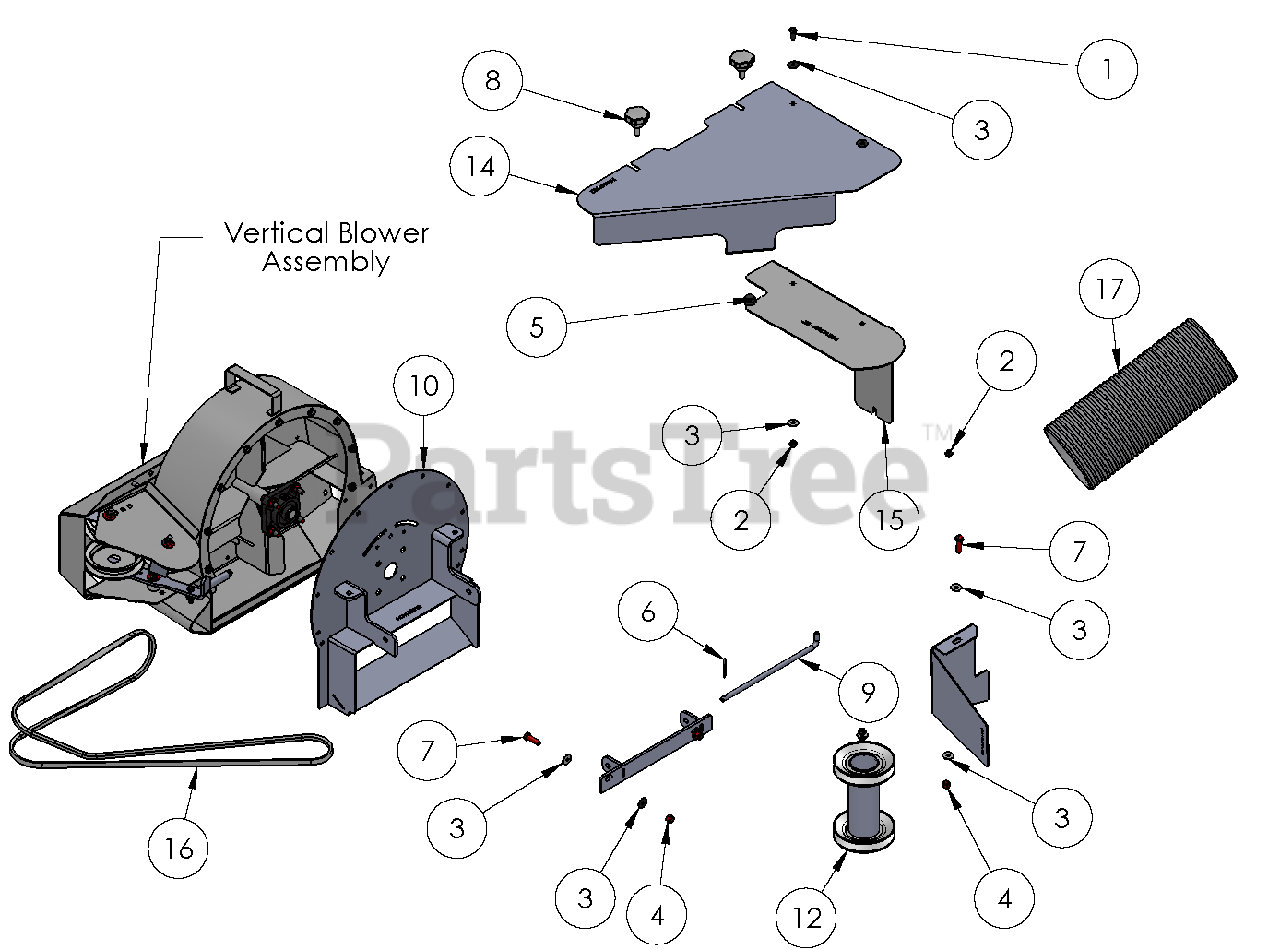

Pro-Series 3 Bag Catcher System Installation 66" Deck Related Parts List Parts Diagram

  • Title

1

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 00458915

RUBBER BUMPER

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 21700300

HAIR PIN, 0.091 X 1.875

$

$

Not available

7

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 27100400

RELEASE KNOB

$

$

Not available

9

Gravely 27100700

MOUNTING PIN, 'L' 10.25" EL

$

$

Not available

10

Gravely 27101700

BLOWER MOUNT, PRO SERIES

$

$

Not available

11

Gravely 27101900

DECK BRACKET, 66" PRO SERIES

$

$

Not available

12

Gravely 27102000

DOUBLE PULLEY, PRO SERIES

$

$

Not available

13

Gravely 27102200

DECK SEAL, 66" PRO SERIES

$

$

Not available

14

Gravely 27102400

FRONT PULLEY COVER, PRO SERIES

$

$

Not available

15

Gravely 27102500

PULLEY COVER LEG , 60" PRO

$

$

Not available

16

Gravely 27103600

BELT, ARAMID CORD 103"

$

$

Not available

17

Gravely 27103700

HOSE, 6" X 48" LG.

$

$

Not available
