895804 - Parker Trailette Sweeper (SN: 000101 & Above) Basket Assembly Parts Diagram

Trailette Sweeper

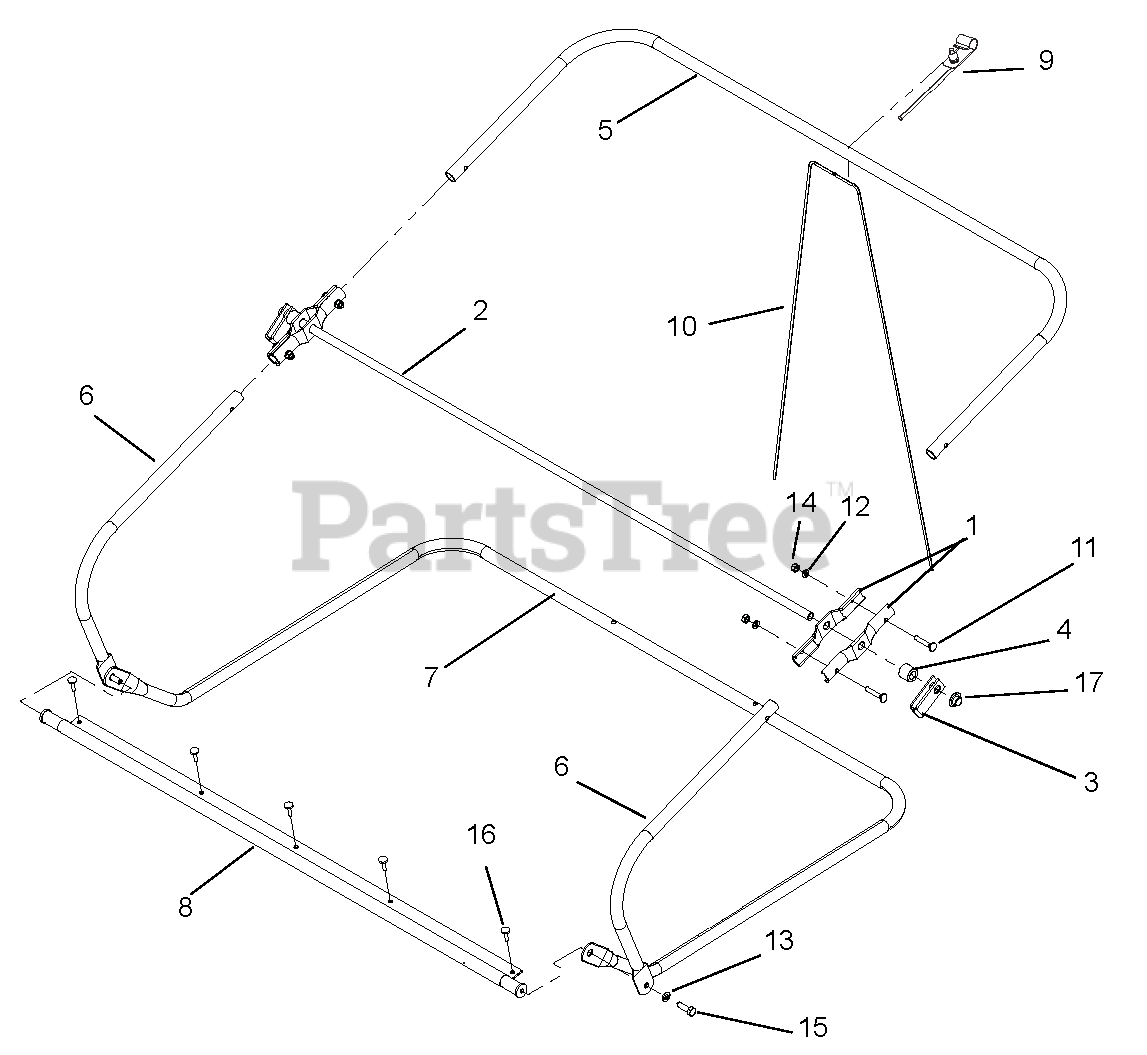

Basket Assembly Parts Diagram

  • Title

1

Gravely P79-112-B

PIVOT BEARING

$

$

Not available

2

Gravely P76-275-A

SWP-ROD PIVOT 44 3/4" TRAILET

$

$

Not available

3

Gravely P76-242-A

LATCH PIVOT

$

$

Not available

4

Gravely P73-414-A

BSHG, SLV - .513 X .875 X .750

$

$

Not available

5

Gravely P76-326-B

SWP-FRAME BASKET REAR

$

$

Not available

6

Gravely P76-285-B

SWP-FRAME BASKET FRONT TE

$

$

Not available

7

Gravely P83-82-C

SWP-FRAME BASKET LOWER

$

$

Not available

8

Gravely PSA-1427-P

Basket Clamp Assembly

$

$

Not available

9

Gravely PSA-969-A

SWP-ROPE AND CLIP ASY

$34.99

$

Usually ships in 4-12 days

0

10

Gravely P83-33-B

SWP-SPRING-BASKET

$

$

Not available

11

Gravely P69-416-24

BLT-CONT HEAD 1/4-20 X 1.50

$

$

Not available

12

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 7

0

13

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

15

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

16

Gravely P92-28

BULB TITE RIVET (1PLZ7)

$

$

Not available

17

Gravely 02232000

CAP,1/2" PUSH ON 50014067

$

$

Not available

18

Gravely 04288300

SWP-BASKET BOTTOM & BAG-TRAILE

Note: (Not shown)

$

$

Not available

19

Gravely 04295500

SWP-WIND APRON ASSY.-TRAILETTE

Note: (Not shown)

$

$

Not available
