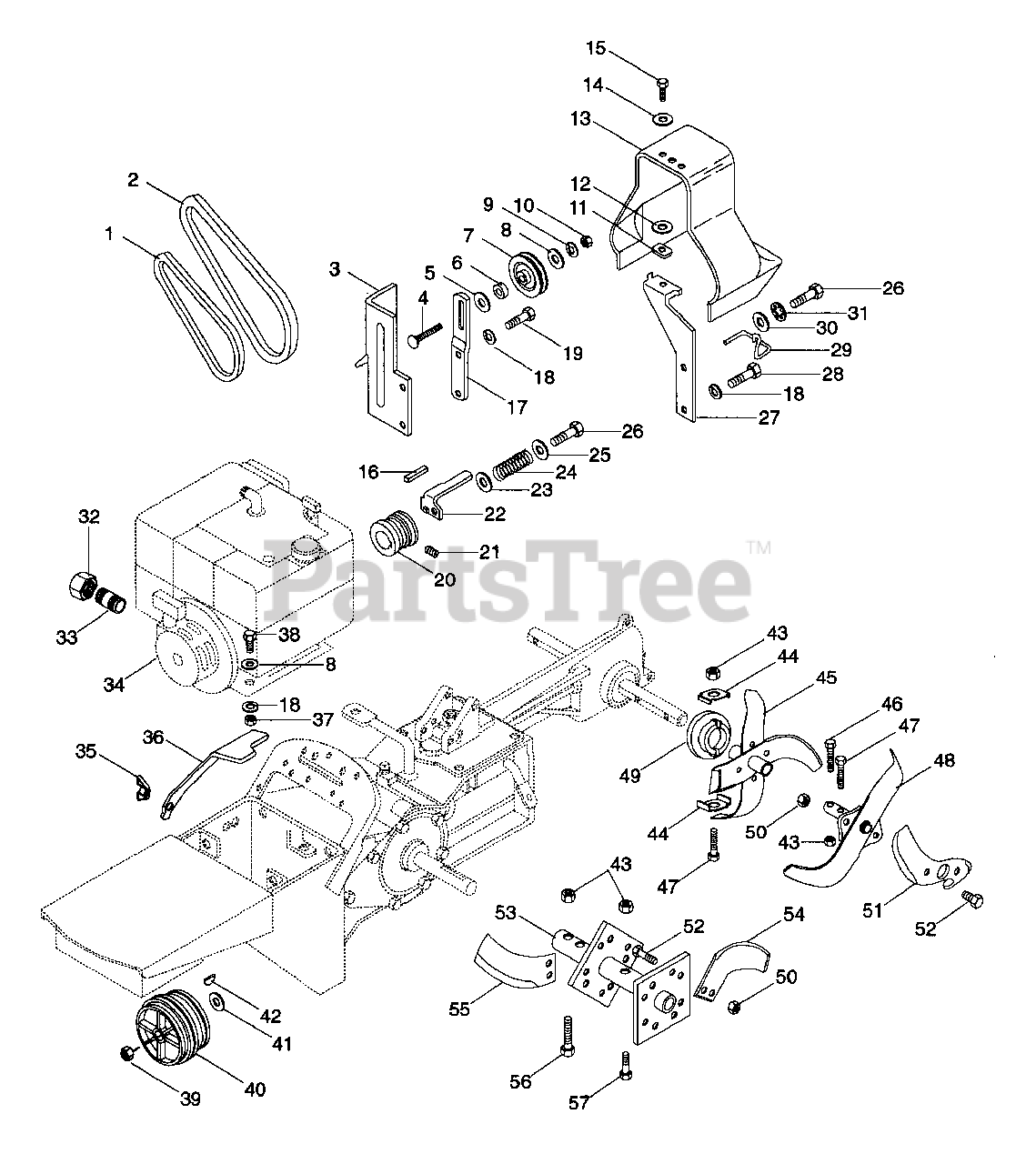

901400 (RT 8020) - Ariens 20" Rear Tine Tiller, 8hp Kohler (SN: 000101 & Above) Belt Drive And Tines Parts Diagram

20" Rear Tine Tiller, 8hp Kohler

Belt Drive And Tines Parts Diagram

  • Title

1

Ariens 07211900

V-BELT, 4L-WRAPPED

Note: (Used Only On Model(s): 016).

$29.99

$

In Stock, only 2 left!

0

1

Ariens 07204600

V-BELT, SAE 380-RAW EDGE (SET)

Note: (Used Only On Model(s): 017,019).

$83.99

$

In Stock, only 2 left!

0

1

Ariens 07212600

V-BELT, SAE 380-RAW EDGE (SET)

Note: (Used Only On Model(s): 018).

$42.99

$

In Stock, only 2 left!

0

2

Ariens 07210600

V-BELT, 3L-COGGED

Note: (Used Only On Model(s): 016,017,019).

$37.99

$

In Stock, Qty 7

0

2

Ariens 07212700

V-BELT, 3L-COGGED

Note: (Used Only On Model(s): 018).

$31.99

$

In Stock, only 3 left!

0

3

Ariens 00140100

HEAT SHIELD

Note: (Used Only On Model(s): 016,017,019).

$

$

Not available

4

Ariens 06201800

BLT-RDHDSQNK .31-18X1.75 SHTPL
(Superseded to 06213900)

Note: (Used Only On Model(s): 016).

$4.99

$

Usually ships in 4-12 days

0

4

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

Note: (Used Only On Model(s): 017,018,019).

$2.49

$

In Stock, Qty 8

0

5

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

Note: (Used Only On Model(s): 016).

$3.99

$

In Stock, Qty 19

0

6

Ariens 01036000

BEARING SPACER

Note: (Used Only On Model(s): 016).

$

$

Not available

6

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

Note: (Used Only On Model(s): 017,018,019).

$4.99

$

In Stock, only 2 left!

0

7

Ariens 02457400

IDLER
(Superseded to 52007000)

$47.99

$

In Stock, Qty 14

0

8

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06500938)

$1.99

$

In Stock, Qty 7

0

11

Ariens 06513000

NUT-SPEED U-TYPE .250-20

$

$

Not available

12

Ariens 07005000

NUT-RETNR

$5.49

$

Usually ships in 4-12 days

0

13

Ariens 50101700

BELT GUARD W/DECALS

Note: (Used Only On Model(s): 017,019).

$

$

Not available

13

Ariens 50101900

BELT GUARD W/DECALS

Note: (Used Only On Model(s): 016).

$

$

Not available

13

Ariens 50103500

BELT GUARD W/DECALS

Note: (Used Only On Model(s): 018).

$

$

Not available

14

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

Note: (Used Only On Model(s): 016,017,019).

$2.49

$

In Stock, only 3 left!

0

16

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

Note: (Used Only On Model(s): 018).

$4.99

$

In Stock, Qty 11

0

17

Ariens 00139000

REVERSE IDLER BRACKET

Note: (Used Only On Model(s): 016,017,019).

$

$

Not available

17

Ariens 00133100

REVERSE IDLER BRACKET
(Superseded to 00133151)

Note: (Used Only On Model(s): 018).

$

$

Not available

18

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (Used Only On Model(s): 016,017,019).

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

Note: (Used Only On Model(s): 018).

$5.49

$

In Stock, Qty 18

0

19

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

Note: (Used Only On Model(s): 016,017,019).

$2.49

$

In Stock, Qty 20+

0

19

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

Note: (Used Only On Model(s): 018).

$2.49

$

In Stock, Qty 11

0

20

Ariens 00138800

ENGINE SHEAVE

Note: (Used Only On Model(s): 016).

$231.99

$

In Stock, only 1 left!

0

20

Ariens 00139500

ENGINE SHEAVE

Note: (Used Only On Model(s): 017,019).

$

$

Not available

20

Ariens 00133400

ENGINE SHEAVE

Note: (Used Only On Model(s): 018).

$

$

Not available

21

Ariens 06001400

SCR-SET .25-20X.25 SKHCUPNY OH
(Superseded to 06005400)

Note: (Used Only On Model(s): 016).

$4.99

$

In Stock, only 1 left!

0

21

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

Note: (Used Only On Model(s): 017,018,019).

$3.99

$

In Stock, only 1 left!

0

22

Ariens 00133000

BELT FINGER
(Superseded to 00133051)

Note: (Used Only On Model(s): 018).

$

$

Not available

23

Ariens 06410200

WSHR-FL-STL .406X1.125X.125 PL
(Superseded to 06309100)

$

$

Not available

24

Ariens 08318800

SG-COMP .125X.68X1.62

Note: (Used Only On Model(s): 018).

$

$

Not available

25

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$2.49

$

In Stock, Qty 20+

0

26

Ariens 05906400

BLT-HEX .31-24X1.00 PL GR5
(Superseded to 05963600)

Note: (Used Only On Model(s): 016, 017,019).

$3.49

$

Usually ships in 4-12 days

0

26

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

Note: (Used Only On Model(s): 018).

$3.99

$

In Stock, Qty 20+

0

27

Ariens 00138900

BELT COVER BRACKET

Note: (Used Only On Model(s): 016, 017,019).

$

$

Not available

27

Ariens 00132900

BELT COVER BRACKET

Note: (Used Only On Model(s): 018).

$

$

Not available

28

Ariens 05903600

BLT-HEX .31-24X.50 GR5
(Superseded to 05962700)

Note: (Used Only On Model(s): 016,017,019).

$

$

Not available

28

Ariens 05909900

BLT-HEX .38-16X.63 PL GR2

Note: (Used Only On Model(s): 018).

$

$

Not available

29

Ariens 00123300

FORWARD BELT FINGER

Note: (Used Only On Model(s): 016).

$103.99

$

Usually ships in 4-12 days

0

29

Ariens 00139600

BELT FINGER

Note: (Used Only On Model(s): 017,019).

$

$

Not available

30

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.99

$

Usually ships in 4-12 days

0

31

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$1.49

$

In Stock, Qty 8

0

32

Ariens 00137100

HEX PIPE CAP 1/2 NPT

Note: (Used Only On Model(s): 018).

$

$

Not available

33

Ariens 00137200

MALE PIPE NIPPLE 1/2 NPT

Note: (Used Only On Model(s): 018).

$

$

Not available

34

Ariens 08216800

5 HP TEC 5020

Note: (Used Only On Model(s): 016).

$

$

Not available

34

Ariens 08216000

7 HP TEC 7020

Note: (Used Only On Model(s): 017).

$

$

Not available

34

Ariens 08218400

8 HP KOHLER #301515

Note: (Used Only On Model(s): 018).

$

$

Not available

34

Ariens 08218400

8 HP KOHLER #301515

Note: (Used Only On Model(s): 018).

$

$

Not available

34

Ariens 08228200

6 HP TEC

Note: (Used Only On Model(s): 019).

$

$

Not available

35

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$6.99

$

In Stock, only 1 left!

0

36

Ariens 00133500

BELT FINGER

Note: (Used Only On Model(s): 018).

$

$

Not available

37

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06500938)

Note: (Used Only On Model(s): 016,017,019).

$1.99

$

In Stock, Qty 7

0

37

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

Note: (Used Only On Model(s): 018).

$1.99

$

In Stock, Qty 20+

0

38

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

Note: (Used Only On Model(s): 016,017,019).

$2.49

$

In Stock, Qty 20+

0

38

Ariens 05900500

BLT-HEX .38-16X1.25 PL GR 2
(Superseded to 05958000)

Note: (Used Only On Model(s): 018).

$2.49

$

In Stock, Qty 20+

0

39

Ariens 06503000

NUT-LK-CTR .75-16 PL
(Superseded to 06536900)

$6.99

$

In Stock, Qty 8

0

40

Ariens 00138500

DRIVE SHEAVE

Note: (Used Only On Model(s): 016).

$

$

Not available

40

Ariens 00139400

DRIVE SHEAVE

Note: (Used Only On Model(s): 017,019).

$

$

Not available

40

Ariens 00133300

DRIVE SHEAVE

Note: (Used Only On Model(s): 018).

$

$

Not available

41

Ariens 06416700

WSHR-FL-STL .765X1.250X.062

Note: (Used Only On Model(s): 017,019).

$

$

Not available

42

Ariens 06601100

KEY-FTHR .188X1.25X.187 SAE

$9.99

$

In Stock, only 4 left!

0

43

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

Note: (Used Only On Model(s): 019).

$1.99

$

In Stock, Qty 20+

0

43

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

Note: (Used Only On Model(s): 018).

$3.49

$

Usually ships in 4-12 days

0

44

Ariens 00126700

CLIP

$25.99

$

Usually ships in 4-12 days

0

45

Ariens 00238200

RH INNER TINE SPOOL

Note: (Used Only On Model(s): 016,017,019).

$

$

Not available

45

Ariens 00238300

LH INNER TINE SPOOL

Note: (Used Only On Model(s): 016,017,019).

$

$

Not available

46

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

Note: (Used Only On Model(s): 019).

$2.99

$

In Stock, Qty 20+

0

47

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

Note: (Used Only On Model(s): 016,017,019).

$3.99

$

In Stock, Qty 20+

0

48

Ariens 00238400

LH OUTER TINE SPOOL

Note: (Used Only On Model(s): 016,017,019).

$

$

Not available

48

Ariens 00238500

RH OUTER TINE SPOOL

Note: (Used Only On Model(s): 016,017,019).

$

$

Not available

49

Ariens 00125200

DUST CAP

Note: (Used Only On Model(s): 016,017,019).

$36.99

$

In Stock, only 3 left!

0

49

Ariens 00130500

DUST CAP

Note: (Used Only On Model(s): 018).

$25.99

$

Usually ships in 4-12 days

0

50

Ariens 06501900

NUT-LK-TOP .437-14 GR C PL
(Superseded to 06536400)

$4.99

$

In Stock, only 3 left!

0

51

Ariens 00238000

TURBO-TINE
(Superseded to 00238051)

Note: (Used Only On Model(s): 016,017,019).

$30.99

$

Usually ships in 4-12 days

0

51

Ariens 00238100

TURBO-TINE
(Superseded to 00238151)

Note: (Used Only On Model(s): 016,017,019).

$

$

Not available

52

Ariens 05902600

BLT-HEX .44-14X1.00 GR5
(Superseded to 05958700)

$3.49

$

In Stock, only 1 left!

0

53

Ariens 00134900

INNER TINE HUB

Note: (Used Only On Model(s): 018).

$276.99

$

Usually ships in 4-12 days

0

54

Ariens 00417100

L KNIFE TINE

Note: (Used Only On Model(s): 018).

$28.99

$

In Stock, Qty 13

0

55

Ariens 00417200

R KNIFE TINE

Note: (Used Only On Model(s): 018).

$28.99

$

In Stock, Qty 5

0

56

Ariens 05920200

BLT-HEX .38-16X2.75 GR8
(Superseded to 05961400)

Note: (Used Only On Model(s): 018).

$5.49

$

In Stock, Qty 20+

0

57

Ariens 05920300

BLT-HEX .38-16X2.00 GR8
(Superseded to 05963100)

Note: (Used Only On Model(s): 018).

$3.99

$

In Stock, Qty 20+

0
