911373 (LMP) - Ariens Razor 21" Push Walk-Behind Mower, 175cc Subaru (SN: 026017 - 034999) Axles And Height Of Cut Parts Diagram

Razor 21" Push Walk-Behind Mower, 175cc Subaru

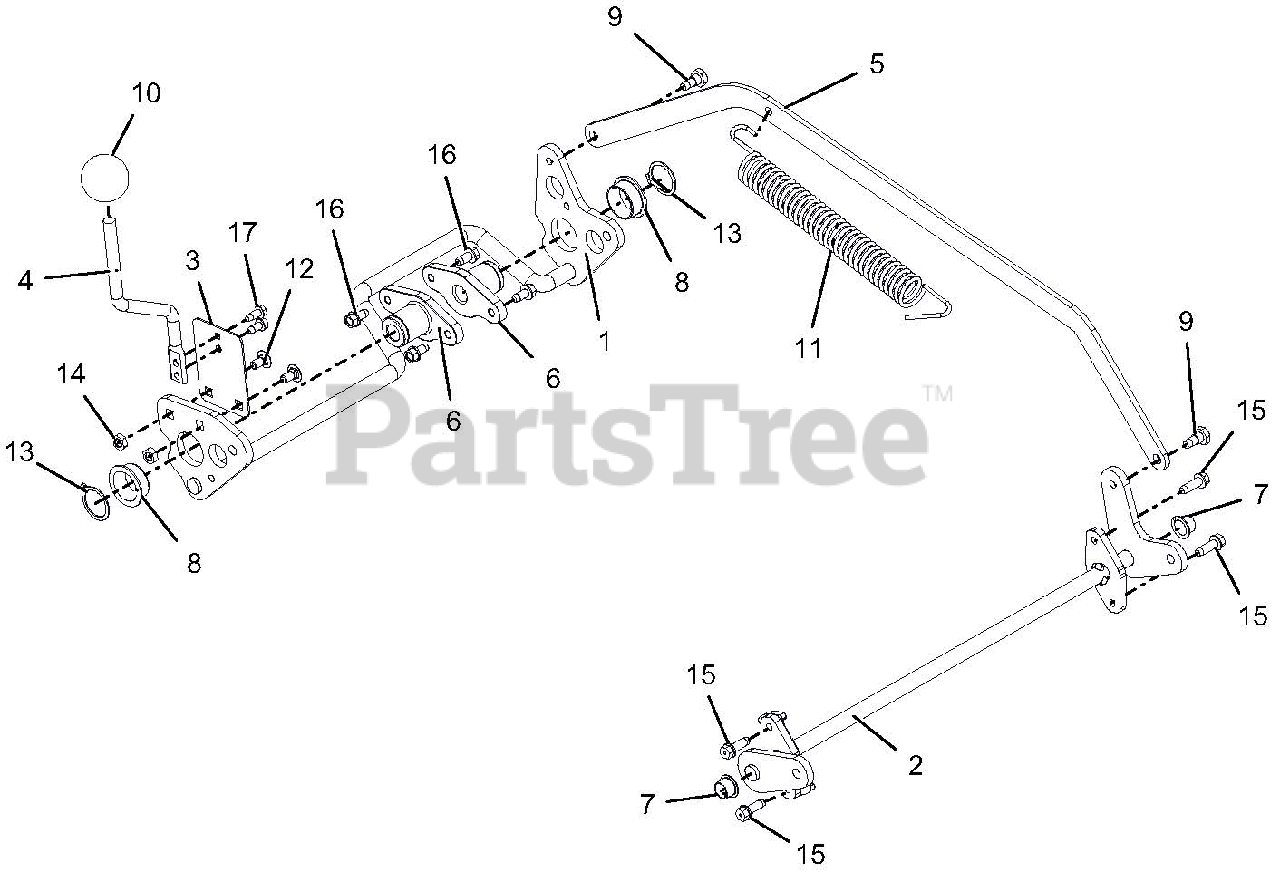

Axles And Height Of Cut Parts Diagram

  • Title

1

Ariens 04742367

WLDMT, REAR AXLE

Note: (BLACK)

$87.99

$

In Stock, only 1 left!

0

2

Ariens 04516067

WMT, LM FRONT AXLE

$111.99

$

In Stock, only 1 left!

0

3

Ariens 04513751

PLATE, HOC SPRING

$36.99

$

Usually ships in 4-12 days

0

4

Ariens 04516167

LEVER, HOC ADJUSTMENT

$156.99

$

Usually ships in 4-12 days

0

5

Ariens 04852859

LINKAGE, HOC CONNECT

Note: (ORANGE)

$25.99

$

Usually ships in 4-12 days

0

6

Ariens 04516900

HUB, LM REAR AXLE

$28.99

$

In Stock, Qty 20+

0

7

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$3.99

$

In Stock, Qty 20+

0

8

Ariens 05501124

BSHG-FLG 1.0X1.125X.50X1.375 R

$4.99

$

In Stock, Qty 20+

0

9

Ariens 07001708

BOLT, SHLDR .320X.210X.25-20

$3.49

$

In Stock, only 2 left!

0

10

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$10.99

$

In Stock, Qty 13

0

11

Ariens 08300625

SG-TENS .121X1.00X6.5 WLD

$6.99

$

Usually ships in 4-12 days

0

12

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$3.49

$

In Stock, Qty 5

0

14

Ariens 06500635

NUT-LK-CTR JAM .25-20 YWZC
(Superseded to 06500912)

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$3.49

$

In Stock, only 3 left!

0
