911512 (LM 21 SC) - Gravely 21" Walk-Behind Mower, 6hp Robin Subaru (SN: 000101 & Above) Handlebar And Controls Parts Diagram

21" Walk-Behind Mower, 6hp Robin Subaru

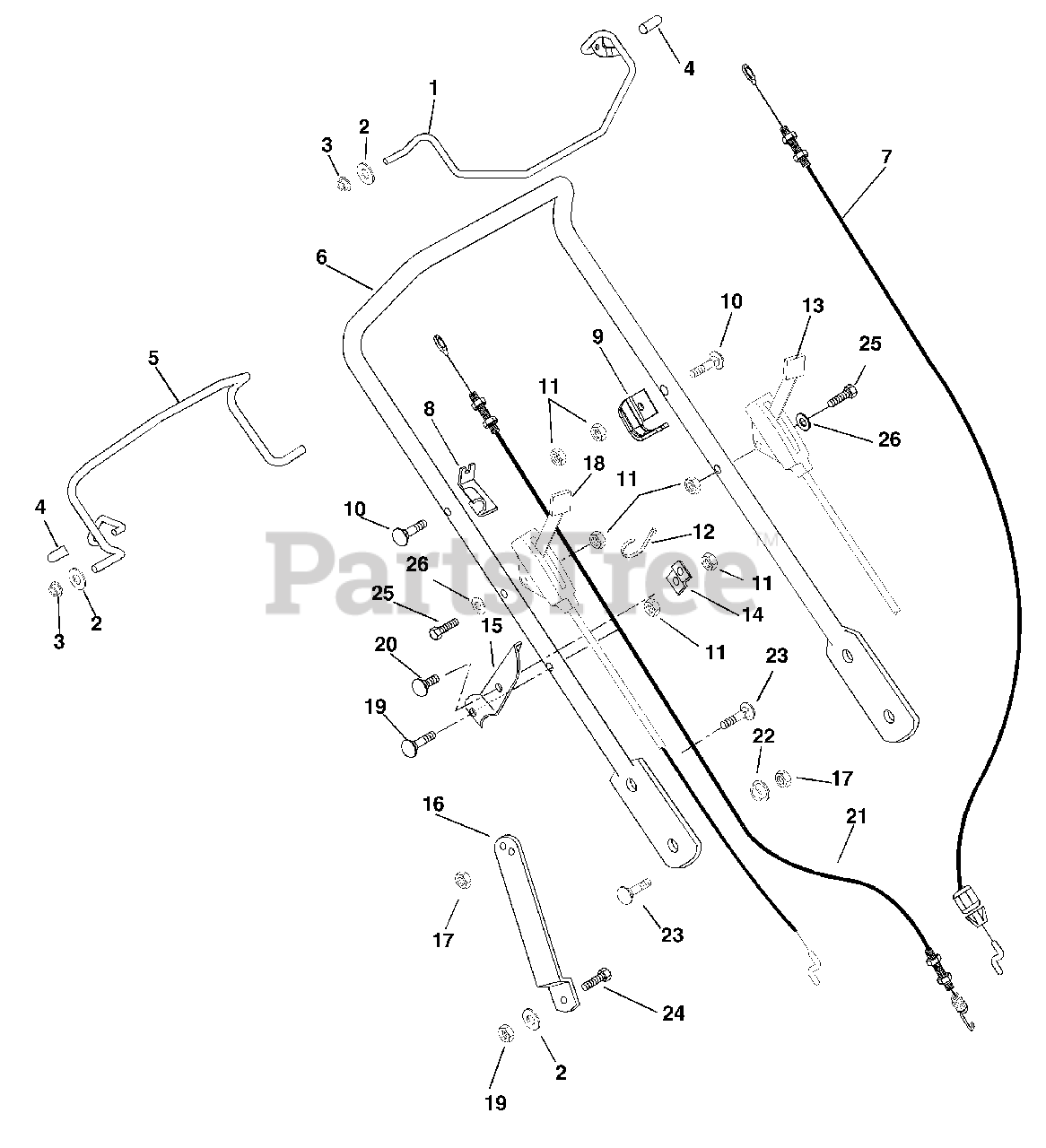

Handlebar And Controls Parts Diagram

  • Title

1

Gravely 01177251

ENGINE BAIL
(Superseded to 06949700)

$35.99

$

In Stock, only 2 left!

0

2

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

4

Gravely 07517000

CAP, VINYL, .25 ID

$3.99

$

In Stock, only 3 left!

0

5

Gravely 01188051

BAIL-TRACTION 3 SPD

$

$

Not available

6

Gravely 01184851

HANDLEBAR
(Superseded to 01245351)

$

$

Not available

7

Gravely 06937900

ENGINE CABLE

$49.99

$

Usually ships in 4-12 days

0

8

Gravely 01137551

CABLE ANCHOR, RH

$

$

Not available

9

Gravely 01155751

CABLE ANCHOR-LH
(Superseded to 01245651)

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5YZ

$2.99

$

In Stock, Qty 8

0

11

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

13

Gravely 06940100

THROTTLE CABLE

$

$

Not available

14

Gravely 01141851

BRACE, SPEED CONTROL

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 01137451

BRACKET, SPEED CONTROL
(Superseded to 51119700)

$

$

Not available

16

Gravely 01158651

BRACKET, HANDLEBAR

$21.99

$

Usually ships in 4-12 days

0

17

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06944300

CABLE-GEAR SHIFT

$

$

Not available

19

Gravely 06222300

BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.99

$

In Stock, Qty 5

0

20

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

21

Gravely 06944400

CABLE-TRACTION (SPECIAL)

$

$

Not available

22

Gravely 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 20+

0

23

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 12

0

26

Gravely 06442300

WSHR-FL-STL.250X.56X.049 YWZC

$2.49

$

Usually ships in 4-12 days

0
