915021 (EZR 1740) - Ariens 40" Zero-Turn Mower, 17hp Briggs & Stratton (SN: 000101 & Above) Controls (020, 021, 022, 023, 308-S/N 000100 & Up & 013-S/N 010500 & Up) Parts Diagram

40" Zero-Turn Mower, 17hp Briggs & Stratton

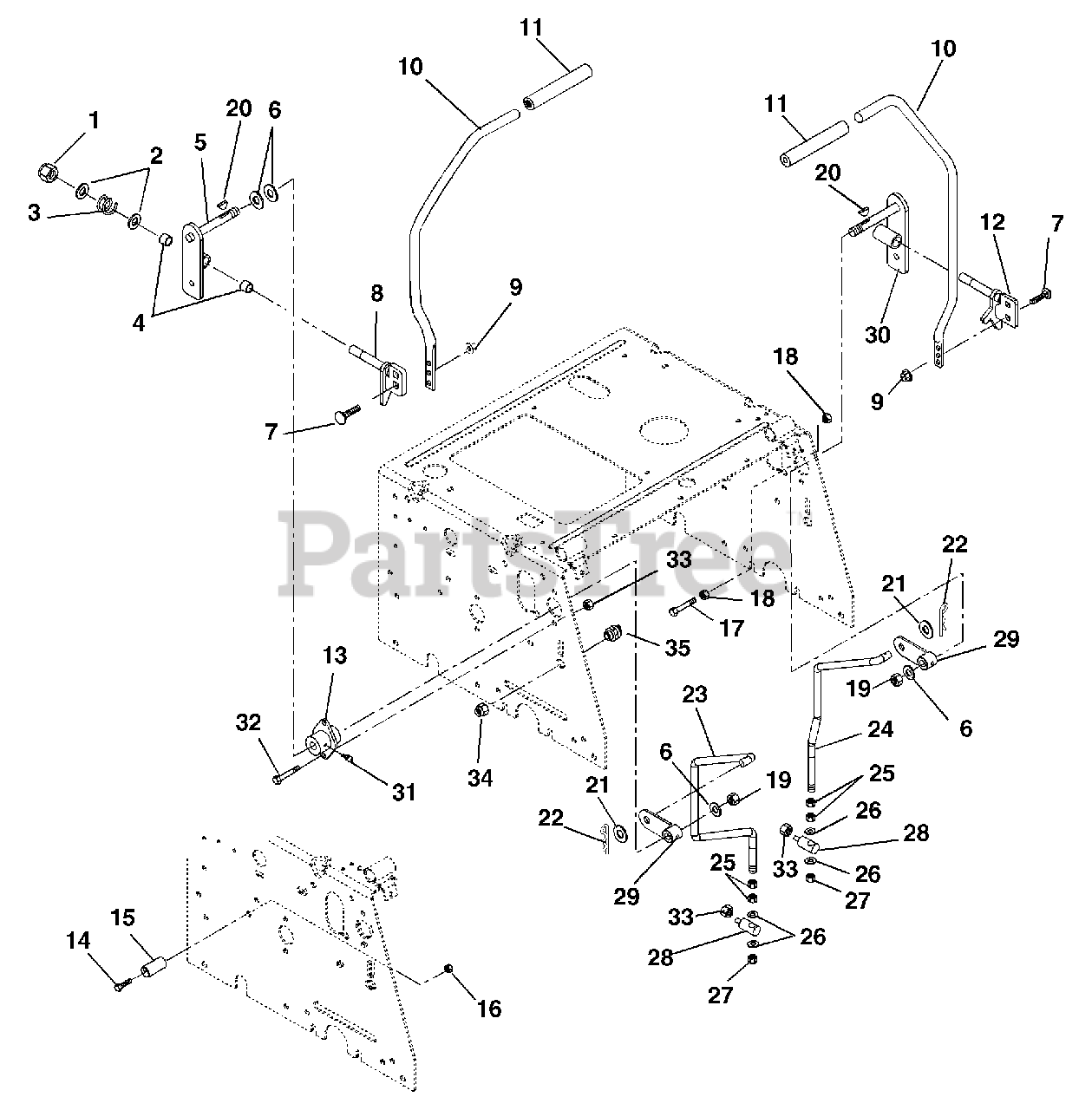

Controls (020, 021, 022, 023, 308-S/N 000100 & Up & 013-S/N 010500 & Up) Parts Diagram

  • Title

1

Ariens 06528200

NUT-LK-CONE .50-13 GR C YWZC

$4.99

$

In Stock, Qty 5

0

2

Ariens 00515700

WASHER, PLASTIC .12X.53.1.12

$

$

Not available

3

Ariens 00516200

SPRING, COMPRESSION

$

$

Not available

4

Ariens 00510500

BUSHING, NYLON .5 X .62 X .5LG

$

$

Not available

5

Ariens 01568100

CONTROL WELDMENT RH YWZC

$

$

Not available

6

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$3.49

$

In Stock, Qty 20+

0

7

Ariens 06209500

BLT-RDHDSQNK.31-18X.88 GR5YWZC

$3.49

$

Usually ships in 4-12 days

0

8

Ariens 01547200

RH LEVER, WELDMENT
(Superseded to 01572100)

$143.99

$

Usually ships in 4-12 days

0

9

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

10

Ariens 01569900

HANDLEBAR

$

$

Not available

11

Ariens 01570000

GRIP - HANDLEBAR

$18.99

$

In Stock, only 2 left!

0

12

Ariens 01547300

LH LEVER, WELDMENT
(Superseded to 01572200)

$

$

Not available

13

Ariens 01522000

BUSHING, FLANGED

$36.99

$

In Stock, only 1 left!

0

14

Ariens 05962500

@BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$4.99

$

In Stock, Qty 20+

0

15

Ariens 01556900

ECCENTRIC

$

$

Not available

16

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

17

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$2.49

$

In Stock, Qty 17

0

18

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

20

Ariens 06608600

KEY-WDRF .125X.75

$3.49

$

Usually ships in 4-12 days

0

21

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$2.49

$

In Stock, Qty 20+

0

22

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$3.49

$

In Stock, Qty 20+

0

23

Ariens 01568700

ROD - TRANSAXLE RH YWZC

$20.99

$

Usually ships in 4-12 days

0

24

Ariens 01568800

ROD - TRANSAXLE LH YWZC

$68.99

$

Usually ships in 4-12 days

0

25

Ariens 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$2.49

$

In Stock, Qty 20+

0

26

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$4.99

$

In Stock, Qty 20+

0

27

Ariens 06535100

NUT-LK ESNA THIN .50-13 YWZC

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 01568600

ROD PIVOT YWZC

$55.99

$

Usually ships in 4-12 days

0

29

Ariens 01568300

PUMP WELDMENT

$

$

Not available

30

Ariens 01568200

CONTROL WELDMENT LH YWZC

$

$

Not available

31

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

32

Ariens 07049600

BLT-SERHFWH .312-18X.75 YWZC

$3.49

$

Usually ships in 4-12 days

0

33

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

34

Ariens 07015100

NUT-STAMPED .56-18

$4.99

$

Usually ships in 4-12 days

0

35

Ariens 02913100

SWITCH-NEUTRAL START N.O.

$48.99

$

Usually ships in 4-12 days

0
