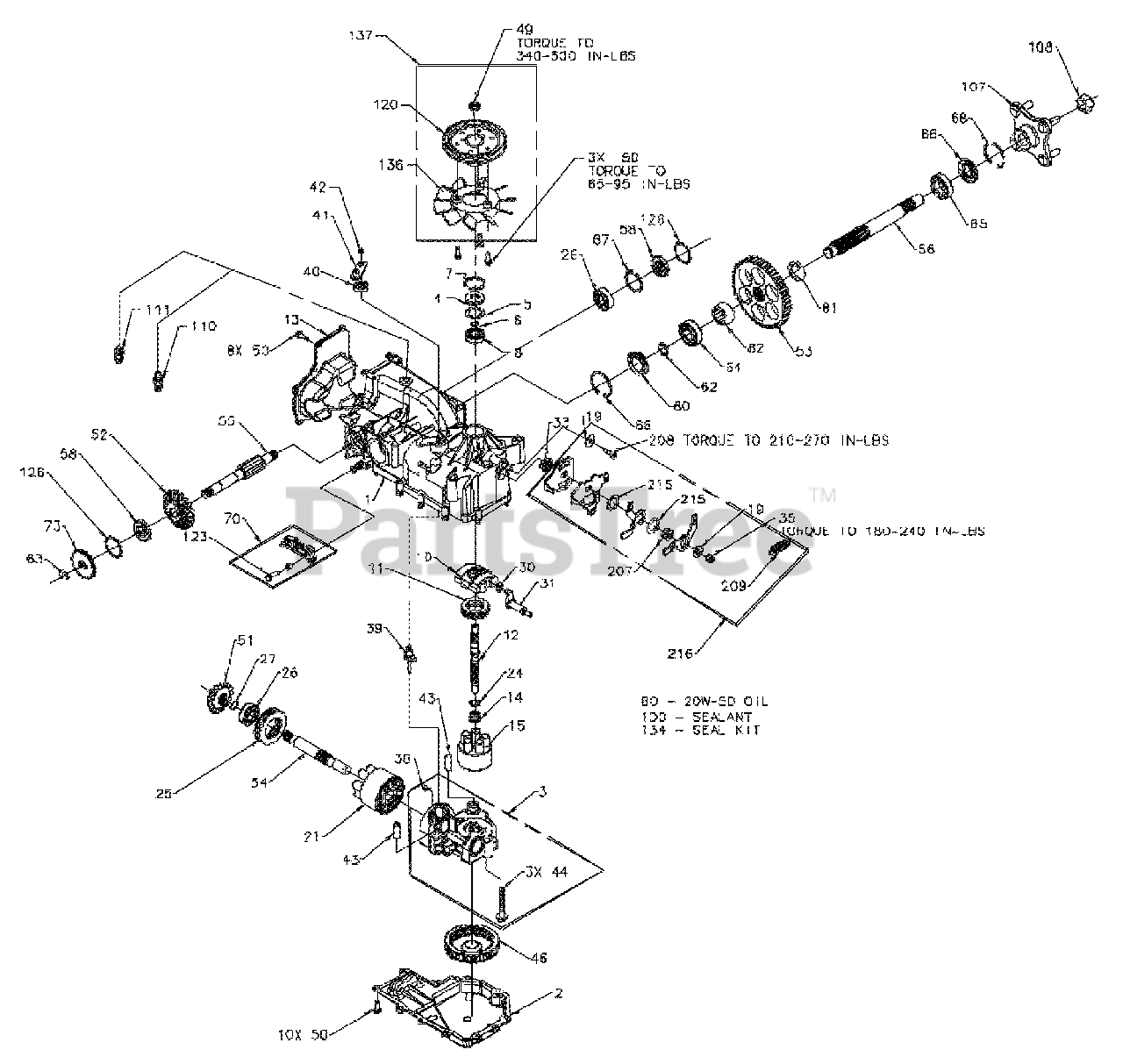

915023 (EZR 2048) - Ariens 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) Hydrostatic Transaxle - Left (020, 021, 022, 023, 308-S/N 000100 & Up & 013-S/N 010500 & Up) Parts Diagram

48" Zero-Turn Mower, 20hp Briggs & Stratton

Hydrostatic Transaxle - Left (020, 021, 022, 023, 308-S/N 000100 & Up & 013-S/N 010500 & Up) Parts Diagram

  • Title

1

Kit, Housing - Main

Note: Hydro-Gear p/n 51185

$

$

Not available

3

Ariens 21543917

KIT, C-SECTION

Note: Hydro-Gear p/n 70679

$

$

Not available

4

Ariens 08609800

ACTUATOR, BYPASS

Note: Hydro-Gear p/n 9008000-0128

$

$

Not available

5

Ariens 21543964

WASHER .98X1.37X.04

Note: Hydro-Gear p/n 2003018

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 08613300

RING, WIRE RETAINING

Note: Hydro-Gear p/n 2003016

$4.99

$

Usually ships in 4-12 days

0

7

Ariens 08608800

RING. RETAINING

Note: Hydro-Gear p/n 2003052

$

$

Not available

8

Ariens 08613200

BEARING, SHAFT BALL

Note: Hydro-Gear p/n 2003043

$

$

Not available

10

Ariens 08609000

SWASHPLATE. VARIABLE

Note: Hydro-Gear p/n 2003087

$

$

Not available

11

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$18.99

$

Usually ships in 4-12 days

0

12

Ariens 21543719

SHAFT, INPUT

Note: Hydro-Gear p/n 50005

$96.99

$

Usually ships in 4-12 days

0

13

Ariens 21543984

COVER, END IZT

Note: Hydro-Gear p/n 50891RM

$

$

Not available

14

Ariens 08621500

SPRING. BLOCK

Note: Hydro-Gear p/n 2003014

$3.49

$

In Stock, Qty 5

0

18

Ariens 21543889

KIT, 10 CC BLOCK

Note: Hydro-Gear p/n 70331

$103.99

$

Usually ships in 4-12 days

0

19

Ariens 08611200

WASHER

Note: Hydro-Gear p/n 44130

$5.49

$

Usually ships in 4-12 days

0

21

21 cc Cylinder Block Assembly

Note: Hydro-Gear p/n 70082

$

$

Not available

24

Ariens 08609400

WASHER. THRUST .59 X .79 X .04

Note: Hydro-Gear p/n 2003017

$3.49

$

Usually ships in 4-12 days

0

25

Ariens 21543747

BRG, THRUST BALL 42X68X16

Note: Hydro-Gear p/n 50552

$

$

Not available

26

Ariens 21543738

BRG, BALL 17X40X12

Note: Hydro-Gear p/n 50315

$12.99

$

Usually ships in 4-12 days

0

27

Ariens 21543960

RING, RET WIRE .561 ID

Note: Hydro-Gear p/n 2000022

$3.49

$

In Stock, only 2 left!

0

30

Ariens 08610700

GUIDE. SLOT

Note: Hydro-Gear p/n 2000015

$

$

Not available

31

Ariens 08610800

ARM. TRUNNION TAPERED SQUARE

Note: Hydro-Gear p/n 50807

$59.99

$

Usually ships in 4-12 days

0

33

Ariens 08609000

SWASHPLATE. VARIABLE

Note: Hydro-Gear p/n 9008000-0126

$

$

Not available

35

Ariens 21543740

NUT, HEX 5/16-24 NYLON

Note: Hydro-Gear p/n 50317

$

$

Not available

38

Ariens 21543918

KIT, BYPASS PLATE

Note: Hydro-Gear p/n 70680

$

$

Not available

39

Ariens 08609800

ACTUATOR, BYPASS

Note: Hydro-Gear p/n 2003555

$

$

Not available

40

Ariens 08613800

SEAL, LIP

Note: Hydro-Gear p/n 45074

$

$

Not available

41

Ariens 08611100

ARM. BYPASS

Note: Hydro-Gear p/n 50270

$

$

Not available

42

Ariens 08611400

RING. RETAINING1

Note: Hydro-Gear p/n 44870

$3.49

$

Usually ships in 4-12 days

0

43

Ariens 21543718

PIN-HOLLOW .39X.5X1.

Note: Hydro-Gear p/n 50002

$

$

Not available

44

Ariens 21543721

HFHCS 3/8-24X2.5 (PATCH)

Note: Hydro-Gear p/n 50016

$

$

Not available

46

Ariens 21543779

FILTER

Note: Hydro-Gear p/n 50990

$68.99

$

Usually ships in 4-12 days

0

49

Nut, Hex Lock .50-20 with Nylon Insert

Note: Hydro-Gear p/n 51244

$

$

Not available

50

Ariens 21543759

HFHCS 1/4-20X.75

Note: Hydro-Gear p/n 50752

$3.49

$

Usually ships in 4-12 days

0

51

Ariens 21543754

GEAR, BEVEL 14T

Note: Hydro-Gear p/n 50744

$

$

Not available

52

Ariens 21543755

GEAR, BEVEL 19T

Note: Hydro-Gear p/n 50745

$

$

Not available

53

Ariens 21543756

GEAR, SPUR 53T

Note: Hydro-Gear p/n 50746

$

$

Not available

54

Ariens 21543761

SHAFT, MOTOR

Note: Hydro-Gear p/n 50757

$69.99

$

Usually ships in 4-12 days

0

55

Ariens 21543827

SHAFT, BRAKE

Note: Hydro-Gear p/n 51298

$

$

Not available

56

Ariens 21543757

AXLE, 1.0X12.3

Note: Hydro-Gear p/n 50748

$197.99

$

In Stock, only 1 left!

0

57

Ariens 21543816

SEAL, LIP 17X40X7

Note: Hydro-Gear p/n 51161

$8.49

$

Usually ships in 4-12 days

0

60

Ariens 21543780

PLUG, SEAL 1.86

Note: Hydro-Gear p/n 50995

$9.99

$

Usually ships in 4-12 days

0

62

Ariens 21543762

RING, RET .75 EXT

Note: Hydro-Gear p/n 50759

$

$

Not available

63

Ariens 21543800

RING, RET .440 EXT

Note: Hydro-Gear p/n 51109

$3.49

$

Usually ships in 4-12 days

0

64

Ariens 21543752

BRG, BALL 25X47X12

Note: Hydro-Gear p/n 50740

$18.99

$

In Stock, only 2 left!

0

65

Ariens 21543752

BRG, BALL 25X47X12

Note: Hydro-Gear p/n 50740

$18.99

$

In Stock, only 2 left!

0

66

Ariens 21543758

SEAL, LIP 25X47X7

Note: Hydro-Gear p/n 50751

$8.49

$

Usually ships in 4-12 days

0

67

Ariens 21543741

RING, RET 1.56 INT

Note: Hydro-Gear p/n 50329

$4.49

$

Usually ships in 4-12 days

0

68

Ariens 21543763

RING, RET 1.87 INT

Note: Hydro-Gear p/n 50760

$4.99

$

Usually ships in 4-12 days

0

70

Ariens 00372000

BRAKE ARM,RH IZT
(Superseded to 51514200)

Note: Hydro-Gear p/n 70391

$59.99

$

In Stock, Qty 5

0

73

Brake Disc

Note: Hydro-Gear p/n 50314

$

$

Not available

80

20W - 50 Oil

Note: N/A

$

$

Not available

81

Axle Bushing

Note: Hydro-Gear p/n 50942-2

$

$

Not available

82

Axle Bushing

Note: Hydro-Gear p/n 50942-1

$

$

Not available

100

Ariens 21543771

SEALANT TUBE 10.1OZ.

Note: Hydro-Gear p/n 50928

$108.99

$

Usually ships in 4-12 days

0

107

Hub Assembly

Note: Hydro-Gear p/n 70314

$

$

Not available

108

Nut, Hex .75-16

Note: Hydro-Gear p/n 50863

$

$

Not available

110

Ariens 07026300

FTG-STR .50 O-RING

Note: Hydro-Gear p/n 70110

$14.99

$

In Stock, only 1 left!

0

111

Ariens 07026400

CAP-VENT .50

Note: Hydro-Gear p/n 70109

$9.99

$

In Stock, only 2 left!

0

120

Kit, Seal

Note: Hydro-Gear p/n 50302

$

$

Not available

123

Ariens 21543791

HFHCS 1/4-20X.875

Note: Hydro-Gear p/n 51076

$

$

Not available

126

Ariens 21543828

RING, RET 1.43"

Note: Hydro-Gear p/n 51316

$

$

Not available

134

Ariens 21543905

KIT, SEAL

Note: Hydro-Gear p/n 70553

$64.99

$

Usually ships in 4-12 days

0

137

Kit, Fan /Pulley

Note: Hydro-Gear p/n 01569100

$

$

Not available

207

Spacer, RTN

Note: Hydro-Gear p/n 51396

$

$

Not available

208

Ariens 21543832

SHCS 5/16-24X.75

Note: Hydro-Gear p/n 51400

$

$

Not available

209

Spring, Extension

Note: Hydro-Gear p/n 51399

$

$

Not available

215

Ariens 21543834

WASHER

Note: Hydro-Gear p/n 51408

$

$

Not available

216

Ariens 21543910

KIT, RTN SCISSOR

Note: Hydro-Gear p/n 70609

$

$

Not available
