915042 (ZT 1540) - Gravely 40" Zero-Turn Mower, 15hp Kohler (SN: 000101 - 004999) Frame, Hood, Footrest, Casters And Tires Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

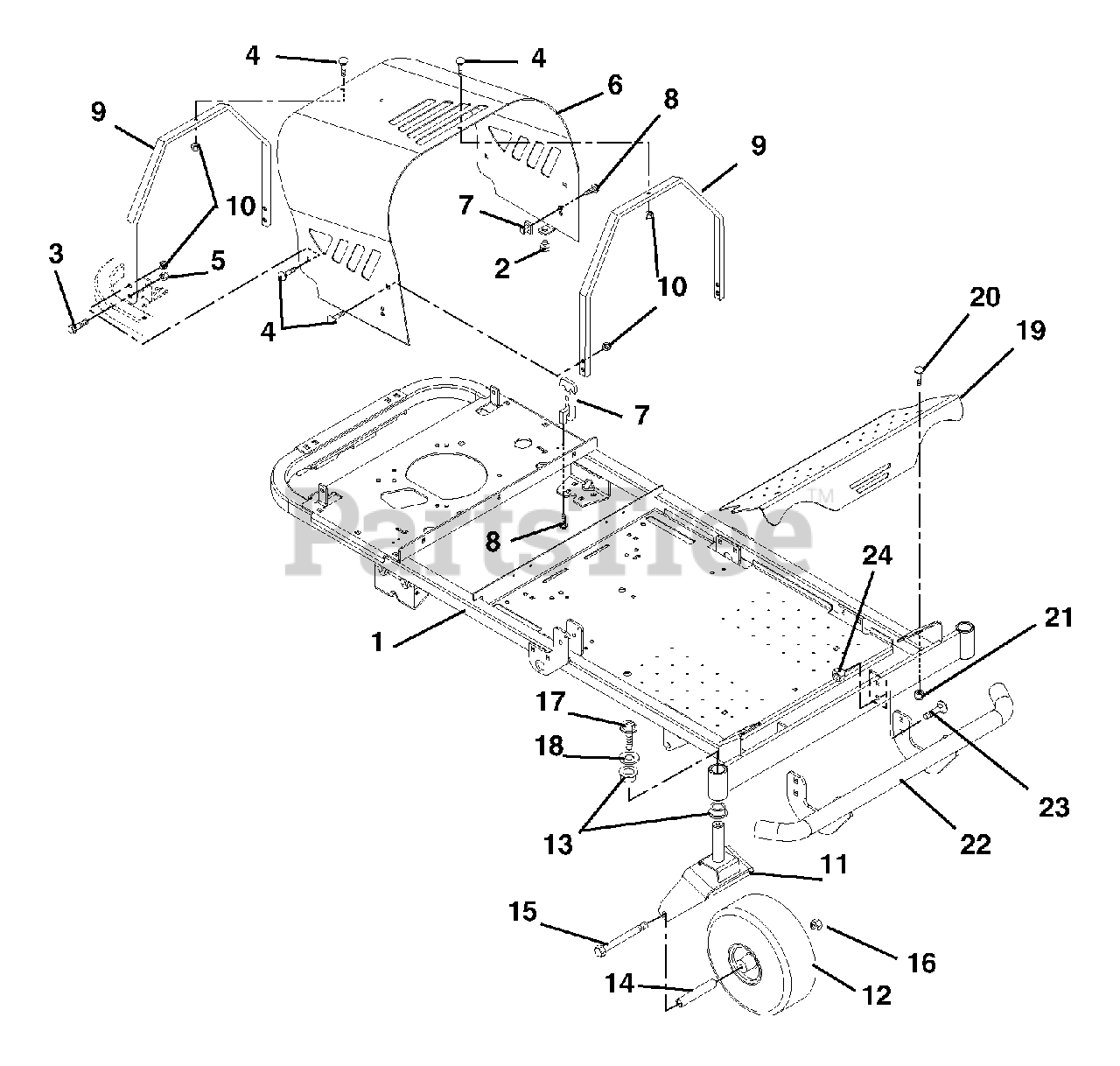

Frame, Hood, Footrest, Casters And Tires Parts Diagram

  • Title

1

Gravely 00182951

WMT, FIXED AXLE FRAME

$

$

Not available

2

Gravely 07516000

BUTTON BUMPER

$1.99

$

In Stock, Qty 10

0

3

Gravely 07056700

BOLT-SHLDR .375-16X.150

$5.49

$

In Stock, only 2 left!

0

4

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 01605053

HOOD, ZOOM

$

$

Not available

7

Gravely 09079500

LATCH, RUBBER

$18.99

$

In Stock, Qty 14

0

8

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 01605151

BRACE, HOOD

$114.99

$

Usually ships in 4-12 days

0

10

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 01547051

FORK - CASTER

$162.99

$

In Stock, only 1 left!

0

12

Gravely 01588100

ASSY-TIRE 4 X 11 - 4 PLY
(Superseded to 07100124)

$86.99

$

In Stock, Qty 20+

0

13

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$8.49

$

In Stock, Qty 20+

0

14

Gravely 09105200

BUSH.,CASTER FORK

$42.99

$

In Stock, Qty 5

0

15

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$8.49

$

In Stock, Qty 20+

0

16

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 07417100

SCR-TAP .38-16X1.25 HWH TR BZC
(Superseded to 07414700)

$3.99

$

In Stock, Qty 15

0

18

Gravely 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$4.99

$

In Stock, Qty 20+

0

19

Gravely 00164253

FOOT REST

$

$

Not available

20

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

21

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 01589551

BUMPER-ZOOM

$

$

Not available

23

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

24

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0
