915052 (Mini-ZT 1434) - Gravely 34" Zero-Turn Mower, 14hp Briggs & Stratton (SN: 000101 - 004999) Frame, Hood, Footrest, Casters And Tires Parts Diagram

34" Zero-Turn Mower, 14hp Briggs & Stratton

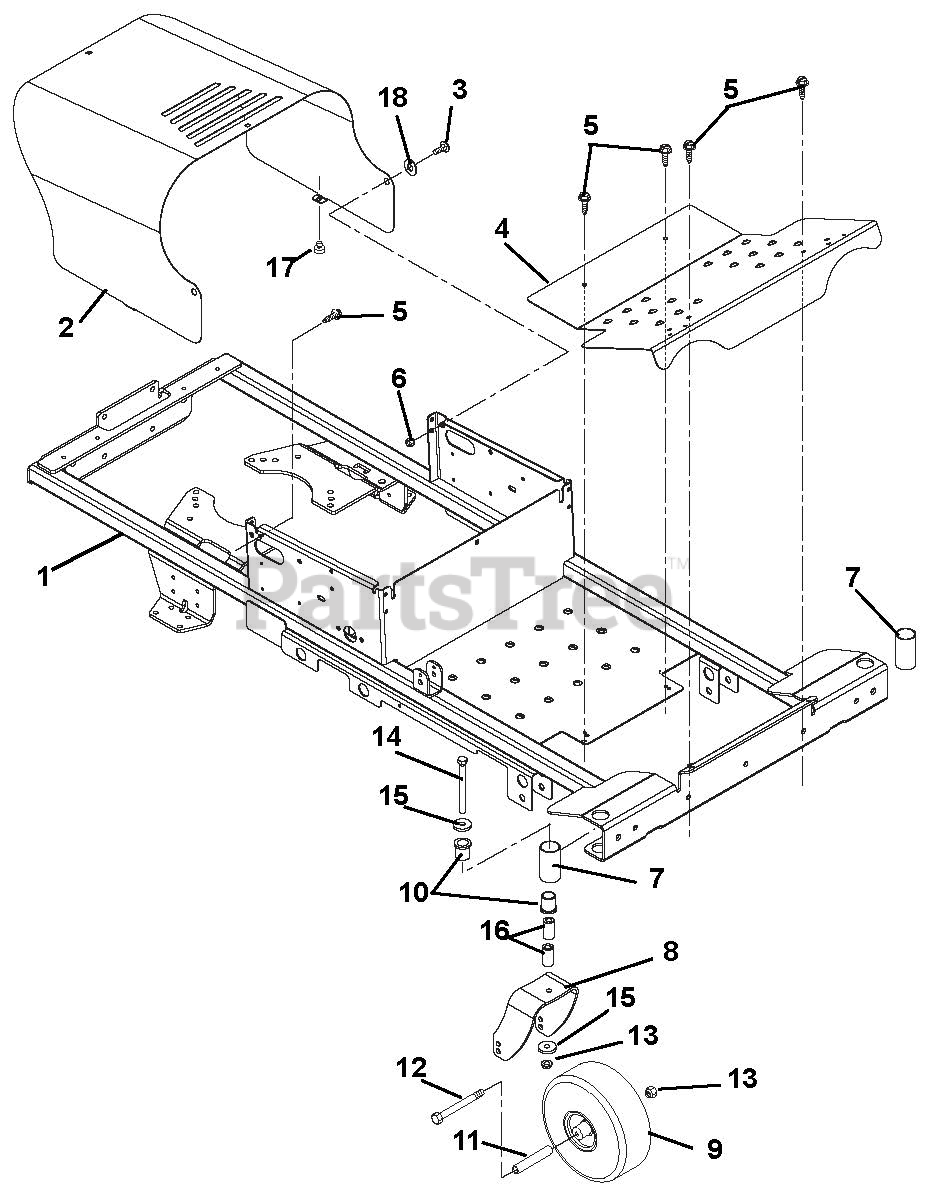

Frame, Hood, Footrest, Casters And Tires Parts Diagram

  • Title

1

Gravely 00278851

WMT,MZ FRAME

$

$

Not available

2

Gravely 00288653

GRAVELY ENGINE COVER

$

$

Not available

3

Gravely 07056700

BOLT-SHLDR .375-16X.150

$5.49

$

In Stock, only 2 left!

0

4

Gravely 00279753

GRAVELY FOOTREST,MZ/MZT
(Superseded to 00460553)

$

$

Not available

5

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 00354700

SLEEVE,CASTER

$56.99

$

In Stock, only 3 left!

0

8

Gravely 00363351

FORK,CASTER
(Superseded to 03368551)

$77.99

$

In Stock, Qty 7

0

9

Gravely 01588100

ASSY-TIRE 4 X 11 - 4 PLY
(Superseded to 07100124)

$86.99

$

In Stock, Qty 20+

0

10

Gravely 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$8.49

$

In Stock, Qty 20+

0

11

Gravely 00278500

SPACER, ROLLED WHEEL

$17.99

$

In Stock, Qty 20+

0

12

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$8.49

$

In Stock, Qty 20+

0

13

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05975400

BLT-HEX .50-13X5.00 GR8 YWZC

$9.99

$

In Stock, Qty 6

0

15

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.99

$

In Stock, Qty 17

0

16

Gravely 00363100

SPACER, CASTER .50X1.00X1.84

$8.49

$

In Stock, Qty 20+

0

17

Gravely 07516000

BUTTON BUMPER

$1.99

$

In Stock, Qty 11

0

18

Gravely 06443300

WSHR-FL-NYL .518X1.000X.080

$1.49

$

In Stock, Qty 20+

0
