915101 (1634) - Ariens Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) 34" Mower Deck, Belt, Idlers And Blades Parts Diagram

Zoom 34" Zero-Turn Mower, 16hp Briggs & Stratton

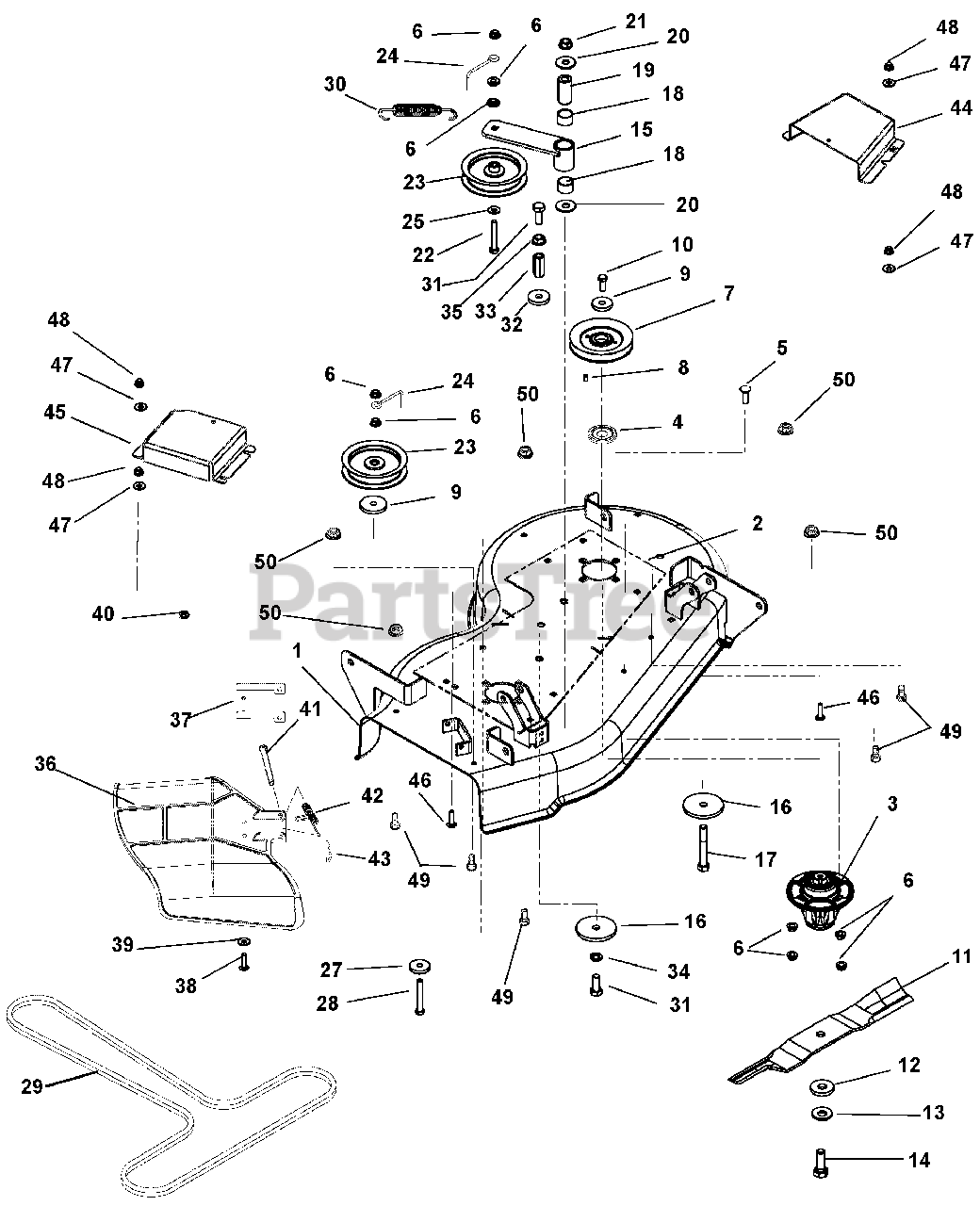

34" Mower Deck, Belt, Idlers And Blades Parts Diagram

  • Title

1

Ariens 00609859

WMT, 34" STAMPED DECK (ARIENS)
(Superseded to 51529800)

$596.99

$

Usually ships in 4-12 days

0

2

Ariens 00619859

DOUBLER PLATE, 34" DECK

$98.99

$

Usually ships in 4-12 days

0

3

Ariens 61543800

SPINDLE ASSEMBLY
(Superseded to 51510000)

$233.99

$

In Stock, Qty 20+

0

4

Ariens 00587400

DUST CAP

$8.49

$

In Stock, Qty 12

0

5

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

6

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 01610300

SHEAVE, 4.75 DIA A-SECTION
(Superseded to 07330267)

$53.99

$

In Stock, Qty 14

0

8

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

10

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 00651800

BLADE, 17.38X2.5X.204

$26.99

$

In Stock, only 2 left!

0

12

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

13

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

14

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 00652600

WELDMENT, IDLER ARM

$47.99

$

In Stock, only 2 left!

0

16

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 17

0

17

Ariens 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

18

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$11.99

$

In Stock, Qty 20+

0

19

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

20

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

21

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

23

Ariens 07300006

IDLER, FLAT .38X4.00X1.06
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

24

Ariens 00391900

BELT FINGER

$21.99

$

In Stock, Qty 6

0

25

Ariens 05515800

BSHG-FLG .406X.88X.270X.140

$9.99

$

In Stock, Qty 9

0

26

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

27

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

28

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

29

Ariens 07200116

V-BELT, HA-WRAPPED

$66.99

$

In Stock, Qty 14

0

30

Ariens 08300020

EXTENSION SPRING

$28.99

$

In Stock, Qty 15

0

31

Ariens 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 3 left!

0

32

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 17

0

33

Ariens 06500013

NUT, COUPLING 1/2-13X1.75 YWZC

$3.99

$

In Stock, only 2 left!

0

34

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

36

Ariens 00499900

MOLDED CHUTE, ZOOM
(Superseded to 03994300)

$58.99

$

In Stock, Qty 7

0

37

Ariens 00662659

CHUTE REINFORCEMENT

$25.99

$

In Stock, only 1 left!

0

38

Ariens 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$4.99

$

In Stock, Qty 10

0

39

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

40

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 06800002

PIN, 5/16 X 3.88"

$9.99

$

In Stock, only 2 left!

0

42

Ariens 01258100

SPRING, TORSION

$9.99

$

In Stock, Qty 6

0

43

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 00655859

BELT COVER, 34" LEFT

$30.99

$

Usually ships in 4-12 days

0

45

Ariens 00655959

BELT COVER, RIGHT

$40.99

$

Usually ships in 4-12 days

0

46

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.99

$

In Stock, Qty 7

0

47

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

48

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

49

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

50

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0
